Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

CLUTCH

TRANSMISSION FOR SUZUKI GLADIUS 650 2010

GEAR SHIFTING ASSY

Item numbers

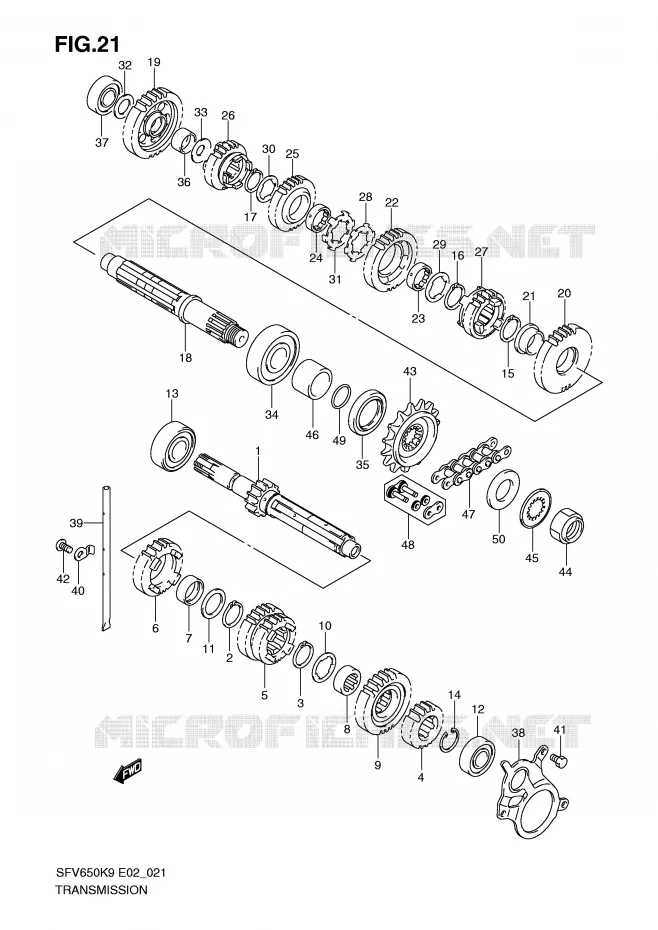

TRANSMISSION Suzuki MOTO 650 GLADIUS 2010 SFV650AL0(E2)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
1
SHAFT, COUNTER
SHAFT, COUNTER (NT:13)

24120-27G00-000   2412027G00000

2412027G00000

Unit Price

2
CIRCLIP<br />CIRCLIP, 5TH DRIVE GEAR
CIRCLIP
CIRCLIP, 5TH DRIVE GEAR

24127-19F00-000   2412719F00000

2412719F00000

Unit Price

3
CIRCLIP<br />CIRCLIP, 6TH DRIVE GEAR
CIRCLIP
CIRCLIP, 6TH DRIVE GEAR

24127-19F00-000   2412719F00000

2412719F00000

Unit Price

4
GEAR, 2ND DRIVE
GEAR, 2ND DRIVE (NT:18)

24221-20F10-000   2422120F10000

2422120F10000

Unit Price

5
GEAR, 3RD & 4TH DRIVE
GEAR, 3RD & 4TH DRIVE

24231-20F10-000   2423120F10000

2423120F10000

Unit Price

6
GEAR, 5TH DRIVE (NT:26)
GEAR, 5TH DRIVE (NT:26)

24251-20F02-000   2425120F02000

2425120F02000

Unit Price

7
BUSH<br />BUSH, 5TH DRIVE GEAR
BUSH
BUSH, 5TH DRIVE GEAR

24252-19F00-000   2425219F00000

2425219F00000

Unit Price

8
BUSH, 6TH DRIVE GEAR
BUSH, 6TH DRIVE GEAR

24252-38A10-000   2425238A10000

2425238A10000

Unit Price

9
GEAR, 6TH DRIVE (NT:27)

24261-20F00-000   2426120F00000

2426120F00000

Unit Price

10
WASHER,LOCK<br />WASHER, 6TH DRIVE GEAR
WASHER, LOCK
WASHER, 6TH DRIVE GEAR

09167-25021-000   0916725021000

0916725021000

Unit Price

11
WASHER,5TH DRIVE GEA<br />WASHER, 5TH DRIVE GEAR
WASHER, 5TH DRIVE GEA
WASHER, 5TH DRIVE GEAR

09181-25167-000   0918125167000

0918125167000

Unit Price

12
BEARING,17X40X12<br />BEARING, CNTR SHAFT, L
BEARING, 17X40X12
BEARING, CNTR SHAFT, L

09262-17046-000   0926217046000

0926217046000

Unit Price

13
BEARING,20X52X15<br />BEARING, CNTR SHAFT, R
BEARING, 20X52X15
BEARING, CNTR SHAFT, R

09262-20145-000   0926220145000

0926220145000

Unit Price

14
CIRCLIP<br />RING, 2ND DRIVE GEAR
CIRCLIP
RING, 2ND DRIVE GEAR

09380-25012-000   0938025012000

0938025012000

Unit Price

15
CIRCLIP<br />CIRCLIP, 2ND DRIVEN GEAR
CIRCLIP
CIRCLIP, 2ND DRIVEN GEAR

24127-19F00-000   2412719F00000

2412719F00000

Unit Price

16
CIRCLIP<br />CIRCLIP, 3RD DRIVEN GEAR
CIRCLIP
CIRCLIP, 3RD DRIVEN GEAR

24127-19F00-000   2412719F00000

2412719F00000

Unit Price

17
CIRCLIP<br />CIRCLIP, 4TH DRIVEN GEAR
CIRCLIP
CIRCLIP, 4TH DRIVEN GEAR

24127-19F00-000   2412719F00000

2412719F00000

Unit Price

18
SHAFT, DRIVE

24130-44H00-000   2413044H00000

2413044H00000
Not available
19
GEAR, 1ST DRIVEN

24311-44H00-000   2431144H00000

2431144H00000

Unit Price

20
GEAR, 2ND DRIVEN

24321-44H00-000   2432144H00000

2432144H00000
Not available
21
BUSH<br />BUSH, 2ND DRIVEN GEAR
BUSH
BUSH, 2ND DRIVEN GEAR

24322-19F00-000   2432219F00000

2432219F00000

Unit Price

22
GEAR, 3RD DRIVEN

24331-44H00-000   2433144H00000

2433144H00000

Unit Price

23
BUSH, DRIVEN GEAR
BUSH, 3RD DRIVEN GEAR

24332-24510-000   2433224510000

2433224510000

Unit Price

24
BUSH, DRIVEN GEAR
BUSH, 4TH DRIVEN GEAR

24332-24510-000   2433224510000

2433224510000

Unit Price

25
GEAR, 4TH DRIVEN

24341-44H00-000   2434144H00000

2434144H00000

Unit Price

26
GEAR, 5TH DRIVEN

24351-44H00-000   2435144H00000

2435144H00000
Not available
27
GEAR, 6TH DRIVEN

24361-44H00-000   2436144H00000

2436144H00000

Unit Price

28
LOCK WASHER<br />WASHER, 3RD DRIVEN GEAR
LOCK WASHER
WASHER, 3RD DRIVEN GEAR

09167-25013-000   0916725013000

0916725013000

Unit Price

29
WASHER,LOCK<br />WASHER, 3RD DRIVEN GEAR
WASHER, LOCK
WASHER, 3RD DRIVEN GEAR

09167-25021-000   0916725021000

0916725021000

Unit Price

30
WASHER,LOCK<br />WASHER, 4TH DRIVEN GEAR
WASHER, LOCK
WASHER, 4TH DRIVEN GEAR

09167-25021-000   0916725021000

0916725021000

Unit Price

31
LOCK WASHER<br />WASHER, 3RD DRIVEN GEAR
LOCK WASHER
WASHER, 3RD DRIVEN GEAR

09169-25001-000   0916925001000

0916925001000

Unit Price

32
WASHER<br />WASHER, 1ST DRIVEN GEAR
WASHER
WASHER, 1ST DRIVEN GEAR

09181-17195-000   0918117195000

0918117195000

Unit Price

33
SHIM<br />WASHER, 1ST DRIVEN GEAR
SHIM
WASHER, 1ST DRIVEN GEAR

09181-20195-000   0918120195000

0918120195000

Unit Price

34
BEARING,25X62X17<br />BEARING, DRIVE SHAFT, L
BEARING, 25X62X17
BEARING, DRIVE SHAFT, L

09262-25125-000   0926225125000

0926225125000

Unit Price

35
SEAL, OIL(36X50X6)
SEAL, DRIVE SHAFT OIL

09283-36011-000   0928336011000

0928336011000

Unit Price

36
BUSH<br />BUSH, 1ST DRIVEN GEAR
BUSH
BUSH, 1ST DRIVEN GEAR

09300-20032-000   0930020032000

0930020032000

Unit Price

37
BEARING(17X40X12)<br />BEARING, DRIVE SHAFT, R
BEARING(17X40X12)
BEARING, DRIVE SHAFT, R

09262-17023-000   0926217023000

0926217023000

Unit Price

38
RETAINER, DRIVE SHAFT OIL SEAL
RETAINER, DRIVE SHAFT OIL SEAL

24751-19F10-000   2475119F10000

2475119F10000

Unit Price

39
GUIDE, T/M OIL
GUIDE, T/M OIL

24881-12C20-000   2488112C20000

2488112C20000

Unit Price

40
RETAINER,TRANSMISSION OIL<br />RETAINER, T/M OIL
RETAINER, TRANSMISSION OIL
RETAINER, T/M OIL

24885-12C10-000   2488512C10000

2488512C10000

Unit Price

41
BOLT<br />BOLT, DR SFT OIL SEAL R
BOLT
BOLT, DR SFT OIL SEAL R

01500-0612A-000   015000612A000

015000612A000

Unit Price

42
SCREW

02112-0612A-000  

02112-0612B-000
 021120612A000

Unit Price

43
SPROCKET, ENGINE(NT:15)

27510-02D10-000  

27510-02D11-000
 2751002D10000

Unit Price

44
NUT<br />NUT, ENGINE SPROCKET
NUT
NUT, ENGINE SPROCKET

09159-20004-000   0915920004000

0915920004000

Unit Price

45
WASHER
WASHER, ENGINE SPROCKET

09167-25027-000   0916725027000

0916725027000

Unit Price

46
SPACER, ENGINE SPROCKET

27531-19F10-000   2753119F10000

2753119F10000

Unit Price

47
CHAIN, DRIVE(DID 520VM2)
CHAIN ASSY, DRIVE

27600-44H00-112   2760044H00112

2760044H00112

Unit Price

48
JOINT SET, CHAIN(DID)
JOINT SET, CHAIN

27620-44H00-000   2762044H00000

2762044H00000

Unit Price

49
O-RING<br />O-RING, ENGINE SPROCKET
O-RING
O-RING, ENGINE SPROCKET

09280-24010-000   0928024010000

0928024010000

Unit Price

50
WASHER
WASHER, ENGINE SPROCKET

08211-25442-000   0821125442000

0821125442000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
