Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

HEADLIGHT

INDICATORS FOR SUZUKI GLADIUS 650 2014

TAIL LIGHT ASSY

Item numbers

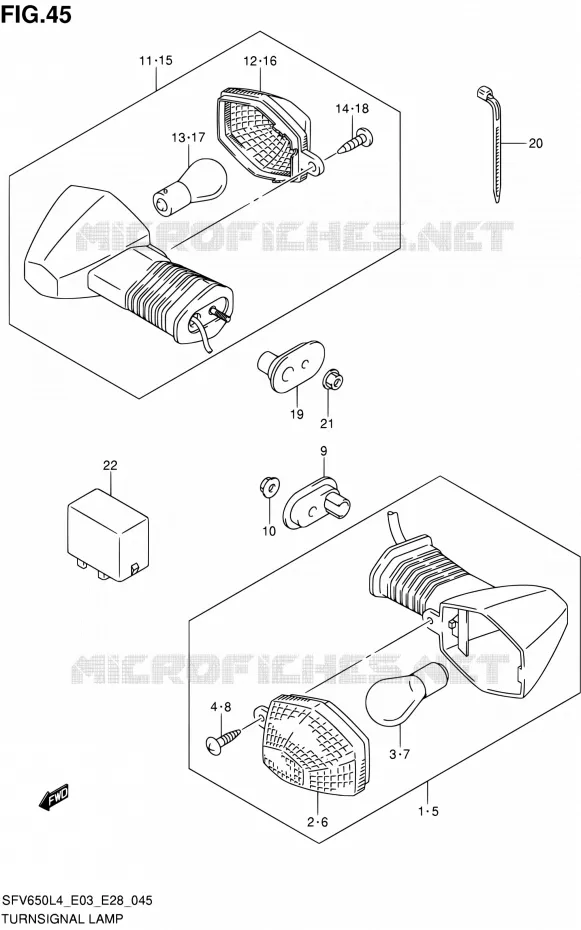

INDICATORS Suzuki MOTO 650 GLADIUS 2014 SFV650A L4 (E03,E28,E33)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
1
LAMP ASSY, FR TURN SIGNAL, R
LAMP ASSY, FRONT TURNSIGNAL

35601-29FB0-000   3560129FB0000

3560129FB0000

Unit Price

2
.LENS

35612-29FA0-000   3561229FA0000

3561229FA0000

Unit Price

3
BULB(12V55W/H7/PX26D/PHILIPS)
.BULB (12V, 21W)

09471-12186-000   0947112186000

0947112186000

Unit Price

4
.SCREW

03241-0416B-000   032410416B000

032410416B000

Unit Price

5
LAMP ASSY, FR TURN SIGNAL, L
LAMP ASSY, FRONT TURNSIGNAL

35602-29FB0-000   3560229FB0000

3560229FB0000

Unit Price

6
.LENS

35632-29FA0-000   3563229FA0000

3563229FA0000

Unit Price

7
BULB(12V55W/H7/PX26D/PHILIPS)
.BULB (12V, 21W)

09471-12186-000   0947112186000

0947112186000

Unit Price

8
.SCREW

03241-0416B-000   032410416B000

032410416B000

Unit Price

9
PLATE, FR TURNSIGNAL
PLATE, FRONT TURNSIGNAL

35629-31F60-000   3562931F60000

3562931F60000

Unit Price

10
NUT
NUT

08316-1005A-000   083161005A000

083161005A000

Unit Price

11
LAMP ASSY, RR TURNSIGNAL, R
LAMP ASSY, REAR TURNSIGNAL RH

35603-29FA0-000   3560329FA0000

3560329FA0000

Unit Price

12
.LENS

35632-29FA0-000   3563229FA0000

3563229FA0000

Unit Price

13
BULB(12V55W/H7/PX26D/PHILIPS)
.BULB (12V, 21W)

09471-12186-000   0947112186000

0947112186000

Unit Price

14
.SCREW
.SCREW

03242-0416B-000   032420416B000

032420416B000

Unit Price

15
LAMP ASSY, RR TURNSIGNAL, L
LAMP ASSY, REAR TURNSIGNAL LH

35604-29FA0-000   3560429FA0000

3560429FA0000

Unit Price

16
.LENS

35612-29FA0-000   3561229FA0000

3561229FA0000

Unit Price

17
BULB(12V55W/H7/PX26D/PHILIPS)
.BULB (12V, 21W)

09471-12186-000   0947112186000

0947112186000

Unit Price

18
.SCREW
.SCREW

03242-0416B-000   032420416B000

032420416B000

Unit Price

19
PLATE, FR TURNSIGNAL
PLATE, REAR TURNSIGNAL

35629-31F60-000   3562931F60000

3562931F60000

Unit Price

20
CLAMP,WIRING HARNESS<br />CLAMP (L:165)
CLAMP, WIRING HARNESS
CLAMP (L:165)

09407-18402-000   0940718402000

0940718402000

Unit Price

21
NUT
NUT

08316-1005A-000   083161005A000

083161005A000

Unit Price

22
RELAY ASSY,TURNSIGNAL LAMP
RELAY ASSY, TURNSIGNAL LAMP

38610-03F00-000  

38610-03F01-000
 3861003F00000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
