Finish line

Parts catalogue

Parts diagram

CAM SHAFT - VALVE

TIMING FOR SUZUKI GS 650 1983

CARBURETOR

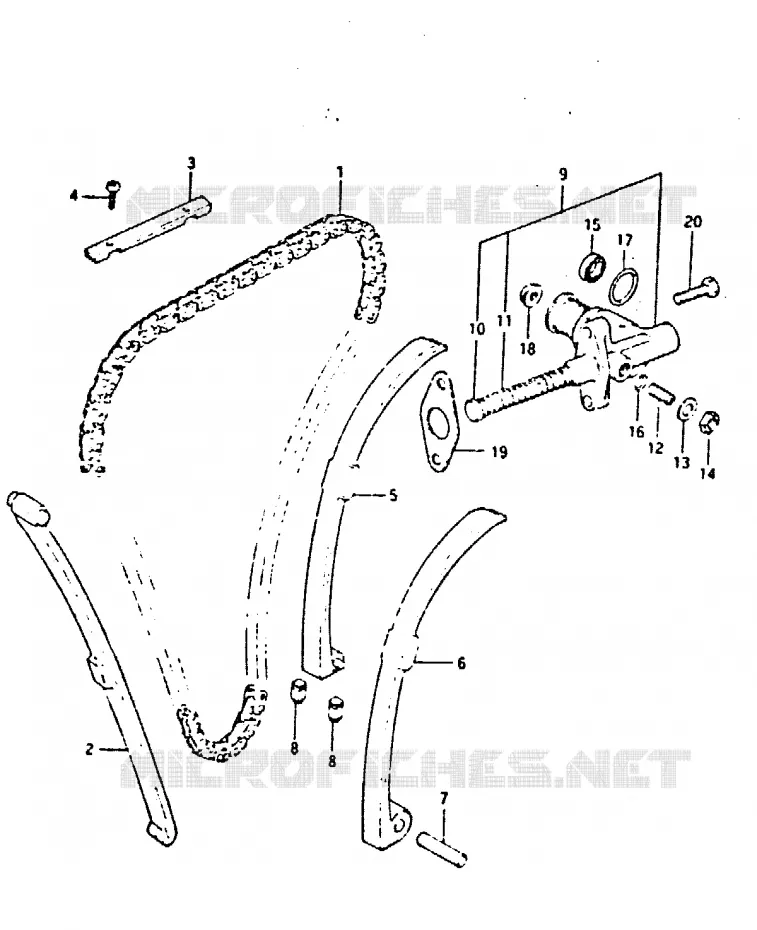

TIMING Suzuki MOTO 650 GS 1983 GS650GTD
1
CHAIN, CAM SHAFT DRIVE (120L)

12760-45040-000   1276045040000

1276045040000

Unit Price

2
GUIDE, CAM CHAIN NO.1

12771-34200-000   1277134200000

1277134200000
Not available
3
DISCONTINUE

12782-49140-000  

1278249140000
Not available
4
.SCREW

02112-05108-000   0211205108000

0211205108000
Not available
5
TENSIONER, CAM CHAIN

12810-34201-000   1281034201000

1281034201000
Not available
6
TENSIONER, CAM CHAIN

12811-34210-000   1281134210000

1281134210000
Not available
7
PIN

09202-10005-000   0920210005000

0920210005000
Not available
8
CUSHION,CAM CHAIN TENSIONER<br />CUSHION
CUSHION, CAM CHAIN TENSIONER
CUSHION

12814-34200-000   1281434200000

1281434200000

Unit Price

8
CUSHION, CAM CHAIN TENSIONER
CUSHION

12814-44101-000   1281444101000

1281444101000

Unit Price

9
DISCONTINUE

12830-47011-000  

1283047011000
Not available
10
DISCONTINUE
PUSH ROD

12833-47001-000   1283347001000

1283347001000
Not available
11
SPRING

09440-12017-000   0944012017000

0944012017000

Unit Price

12
SCREW

12838-45010-000  

12838-45001-000
 1283845010000

Unit Price

13
.GASKET

08322-11085-000   0832211085000

0832211085000
Not available
14
.NUT

08310-11085-000   0831011085000

0831011085000
Not available
15
OIL SEAL 10X16X4<br />OIL SEAL
OIL SEAL 10X16X4
OIL SEAL

09284-10006-000   0928410006000

0928410006000

Unit Price

16
O RING

09280-06005-000   0928006005000

0928006005000

Unit Price

17
O RING(D:2.4,ID:20.8)<br />O RING
O RING(D:2.4, ID:20.8)
O RING

09280-21013-000   0928021013000

0928021013000

Unit Price

18
NUT

08316-16065-000   0831616065000

0831616065000
Not available
19
GASKET, TENSIONER ADJUSTER

12837-31310-000  

12837-47010-000
 1283731310000

Unit Price

20
BOLT

09128-06022-000   0912806022000

0912806022000
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the TIMING of your Suzuki of GS. Let us know if you have any questions.
