CARBURETOR (MODEL X) FIG.14 (C-11) : MODEL Z

CARBURETOR (MODEL Z) FOR SUZUKI GS 650 1999

AIR FILTER

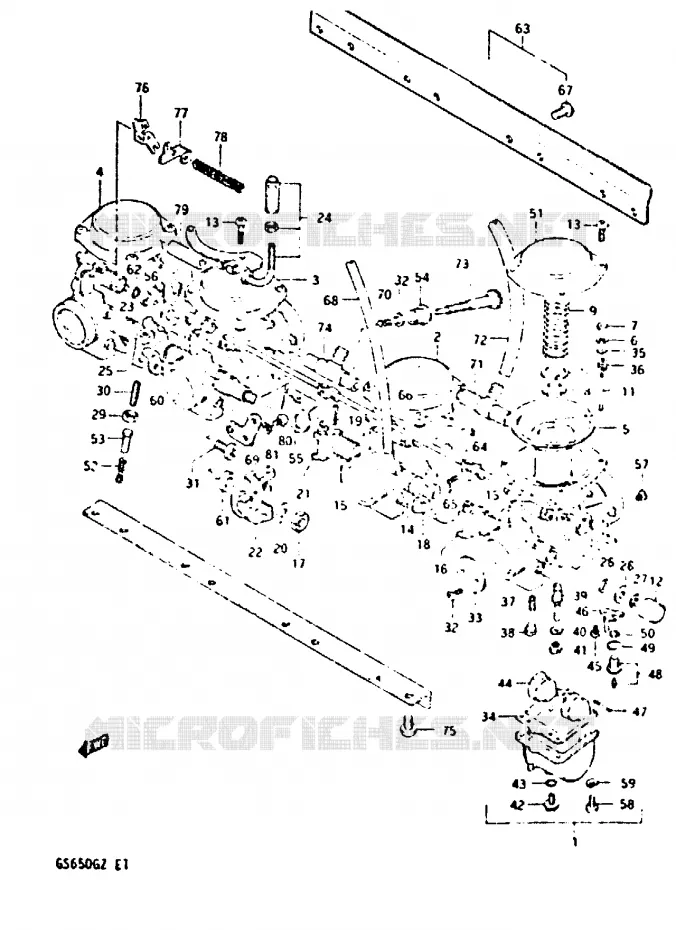

CARBURETOR (MODEL Z) Suzuki MOTO 650 GS 1999 GS650GX(X/Z)
1
CARBURETOR, LH

13201-34360-000   1320134360000

1320134360000
Not available
2
CARBURETOR, ML

13202-34360-000   1320234360000

1320234360000
Not available
3
CARBURETOR, MR

13203-34360-000   1320334360000

1320334360000
Not available
4
CARBURETOR, RH

13204-34360-000   1320434360000

1320434360000
Not available
5
DISCONTINUE
DIAPHRAGM

13500-45110-000  

1350045110000
Not available
6
CLIP,NEEDLE<br />E RING
CLIP, NEEDLE
E RING

13394-31210-000   1339431210000

1339431210000

Unit Price

7
RING
RING

13387-44030-000   1338744030000

1338744030000

Unit Price

8
DISCONTINUE<br />HOLDER, GUIDE
DISCONTINUE
HOLDER, GUIDE

13389-44030-000   1338944030000

1338944030000
Not available
9
DISCONTINUE
SPRING

13503-44080-000   1350344080000

1350344080000
Not available
10
DISCONTINUE<br />CLIP
DISCONTINUE
CLIP

13581-44030-000   1358144030000

1358144030000
Not available
11
NEEDLE, JET (5C47-3)

13383-34240-000   1338334240000

1338334240000
Not available
12
CAP
CAP

13578-47070-000   1357847070000

1357847070000

Unit Price

13
SCREW

02112-05168-000  

02112-05167-000
 0211205168000

Unit Price

14
GASKET,THROTTLE SHAFT<br />GASKET
GASKET, THROTTLE SHAFT
GASKET

13557-47070-000   1355747070000

1355747070000

Unit Price

15
SPRING

13573-47070-000   1357347070000

1357347070000
Not available
16
SHAFT

13550-47070-000   1355047070000

1355047070000
Not available
17
NUT

08310-22088-000  

08310-00087-000
 0831022088000

Unit Price

18
SHAFT

13550-47080-000   1355047080000

1355047080000
Not available
19
PIN

13563-47070-000   1356347070000

1356347070000
Not available
20
WASHER

13606-47070-000   1360647070000

1360647070000
Not available
21
LEVER

13553-47070-000   1355347070000

1355347070000
Not available
22
LEVER

13555-47070-000   1355547070000

1355547070000
Not available
23
SPRING

13503-47080-000   1350347080000

1350347080000
Not available
24
DISCONTINUED

13621-47180-000   1362147180000

1362147180000
Not available
25
..SHAFT

13550-47090-000   1355047090000

1355047090000
Not available
26
.SEAT

13556-31210-000   1355631210000

1355631210000
Not available
27
E RING<br />E RI G
E RING
E RI G

13617-44080-000   1361744080000

1361744080000

Unit Price

28
GASKET,THROTTLE SHAFT<br />GASKET
GASKET, THROTTLE SHAFT
GASKET

13557-47070-000   1355747070000

1355747070000

Unit Price

29
NUT
NUT

13607-47070-000   1360747070000

1360747070000

Unit Price

30
SCREW
SCREW

13605-47080-000   1360547080000

1360547080000

Unit Price

31
.SCREW

13605-45410-000   1360545410000

1360545410000
Not available
32
SCREW<br />SCREW, THROTTLE VALVE
SCREW
SCREW, THROTTLE VALVE

13604-44080-000   1360444080000

1360444080000

Unit Price

33
THROTTLE VALVE (135)

13551-47000-000   1355147000000

1355147000000
Not available
34
GASKET, FLOAT CHAMBER

13251-44080-000  

13251-44081-H17
 1325144080000

Unit Price

35
WASHER
WASHER

13382-44030-000   1338244030000

1338244030000

Unit Price

36
SPRING
SPRING

13388-44030-000   1338844030000

1338844030000

Unit Price

37
JET, PILOT (42.5)

09492-42005-000   0949242005000

0949242005000
Not available
38
PLUG,NEEDLE JET<br />PLUG
PLUG, NEEDLE JET
PLUG

13357-44080-000   1335744080000

1335744080000

Unit Price

39
JET, NEEDLE (V-7)

09494-00326-000   0949400326000

0949400326000
Not available
40
WASHER

13332-44080-000  

13382-03110-000
 1333244080000

Unit Price

41
JET, MAIN

09491-22004-000   0949122004000

0949122004000
Not available
42
PLUG,DRAIN<br />SCREW
PLUG, DRAIN
SCREW

13247-44080-000   1324744080000

1324744080000

Unit Price

43
GASKET
GASKET

13246-44080-000   1324644080000

1324644080000

Unit Price

44
FLOAT

13250-44080-000   1325044080000

1325044080000

Unit Price

45
SCREW

02112-04068-000  

02112-0406B-000
 0211204068000

Unit Price

46
PLATE,NEEDLE VALVE FITING<br />PLATE
PLATE, NEEDLE VALVE FITING
PLATE

13373-11400-000   1337311400000

1337311400000

Unit Price

47
PIN,FLOAT<br />PIN
PIN, FLOAT
PIN

13254-92311-000   1325492311000

1325492311000

Unit Price

48
.NEEDLE VALVE ASSY

13370-11400-000   1337011400000

1337011400000
Not available
49
O RING, NEEDLE VALVE SEAT

13374-44080-000  

13374-35C00-000
 1337444080000

Unit Price

50
.FILTER

13376-65010-000   1337665010000

1337665010000
Not available
51
COVER

13502-45110-000   1350245110000

1350245110000
Not available
52
SPRING

13268-44010-000   1326844010000

1326844010000
Not available
53
PIN

13575-47070-000   1357547070000

1357547070000
Not available
54
DISCONTINUE<br />BUSH
DISCONTINUE
BUSH

13276-31210-000   1327631210000

1327631210000
Not available
55
BRACKET

13627-44090-000   1362744090000

1362744090000
Not available
56
CAP,STARTER VALVE<br />CAP
CAP, STARTER VALVE
CAP

13682-31210-000   1368231210000

1368231210000

Unit Price

57
DISCONTINUE
JET (140)

09493-28005-000   0949328005000

0949328005000
Not available
58
SCREW

02112-05168-000  

02112-05167-000
 0211205168000

Unit Price

59
WASHER, LOCK

08321-21058-000  

08321-0105A-000
 0832121058000

Unit Price

60
SHAFT

13550-47100-000   1355047100000

1355047100000
Not available
61
WASHER

13589-47070-000   1358947070000

1358947070000

Unit Price

62
O RING
O RING

13278-47090-000  

13278-47091-000
 1327847090000

Unit Price

63
FLANGE ASSY

13210-47180-000   1321047180000

1321047180000
Not available
64
LEVER
LEVER

13422-44080-000   1342244080000

1342244080000
Not available
65
DISCONTINUE
SCREW

13605-47070-000   1360547070000

1360547070000
Not available
66
DISCONTINUED

13410-47070-000   1341047070000

1341047070000
Not available
67
DISCONTINUED

02152-05128-000   0215205128000

0215205128000
Not available
68
DISCONTINUED

13683-31610-000   1368331610000

1368331610000
Not available
69
BRACKET

13627-47070-000   1362747070000

1362747070000
Not available
70
SPRING
SPRING

13271-93011-000   1327193011000

1327193011000

Unit Price

71
NIPPLE

13685-47070-000   1368547070000

1368547070000

Unit Price

72
.HOSE

13683-47070-000   1368347070000

1368347070000
Not available
73
DISCONTINUE
ADJUSTER

13267-47070-000   1326747070000

1326747070000
Not available
74
NIPPLE

13685-47080-000   1368547080000

1368547080000
Not available
75
SCREW

02112-06128-000  

02112-06127-000
 0211206128000

Unit Price

76
LEVER

13413-49220-000   1341349220000

1341349220000
Not available
77
LEVER

13421-49220-000   1342149220000

1342149220000
Not available
78
SPRING

13437-49220-000   1343749220000

1343749220000
Not available
79
DISCONTINUE
NIPPLE

13685-47090-000   1368547090000

1368547090000
Not available
80
.SCREW

02112-05108-000   0211205108000

0211205108000
Not available
81
WASHER, LOCK

08321-21058-000  

08321-0105A-000
 0832121058000

Unit Price

82
WASHER

13432-47090-000   1343247090000

1343247090000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CARBURETOR (MODEL Z) of your Suzuki of GS. Let us know if you have any questions.
