CLUTCH (MODEL K8) REFER TO FIG.21A(D- 4) FOR MODEL K9/L0

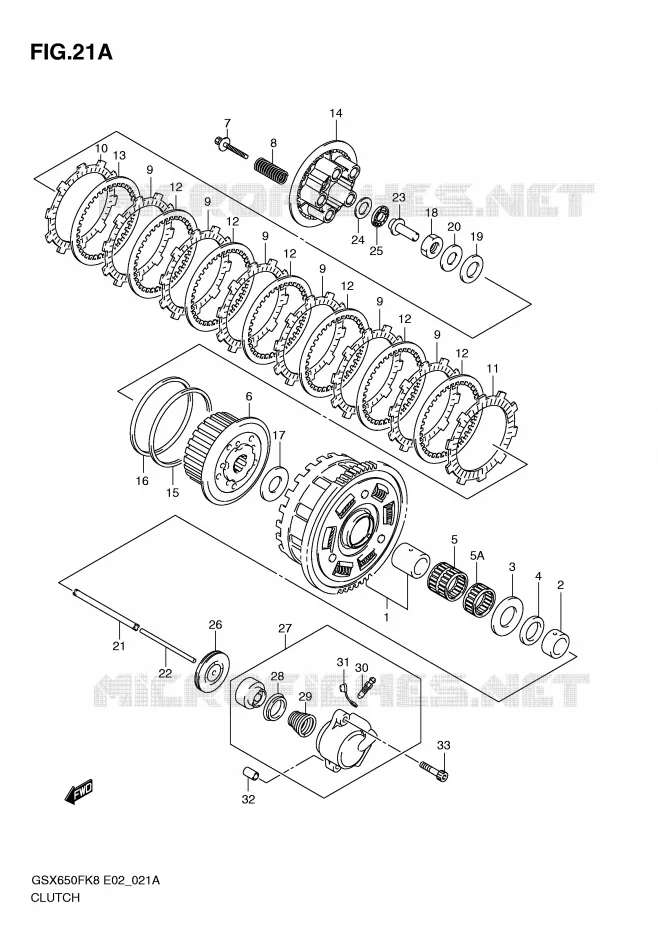

CLUTCH (MODEL K9 / L0) FOR SUZUKI GSX-F 650 2010

TRANSMISSION (MODEL K8) REFER TO FIG.22A(D- 8) FOR MODEL K9/L0

Item numbers

GEAR ASSY, PRI DRIVEN
GEAR ASSY, PRIMARY DRIVEN

21200-17810-000 2120017810000

$558,97

Unit Price

SPACER, OIL PUMP DRIVE SPROCKET
SPACER, OIL PUMP DRIVE

21253-01H10-000 2125301H10000

$40,97

Unit Price

WASHER (25X54X2.4)

09160-25073-000 0916025073000

$20,97

Unit Price

WASHER(25X30X3)
WASHER (25X30X3.0)

09160-25036-000 0916025036000

$8,97

Unit Price

BEARING
BEARING (35X40X26.8)

09263-35015-000 0926335015000

$23,97

Unit Price

BEARING (35X40X12)

09263-35045-000 0926335045000

$22,97

Unit Price

HUB, CLUTCH SLEEVE

21410-44G00-000 2141044G00000

$171,97

Unit Price

BOLT, CLUTCH SPRING

21412-35F00-000 2141235F00000

$6,97

Unit Price

SPRING, CLUTCH

21413-17H00-000 2141317H00000

$13,97

Unit Price

PLATE, CLUTCH DRIVE NO.1

21441-31E90-000 2144131E90000

$42,97

Unit Price

PLATE, CLUTCH DRIVE
PLATE, CLUTCH DRIVE NO.2

21441-31E60-000 2144131E60000

$29,97

Unit Price

PLATE, CLUTCH DRIVE
PLATE, CLUTCH DRIVE NO.3

21442-31E21-000 2144231E21000

$40,97

Unit Price

PLATE, CLUTCH DRIVEN NO.1

21451-31E50-000 2145131E50000

$21,97

Unit Price

PLATE, CLUTCH DRIVEN NO.1
PLATE, CLUTCH DRIVEN NO.2

21451-31E40-000 2145131E40000

$21,97

Unit Price

DISC, CLUTCH PRESSURE
DISK, CLUTCH PRESSURE

21462-35F00-000 2146235F00000

$74,97

Unit Price

SEAT, CLUTCH PLATE WAVE WASHER
SEAT, WAVE WASHER

21471-31E20-000 2147131E20000

$17,97

Unit Price

WASHER, CLUTCH PLATE WAVE

21472-31E01-000 2147231E01000

$23,97

Unit Price

WASHER SLEEVE HUB
WASHER, CLUTCH SLEEVE

09160-25056-000 0916025056000

$20,97

Unit Price

NUT
NUT, CLUTCH SLEEVE HUB

09159-24010-000 0915924010000

$22,97

Unit Price

SHIM, 25X38X1.0
WASHER, CLUTCH SLEEVE NUT

09181-25223-000 0918125223000

$5,97

Unit Price

WASHER CL SLEEVE HUB
WASHER, CLUTCH WAVE

09164-24006-000 0916424006000

$6,97

Unit Price

ROD, CLUTCH
ROD, CLUTCH PUSH RH

23110-27A00-000 2311027A00000

$23,97

Unit Price

ROD, CLUTCH PUSH, L(L:138)
ROD, CLUTCH PUSH LH

23111-42F00-000 2311142F00000

$24,97

Unit Price

PIECE, CLUTCH PUSH

23121-31E20-000 2312131E20000

$51,97

Unit Price

WASHER
WASHER, CLUTCH PUSH

09160-15045-000 0916015045000

$6,97

Unit Price

BEARING(15X28X2)
BEARING, CLUTCH PUSH

09263-15003-000 0926315003000

$12,97

Unit Price

SEAL, OIL, 6X52X1
SEAL, CLUTCH PUSH ROD

09283-06011-000 0928306011000

$35,97

Unit Price

CYLINDER, CLUTCH RELEASE

23160-18H00-000

23160-18H01-000

$195,97

Unit Price

CUP, CLUTCH CYLINDER
CUP

23163-05A00-000 2316305A00000

$14,97

Unit Price

SPRING, CLUTCH CYLINDER
SPRING

23164-05A00-000 2316405A00000

$6,97

Unit Price

BLEEDER

59121-01A00-000 5912101A00000

$12,97

Unit Price

CAP, BLEEDER

59122-01A00-000 5912201A00000

$6,97

Unit Price

9 X 12 DOWEL PIN
KNOCK PIN

04211-09129-000 0421109129000

$2,97

Unit Price

BOLT, CL COVER
BOLT (6X30)

09103-06251-000 0910306251000

$3,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
