Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

SWINGARM

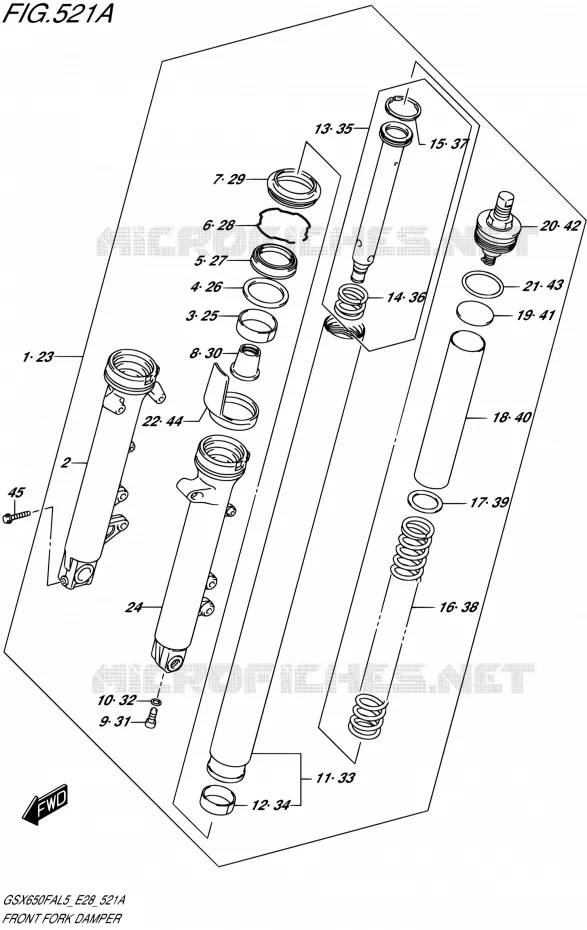

FRONT FORK FOR SUZUKI GSX-F 650 2015

STEERING COLUMN

Item numbers

DISCONTINUE
DAMPER ASSY, FRONT FORK RH (BLACK)

51103-17H90-000 5110317H90000

Not available

TUBE, OUTER, R
.TUBE, OUTER RH (BLACK)

51130-17H30-000 5113017H30000

$643,97

Unit Price

METAL, SLIDE
.METAL, SILDE

51167-26E10-000 5116726E10000

$27,97

Unit Price

.WASHER

51158-05A00-000 5115805A00000

$8,97

Unit Price

SEAL, OIL
.OIL SEAL

51153-10G50-000 5115310G50000

$19,97

Unit Price

RING, OIL SEAL STOPPER
.RING, STOPPER

51156-49440-000 5115649440000

$7,97

Unit Price

SEAL, DUST
.DUST SEAL

51173-14F00-000 5117314F00000

$20,97

Unit Price

.PIECE, OIL LOCK

51195-33D10-000 5119533D10000

$24,97

Unit Price

.BOLT

51147-05H00-000 5114705H00000

$8,97

Unit Price

.GASKET

51148-41310-000 5114841310000

$3,97

Unit Price

.TUBE, INNER

51110-17H00-000 5111017H00000

$579,97

Unit Price

..PISTON

51121-23EA0-000 5112123EA0000

$27,97

Unit Price

.CYLINDER

51146-17H20-000 5114617H20000

Not available

SPRING, REBOUND
..SPRING

51177-06C00-000 5117706C00000

$16,97

Unit Price

..RING, PISTON

51196-31F00-000 5119631F00000

$13,97

Unit Price

SPRING, FR
.SPRING, FRONT

51171-17H80-000 5117117H80000

$115,97

Unit Price

.WASHER

51356-17H00-000 5135617H00000

Not available

.SPACER, SPRING (L:73.5)

51176-14F20-000 5117614F20000

$11,97

Unit Price

WASHER, FR FORK SPRING
.WASHER

51192-27A00-000 5119227A00000

$10,97

Unit Price

.CAP

51351-31FA0-000

Not available

O RING
.O RING (D:3.5, ID:31.7)

09280-32001-000 0928032001000

$3,97

Unit Price

.PROTECTOR

51201-31F00-000 5120131F00000

$22,97

Unit Price

DAMPER ASSY, FR FORK, L
DAMPER ASSY, FRONT FORK LH (BLACK)

51104-17H90-000 5110417H90000

$1 355,97

Unit Price

TUBE, OUTER, L
.TUBE, OUTER LH (BLACK)

51140-17H30-000 5114017H30000

$643,97

Unit Price

METAL, SLIDE
.METAL, SILDE

51167-26E10-000 5116726E10000

$27,97

Unit Price

.WASHER

51158-05A00-000 5115805A00000

$8,97

Unit Price

SEAL, OIL
.OIL SEAL

51153-10G50-000 5115310G50000

$19,97

Unit Price

RING, OIL SEAL STOPPER
.RING, STOPPER

51156-49440-000 5115649440000

$7,97

Unit Price

SEAL, DUST
.DUST SEAL

51173-14F00-000 5117314F00000

$20,97

Unit Price

.PIECE, OIL LOCK

51195-33D10-000 5119533D10000

$24,97

Unit Price

.BOLT

51147-05H00-000 5114705H00000

$8,97

Unit Price

.GASKET

51148-41310-000 5114841310000

$3,97

Unit Price

.TUBE, INNER

51110-17H00-000 5111017H00000

$579,97

Unit Price

..PISTON

51121-23EA0-000 5112123EA0000

$27,97

Unit Price

.CYLINDER

51146-17H20-000 5114617H20000

Not available

SPRING, REBOUND
..SPRING

51177-06C00-000 5117706C00000

$16,97

Unit Price

..RING, PISTON

51196-31F00-000 5119631F00000

$13,97

Unit Price

SPRING, FR
.SPRING, FRONT

51171-17H80-000 5117117H80000

$115,97

Unit Price

.WASHER

51356-17H00-000 5135617H00000

Not available

.SPACER, SPRING (L:73.5)

51176-14F20-000 5117614F20000

$11,97

Unit Price

WASHER, FR FORK SPRING
.WASHER

51192-27A00-000 5119227A00000

$10,97

Unit Price

.CAP

51351-31FA0-000

Not available

O RING
.O RING (D:3.5, ID:31.7)

09280-32001-000 0928032001000

$3,97

Unit Price

.PROTECTOR

51201-31F00-000 5120131F00000

$22,97

Unit Price

BOLT

51451-10G00-000 5145110G00000

$10,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
