CYLINDER

CRACKCASE COVER FOR SUZUKI SAVAGE 650 1999

CRACKCASE COVER

Item numbers

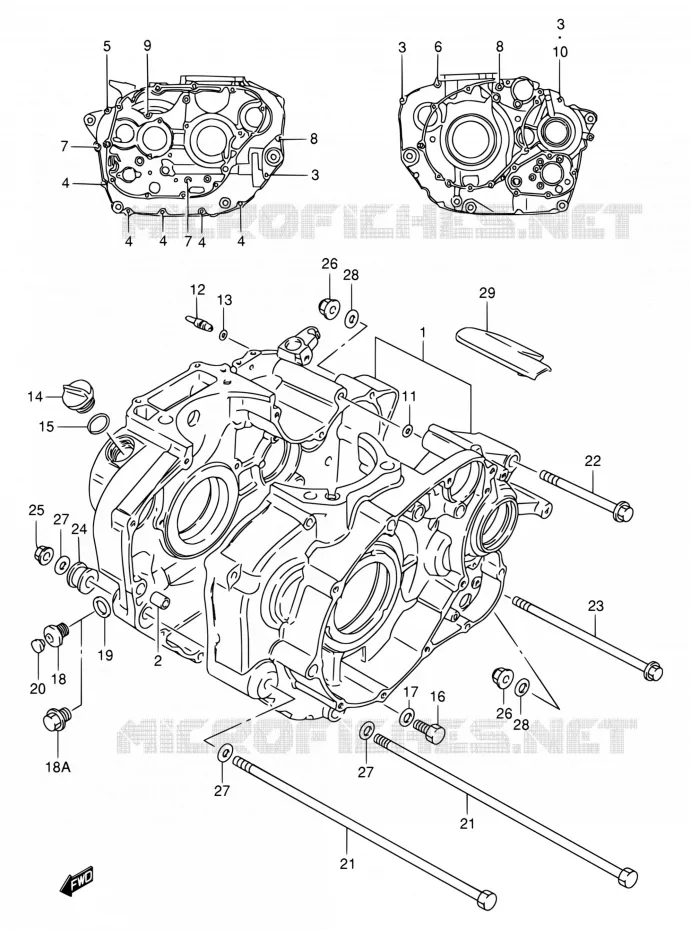

CRACKCASE COVER Suzuki MOTO 650 SAVAGE 1999 LS650PX(E22)
1
2
3
3
3
4
4
4
4
4
5
6
7
7
8
8
8
8
9
10
11
12
13
14
15
16
17
18
18
19
20
21
21
22
23
24
25
26
26
27
27
27
28
28
29
1
DISCONTINUE
CRANKCASE SET

11301-24812-000   1130124812000

1130124812000
Not available
2
PIN, 11 X20<br />.PIN
PIN, 11 X20
.PIN

09206-11017-000   0920611017000

0920611017000

Unit Price

3
BOLT,6X40<br />.BOLT
BOLT, 6X40
.BOLT

01547-06407-000   0154706407000

0154706407000

Unit Price

4
BOLT,6X45<br />.BOLT
BOLT, 6X45
.BOLT

01547-06457-000   0154706457000

0154706457000

Unit Price

5
BOLT,6X55<br />.BOLT
BOLT, 6X55
.BOLT

01547-06557-000   0154706557000

0154706557000

Unit Price

6
.BOLT

01547-06607-000   0154706607000

0154706607000

Unit Price

7
BOLT

01547-06657-000  

01547-0665B-000
 0154706657000

Unit Price

8
BOLT

01547-06703-000  

01547-0670A-000
 0154706703000

Unit Price

8
BOLT,6X70<br />.BOLT (CHROME)
BOLT, 6X70
.BOLT (CHROME)

01547-06707-000   0154706707000

0154706707000

Unit Price

9
BOLT

01547-06753-000  

01547-0675A-000
 0154706753000

Unit Price

10
GASKET<br />.GASKET (5.8X11X1.2)
GASKET
.GASKET (5.8X11X1.2)

09168-06024-000   0916806024000

0916806024000

Unit Price

11
.O RING (D:2.4, ID:9.6)

09280-10013-000   0928010013000

0928010013000

Unit Price

12
JET, OIL GALLERY(18)
.JET, OIL GALLERY

09493-36004-000   0949336004000

0949336004000

Unit Price

13
O RING<br />.O RING (D:1.2,ID:4.0)
O RING
.O RING (D:1.2, ID:4.0)

09280-04004-000   0928004004000

0928004004000

Unit Price

14
PLUG, ENG OIL FILLER
PLUG, OIL FILLER

09259-20007-000   0925920007000

0925920007000

Unit Price

15
O-RING,OIL FILLER<br />O RING (D:3.1,ID:16.8)
O-RING, OIL FILLER
O RING (D:3.1, ID:16.8)

09280-17003-000   0928017003000

0928017003000

Unit Price

16
PLUG<br />PLUG, OIL DRAIN
PLUG
PLUG, OIL DRAIN

09247-12106-000   0924712106000

0924712106000

Unit Price

17
GASKET OIL GALLERY<br />GASKET
GASKET OIL GALLERY
GASKET

09168-12002-000   0916812002000

0916812002000
Not available
18
09248-14011<br />PLUG, OIL GALLERY
09248-14011
PLUG, OIL GALLERY

09248-14005-000  

0924814005000
Not available
19
GASKET,13.8X18.8X0.4<br />GASKET
GASKET, 13.8X18.8X0.4
GASKET

09168-14002-000   0916814002000

0916814002000

Unit Price

20
CAP

09250-08014-000   0925008014000

0925008014000

Unit Price

21
BOLT (10X323)

09104-10034-000   0910410034000

0910410034000

Unit Price

22
BOLT
BOLT (10X105)

09103-10087-000   0910310087000

0910310087000

Unit Price

23
BOLT (10X180)

09103-10053-000   0910310053000

0910310053000

Unit Price

24
SPACER,ENGINE MOUNT(L20)<br />SPACER
SPACER, ENGINE MOUNT(L20)
SPACER

11610-38400-000   1161038400000

1161038400000

Unit Price

25
NUT

09159-10064-000   0915910064000

0915910064000

Unit Price

26
NUT

09159-10047-000   0915910047000

0915910047000

Unit Price

27
WASHER
WASHER

08322-01107-000   0832201107000

0832201107000

Unit Price

28
WASHER

08322-01103-000  

08322-0110B-000
 0832201103000

Unit Price

29
COVER, CRANKCASE START MOT
COVER, CRANKCASE

11384-24B01-000   1138424B01000

1138424B01000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
