Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

RADIATOR

RADIATOR HOSE - EXPANSION TANK FOR SUZUKI SV-S 650 2007

ANTI POLLUTION SYSTEM (MODEL K7)

Item numbers

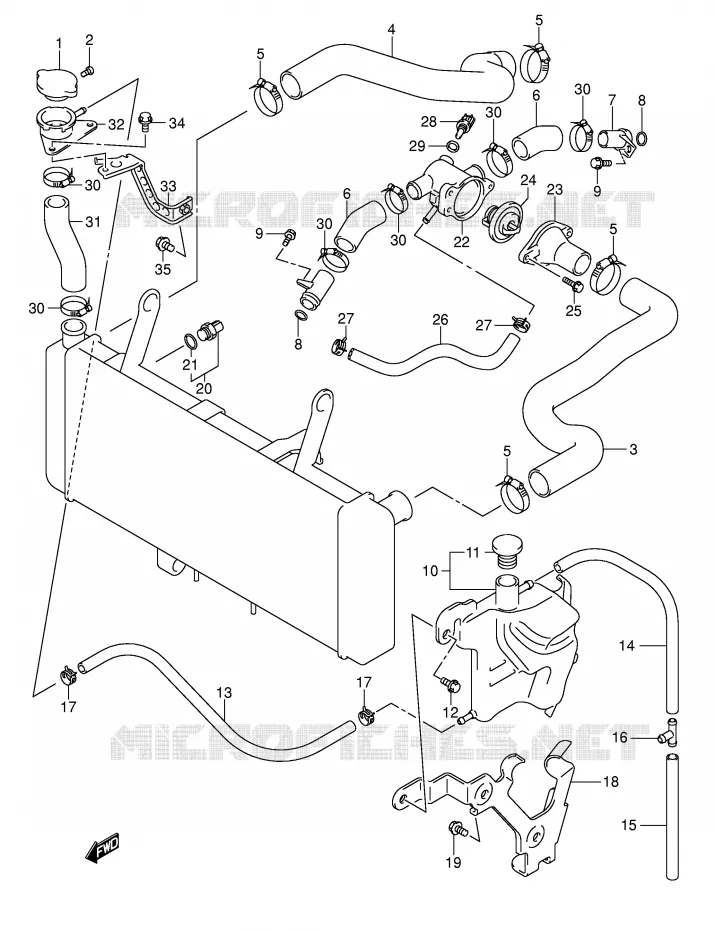

RADIATOR HOSE - EXPANSION TANK Suzuki MOTO 650 SV-S 2007 SV650SAK7
1
1
2
3
3
4
4
4
5
5
5
5
6
6
7
7
8
8
9
9
10
10
11
12
13
14
15
16
17
17
18
18
19
20
21
22
23
24
25
26
27
27
28
29
30
30
30
30
30
30
30
30
30
30
30
30
31
32
33
34
35
1
CAP, RADIATOR

17730-12C20-000  

17730-08J00-000
 1773012C20000

Unit Price

1
CAP, RADIATOR 1.1
CAP, RADIATOR 1.1

17730-19D11-000   1773019D11000

1773019D11000

Unit Price

2
SCREW, RADIATOR CAP
SCREW, RADIATOR CAP

17733-03D10-000   1773303D10000

1773303D10000

Unit Price

3
HOSE, RADIATOR INLET

17851-17G00-000   1785117G00000

1785117G00000

Unit Price

3
HOSE, RADIATOR INLET

17851-17G10-000   1785117G10000

1785117G10000

Unit Price

4
HOSE, RADIATOR OUTLET

17852-17G00-000   1785217G00000

1785217G00000

Unit Price

4
HOSE, RADIATOR OUTLET

17852-17G20-000   1785217G20000

1785217G20000

Unit Price

4
DISCONTINUE
HOSE, RADIATOR OUTLET

17852-17G10-000   1785217G10000

1785217G10000
Not available
5
CLAMP
CLAMP

09402-38511-000   0940238511000

0940238511000

Unit Price

6
HOSE, CONNECTOR INLET
HOSE, CONNECTOR INLET

17853-19F00-000   1785319F00000

1785319F00000

Unit Price

7
UNION, CONNECTOR HOSE

17890-06G00-000  

17890-06G20-000
 1789006G00000

Unit Price

8
O RING
O RING

09280-18009-000   0928018009000

0928018009000

Unit Price

9
BOLT(6X12)

07130-06123-000  

09106-06075-000
 0713006123000

Unit Price

10
TANK ASSY, RESERVOIR

17910-17G10-000   1791017G10000

1791017G10000

Unit Price

10
DISCONTINUE
TANK ASSY, RESERVOIR

17910-17G00-000   1791017G00000

1791017G00000
Not available
11
CAP, RESERVOIR TANK
CAP, RESERVOIR TANK

17931-02FA0-000   1793102FA0000

1793102FA0000

Unit Price

12
BOLT

09111-06085-000   0911106085000

0911106085000

Unit Price

13
HOSE<br />HOSE, RESERVOIR TANK INLET
HOSE
HOSE, RESERVOIR TANK INLET

09352-50901-600   0935250901600

0935250901600

Unit Price

14
HOSE<br />HOSE, RESERVOIR TANK OVERFLOW NO.1
HOSE
HOSE, RESERVOIR TANK OVERFLOW NO.1

09352-50901-600   0935250901600

0935250901600

Unit Price

15
HOSE(7X10.2X600)
HOSE(7X10.2X600)

09352-70103-600  

09352-70104-600
 0935270103600

Unit Price

16
3 WAY
JOINT

09367-08005-000   0936708005000

0936708005000

Unit Price

17
CLIP
CLIP

09401-08411-000  

0940108411000
Not available
18
BRACKET, RESERVOIR TANK

17920-17G10-000   1792017G10000

1792017G10000

Unit Price

18
DISCONTINUE
BRACKET, RESERVOIR TANK

17920-17G00-000   1792017G00000

1792017G00000
Not available
19
BOLT
BOLT

01550-0610A-000  

01550-0610B-000
 015500610A000

Unit Price

20
SWITCH COMP, RDTR FAN

17680-50F10-000  

17680-50F11-000
 1768050F10000

Unit Price

21
O RING
O RING

17689-50F00-000   1768950F00000

1768950F00000
Not available
22
CONNECTOR, THERMOSTAT INLET
CONNECTOR, THERMOSTAT INLET

17662-02F11-000   1766202F11000

1766202F11000

Unit Price

23
CAP, THERMOSTAT CONNECTOR
CAP, THERMOSTAT CONNECTOR

17663-17G00-000   1766317G00000

1766317G00000

Unit Price

24
THERMOSTAT COMP, WATER

17670-06G50-000  

17670-06G51-000
 1767006G50000

Unit Price

25
01550-0616A
BOLT

01550-06163-000  

0155006163000
Not available
26
HOSE, CONNECTOR TO WATER PUMP
HOSE, CONNECTOR TO WATER PUMP

17856-19F00-000   1785619F00000

1785619F00000

Unit Price

27
CLIP
CLIP

09401-12409-000  

09401-12414-000
 0940112409000

Unit Price

28
SENSOR, WATER TEMP
SENSOR, WATER TEMPERATURE

13650-57F00-000   1365057F00000

1365057F00000

Unit Price

29
WASHER<br />GASKET
WASHER
GASKET

09168-12017-000   0916812017000

0916812017000

Unit Price

30
CLAMP
CLAMP

09402-28511-000   0940228511000

0940228511000

Unit Price

31
DISCONTINUE
HOSE, CONDUCTION

17855-17G00-000   1785517G00000

1785517G00000
Not available
32
CONDUCTION, RADIATOR

17791-24D00-000   1779124D00000

1779124D00000

Unit Price

33
DISCONTINUE
BRACKET, CONDUCTION

17790-17G10-000   1779017G10000

1779017G10000
Not available
34
BOLT

01550-06103-000  

01550-0610B-000
 0155006103000

Unit Price

35
BOLT

01550-06123-000  

01550-0612B-000
 0155006123000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!

Genuine parts for Suzuki 650 SV-S 2007

BODY/FRAME ELECTRICAL ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS OPTIONS

Suzuki 650 SV-S 2007

Choose your Suzuki 650 2007 SV-S model

650 SV-S 2007 SV650SAK7
650 SV-S 2007 SV650SAK7
650 SV-S 2007 SV650SAK7
650 SV-S 2007 SV650SAK7
Color : 00RT GRAY METALLIC (YHG)

SV 650 S ABS

Suzuki SV-S

Displacement: 650 cc
Year: 2007
Model code SV650SAK7
Color: 00RT GRAY METALLIC (YHG) / CANDY SONOMA RED (YHL) / PEARL VIGOR BLUE (YKY) / PEARL NEBULAR BLACK (YAY)
