Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

CRANKCASE (MODEL X / Y) REFER TO FIG.4A(B-10) FOR MODEL K1/K2

CRANKCASE (MODEL K1 / K2) FOR SUZUKI SV 650 1999

CRANKCASE COVER

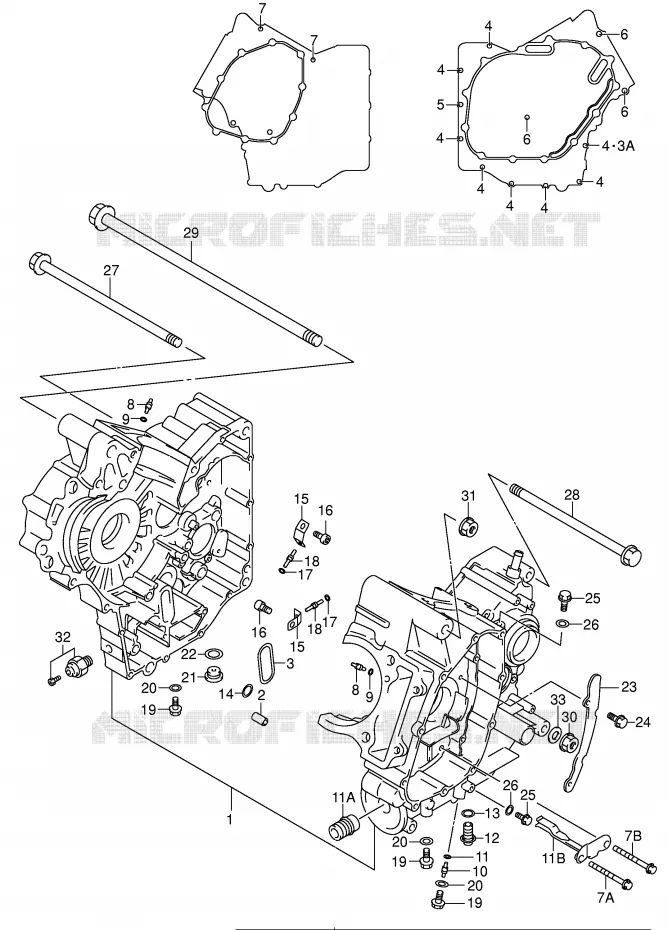

CRANKCASE (MODEL K1/K2) Suzuki MOTO 650 SV 1999 SV650UX(E2)
1
DISCONTINUE
CRANKCASE SET

11301-20850-000   1130120850000

1130120850000
Not available
2
PIN (11X20)
PIN (11X20)

09206-11017-000   0920611017000

0920611017000

Unit Price

3
O RING, CRANKCASE
O RING, CRANKCASE

11315-19F00-000   1131519F00000

1131519F00000

Unit Price

3A
GASKET<br />GASKET (5.8X13X1.2)
GASKET
GASKET (5.8X13X1.2)

09168-06023-000   0916806023000

0916806023000
Not available
4
BOLT

01547-06503-000  

01547-0650A-000
 0154706503000

Unit Price

5
BOLT
BOLT

01547-06507-000   0154706507000

0154706507000

Unit Price

6
BOLT

07120-08553-000  

07120-0855A-000
 0712008553000

Unit Price

7
BOLT

07120-08803-000  

07120-0880A-000
 0712008803000

Unit Price

7A
DISCONTINUE<br />BOLT (8X90)
DISCONTINUE
BOLT (8X90)

11322-20F00-000   1132220F00000

1132220F00000
Not available
7B
BOLT (8X95)
BOLT (8X95)

09103-08066-000   0910308066000

0910308066000
Not available
8
JET,OIL<br />JET, OIL GALLERY CYLINDER
JET, OIL
JET, OIL GALLERY CYLINDER

09493-28010-000   0949328010000

0949328010000

Unit Price

9
O RING<br />O RING (D:1.2,ID:4.0)
O RING
O RING (D:1.2, ID:4.0)

09280-04004-000   0928004004000

0928004004000

Unit Price

10
JET,OIL<br />JET, OIL GALLERY MISSION
JET, OIL
JET, OIL GALLERY MISSION

09493-28010-000   0949328010000

0949328010000

Unit Price

11
O RING<br />O RING (D:1.2,ID:4.0)
O RING
O RING (D:1.2, ID:4.0)

09280-04004-000   0928004004000

0928004004000

Unit Price

11A
UNION, OIL STAND

16591-06B00-000  

16591-06B01-000
 1659106B00000

Unit Price

11B
PLATE, OIL
PLATE, OIL

11391-20F20-000   1139120F20000

1139120F20000
Not available
12
PLUG<br />PLUG (12X20)
PLUG
PLUG (12X20)

09247-12106-000   0924712106000

0924712106000

Unit Price

13
GASKET OIL GALLERY<br />GASKET (12.1X16.2X3.7)
GASKET OIL GALLERY
GASKET (12.1X16.2X3.7)

09168-12002-000   0916812002000

0916812002000
Not available
14
O RING (D:1.9,ID:12.6)
O RING (D:1.9, ID:12.6)

09280-12009-000   0928012009000

0928012009000

Unit Price

15
PLATE, PISTON COOLING JET

16438-19F00-000   1643819F00000

1643819F00000

Unit Price

16
BOLT (6X12)
BOLT (6X12)

09106-06075-000   0910606075000

0910606075000

Unit Price

17
O RING<br />O RING (D:1.2,ID:4.0)
O RING
O RING (D:1.2, ID:4.0)

09280-04004-000   0928004004000

0928004004000

Unit Price

18
JET(13)<br />JET (130)
JET(13)
JET (130)

09493-26007-000   0949326007000

0949326007000

Unit Price

19
BOLT

01550-08123-000  

01550-0812B-000
 0155008123000

Unit Price

20
GASKET,HEAD COVER BO<br />GASKET
GASKET, HEAD COVER BO
GASKET

09168-08029-000   0916808029000

0916808029000

Unit Price

21
PLUG,OIL<br />PLUG
PLUG, OIL
PLUG

09248-16012-000   0924816012000

0924816012000

Unit Price

22
GASKET OIL GALLERY<br />GASKET (16X22X2)
GASKET OIL GALLERY
GASKET (16X22X2)

09168-16002-000   0916816002000

0916816002000

Unit Price

23
PLATE, OIL SEPARATOR
PLATE, OIL SEPARATOR

11323-19F00-000   1132319F00000

1132319F00000

Unit Price

24
BOLT

01547-06123-000  

01547-0612B-000
 0154706123000

Unit Price

25
BOLT

01550-06123-000  

01550-0612B-000
 0155006123000

Unit Price

26
GASKET<br />GASKET (5.8X13X1.2)
GASKET
GASKET (5.8X13X1.2)

09168-06023-000   0916806023000

0916806023000
Not available
27
BOLT(10X265)<br />BOLT (10X260)
BOLT(10X265)
BOLT (10X260)

09103-10226-000   0910310226000

0910310226000

Unit Price

28
BOLT

09103-10041-000  

09103-10041-A05
 0910310041000

Unit Price

29
BOLT (12X310)
BOLT (12X310)

09103-12054-000   0910312054000

0910312054000

Unit Price

30
NUT

09159-10058-000  

09159-10115-000
 0915910058000

Unit Price

31
NUT

08319-31128-000  

08319-3112A-000
 0831931128000

Unit Price

32
SWITCH ASSY,OIL PRESSURE
SWITCH ASSY, OIL PRESSURE

37820-33D10-000  

37820-33D11-000
 3782033D10000

Unit Price

33
WASHER

09160-10060-000  

09160-10039-000
 0916010060000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!

Genuine parts for Suzuki 650 SV 1999

BODY/FRAME ELECTRICAL INFORMATION ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS OPTIONS

Suzuki 650 SV 1999

Choose your Suzuki 650 1999 SV model

650 SV 1999 SV650UX(E2)

SV 650 N 25KW

Suzuki SV

Displacement: 650 cc
Year: 1999
Model code SV650UX(E2)
