Parts catalogue

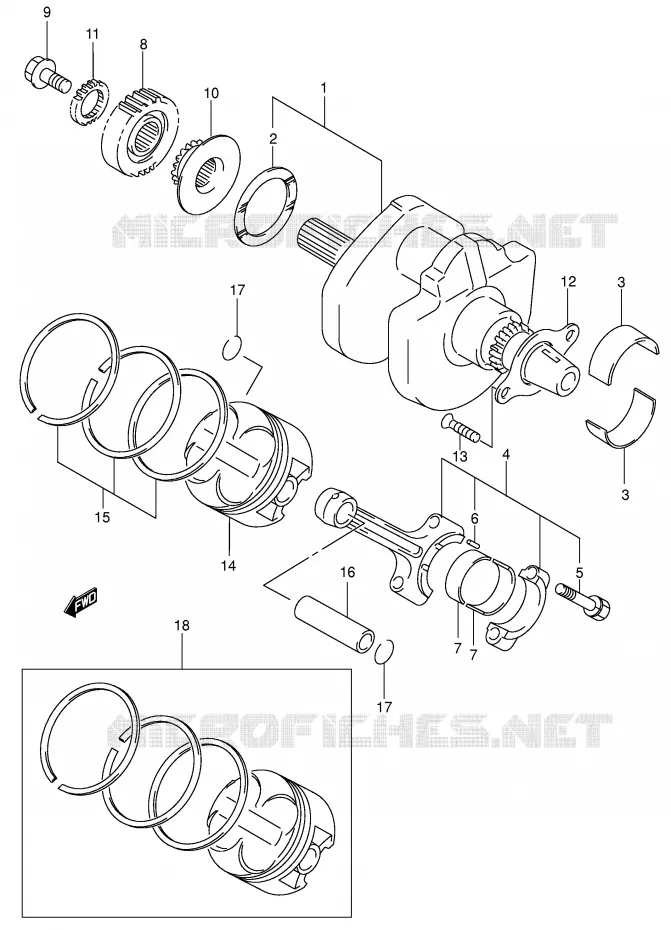

Parts diagram

CRANKCASE COVER

CRANKSHAFT FOR SUZUKI SV 650 2002

STARTER MOTOR CLUTCH

Item numbers

DISCONTINUE
CRANKSHAFT SET

12000-20840-000 1200020840000

Not available

WASHER, CRANK THRUST(T:2.0)
WASHER, THRUST (T:2.0)

12228-19F00-0D0 1222819F000D0

$25,97

Unit Price

WASHER, CRANK THRUST(T:2.025)
WASHER, THRUST (T:2.025)

12228-19F00-0E0 1222819F000E0

$25,97

Unit Price

WASHER, CRANK THRUST(T:2.05)
WASHER, THRUST (T:2.05)

12228-19F00-0F0 1222819F000F0

$25,97

Unit Price

WASHER, CRANK THRUST(T:2.075)
WASHER, THRUST (T:2.075)

12228-19F00-0G0 1222819F000G0

$25,97

Unit Price

WASHER, CRANK THRUST(T:2.1)
WASHER, THRUST (T:2.1)

12228-19F00-0H0 1222819F000H0

$25,97

Unit Price

DISCONTINUE
WASHER, THRUST (T:1.925)

12228-19F00-0A0 1222819F000A0

Not available

DISCONTINUE
WASHER, THRUST (T:1.95)

12228-19F00-0B0 1222819F000B0

Not available

DISCONTINUE
WASHER, THRUST (T:1.975)

12228-19F00-0C0 1222819F000C0

Not available

DISCONTINUE
WASHER, THRUST (T:2.125)

12228-19F00-0I0 1222819F000I0

Not available

DISCONTINUE
WASHER, THRUST (T:2.15)

12228-19F00-0J0 1222819F000J0

Not available

BEARING, CRANKSHAFT(GREEN)

12229-19F10-0A0

12229-27G00-0A0

$31,97

Unit Price

BEARING, CRANKSHAFT(BLACK)

12229-19F10-0B0

12229-27G00-0B0

$30,97

Unit Price

BEARING, CRANKSHAFT(BROWN)

12229-19F10-0C0

12229-27G00-0C0

$30,97

Unit Price

DISCONTINUE
CONNECTING ROD ASSY

12160-20F00-000 1216020F00000

Not available

DISCONTINUE
BOLT, CONNECTING ROD

12163-17C50-000 1216317C50000

Not available

PIN, CONNROD
PIN, CONNECTING ROD

12165-27A50-000 1216527A50000

$1,97

Unit Price

BEARING, CRANK PIN
BEARING, CRANK PIN (GREEN)

12164-46E01-0A0 1216446E010A0

$20,97

Unit Price

BEARING, CRANK PIN
BEARING, CRANK PIN (BLACK)

12164-46E01-0B0 1216446E010B0

$20,97

Unit Price

BEARING, CRANK PIN
BEARING, CRANK PIN (BROWN)

12164-46E01-0C0 1216446E010C0

$20,97

Unit Price

BEARING, CRANK PIN
BEARING, CRANK PIN (YELLOW)

12164-46E01-0D0 1216446E010D0

$20,97

Unit Price

DISCONTINUE
GEAR, PRIMARY DRIVE

21111-20F00-000 2111120F00000

Not available

BOLT(10X19)

21112-19F00-000

09103-10338-000

$11,97

Unit Price

SPROCKET, CAM CHAIN DRIVE

12731-19F00-000 1273119F00000

$57,97

Unit Price

GEAR, WATER PUMP DRIVE

17451-19F00-000 1745119F00000

Not available

DISCONTINUE
RETAINER, CRANKSHAFT BRG LH

12541-20F00-000 1254120F00000

Not available

SCREW

09126-06011-000 0912606011000

$3,97

Unit Price

PISTON

12111-20F00-0F0 1211120F000F0

$197,97

Unit Price

DISCONTINUE
RING SET, PISTON

12140-20F00-000 1214020F00000

Not available

PIN, PISTON

12151-05A00-000 1215105A00000

$17,97

Unit Price

CIRCLIP PISTON PIN
CIRCLIP

09381-20004-000 0938120004000

$2,97

Unit Price

PISTON SET (OS:0.5)

12100-20F00-050 1210020F00050

$213,97

Unit Price

PISTON SET (OS:1.0)

12100-20F00-100 1210020F00100

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
