SWINGARM

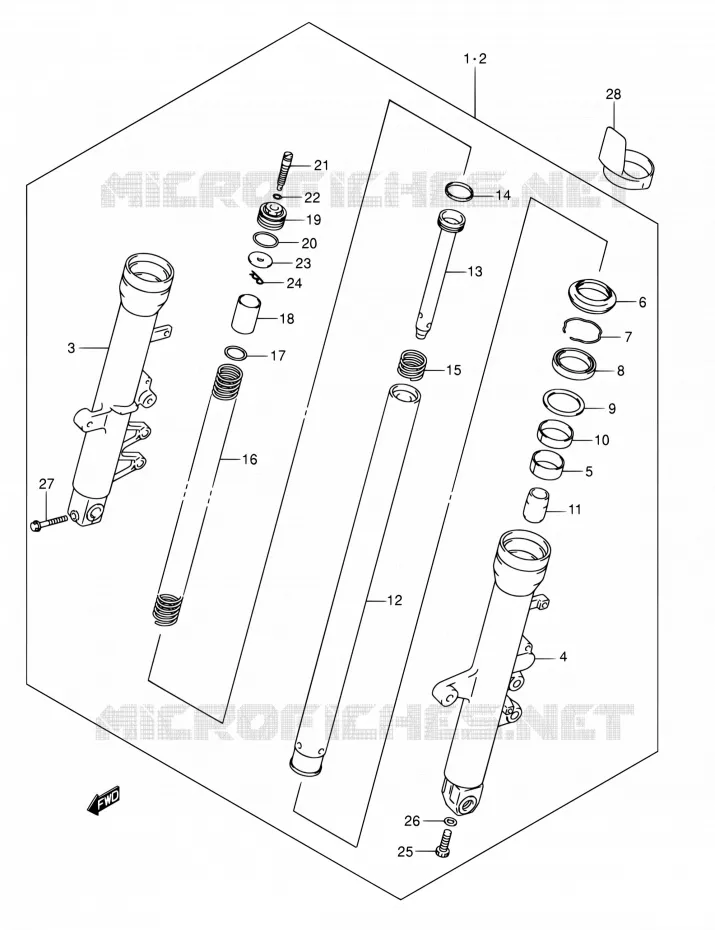

FRONT FORK FOR SUZUKI SV 650 2003

STEERING COLUMN (SV650K3 / UK3 / K4 / UK4 / K5 / UK5 / K6 / UK6 / K7 / UK7 / AK7 / UAK7)

Item numbers

DISCONTINUE
DAMPER ASSY, FRONT FORK RH

51103-17G00-000 5110317G00000

Not available

DISCONTINUE
DAMPER ASSY, FRONT FORK LH

51104-17G00-000 5110417G00000

Not available

DISCONTINUE
.TUBE, OUTER RH

51130-17G00-000 5113017G00000

Not available

DISCONTINUE
.TUBE, OUTER RH

51130-17G80-000 5113017G80000

Not available

DISCONTINUE
.TUBE, OUTER LH

51140-17G00-000 5114017G00000

Not available

.TUBE, OUTER LH

51140-17G80-000 5114017G80000

Not available

.BUSH, SLIDE

51121-42E00-000 5112142E00000

$23,97

Unit Price

.SEAL, DUST

51571-47D50-000 5157147D50000

$25,97

Unit Price

CIRCLIP, FORK OIL SEAL
.RING, STOPPER

51556-38B00-000 5155638B00000

$10,97

Unit Price

.SEAL, OIL

51153-08D00-000 5115308D00000

$22,97

Unit Price

.SPACER, SEAL

51168-38B00-000 5116838B00000

$9,97

Unit Price

.BUSH, GUIDE

51152-17G00-000 5115217G00000

$25,97

Unit Price

.PIECE, OIL LOCK

51195-48B31-000 5119548B31000

$30,97

Unit Price

.TUBE, INNER

51110-17G00-000 5111017G00000

$718,97

Unit Price

.TUBE, INNER

51110-17G80-000 5111017G80000

$573,97

Unit Price

DISCONTINUE
.CYLINDER

51146-17G00-000 5114617G00000

Not available

.RING, PISTON

51196-12C00-000 5119612C00000

$10,97

Unit Price

.SPRING, REBOUND

51177-12C00-000 5117712C00000

$12,97

Unit Price

SPRING, FR
.SPRING, FRONT

51171-17G00-000 5117117G00000

$110,97

Unit Price

.JOINT, SPRING

51192-19C00-000 5119219C00000

$5,97

Unit Price

COLLAR, SPRING(32.9X34X50)
.COLLAR, SPRING

51176-12C10-000 5117612C10000

$19,97

Unit Price

.BOLT, FORK

51189-12C00-000 5118912C00000

$52,97

Unit Price

.O RING

51117-12C00-000 5111712C00000

$5,97

Unit Price

.ADJUSTER BOLT, SPRING

51185-17G00-000 5118517G00000

$34,97

Unit Price

O RING, ROCKER SHAFT
.O RING

09280-09005-000 0928009005000

$5,97

Unit Price

.SEAT, SPRING

51186-12C00-000 5118612C00000

$9,97

Unit Price

.PIN, SEAT SPRING

51188-32B00-000 5118832B00000

$8,97

Unit Price

BOLT(8X27)
.BOLT

51147-48130-000 5114748130000

$6,97

Unit Price

.GASKET

51148-36011-000 5114836011000

$5,97

Unit Price

BOLT(8X40)
.BOLT

51328-03FK0-000 5132803FK0000

$12,97

Unit Price

PROTECTOR

51201-32F00-000 5120132F00000

$25,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
