Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

LEVERS - HANDGRIPS (MODEL L0)

FRONT FORK FOR SUZUKI SV 650 2009

STEERING COLUMN (SV650K8 / UK8 / AK8 / UAK8 / K9 / UK9 / AK9 / UAK9) REFER TO FIG.67(J- 3) FOR SV650SK8/SUK8/SAK8/SUAK8/SK9/SUK9/SAK9/

Item numbers

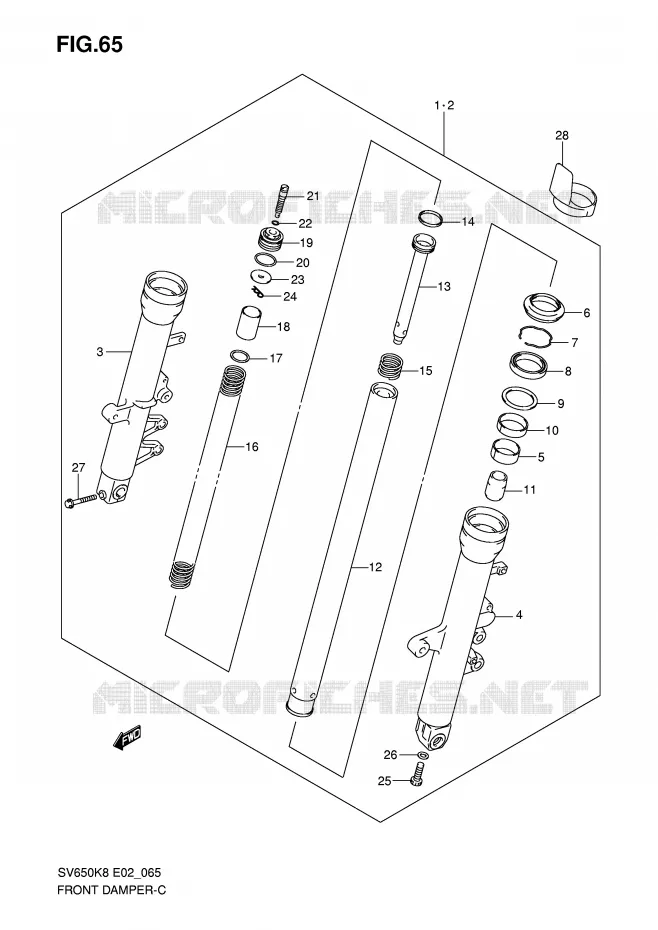

FRONT FORK Suzuki MOTO 650 SV 2009 SV650K9(E2)
1
1
1
2
2
2
3
3
4
4
5
6
6
7
8
8
9
9
10
11
12
12
13
13
13
14
15
15
16
16
16
17
18
18
19
20
21
22
23
24
25
26
27
28
1
DAMPER ASSY, FR FORK, R
DAMPER ASSY, FRONT FORK RH

51103-17GB0-000   5110317GB0000

5110317GB0000

Unit Price

1
DISCONTINUE

51103-17GA0-000  

5110317GA0000
Not available
1
DAMPER ASSY, FRONT FORK RH

51103-17GC0-000   5110317GC0000

5110317GC0000
Not available
2
DAMPER ASSY, FR FORK, L
DAMPER ASSY, FRONT FORK LH

51104-17GB0-000   5110417GB0000

5110417GB0000

Unit Price

2
DISCONTINUE

51104-17GA0-000  

5110417GA0000
Not available
2
DAMPER ASSY, FRONT FORK LH

51104-17GC0-000   5110417GC0000

5110417GC0000
Not available
3
TUBE, OUTER, R
TUBE, OUTER RH

51130-17GA0-000   5113017GA0000

5113017GA0000

Unit Price

3
DISCONTINUE

51130-17GB0-000  

5113017GB0000
Not available
4
TUBE, OUTER, L
TUBE, OUTER LH

51140-17GA0-000   5114017GA0000

5114017GA0000

Unit Price

4
TUBE, OUTER, L
TUBE, OUTER LH

51140-17GB0-000  

5114017GB0000
Not available
5
BUSH, SLIDE

51121-42E00-000   5112142E00000

5112142E00000

Unit Price

6
SEAL, DUST

51173-01H00-000   5117301H00000

5117301H00000

Unit Price

6
SEAL, DUST

51571-47D50-000   5157147D50000

5157147D50000

Unit Price

7
CIRCLIP,FORK OIL SEAL<br />RING, STOPPER
CIRCLIP, FORK OIL SEAL
RING, STOPPER

51556-38B00-000   5155638B00000

5155638B00000

Unit Price

8
SEAL, OIL

51153-01H00-000   5115301H00000

5115301H00000

Unit Price

8
SEAL, OIL
SEAL, OIL

51153-08D00-000   5115308D00000

5115308D00000

Unit Price

9
SPACER, SEAL

51168-17G80-000   5116817G80000

5116817G80000

Unit Price

9
SPACER, SEAL
SPACER, SEAL

51168-38B00-000   5116838B00000

5116838B00000

Unit Price

10
BUSH, GUIDE

51152-17G00-000   5115217G00000

5115217G00000

Unit Price

11
PIECE, OIL LOCK
PIECE, OIL LOCK

51195-48B31-000   5119548B31000

5119548B31000

Unit Price

12
TUBE, INNER

51110-17G00-000   5111017G00000

5111017G00000

Unit Price

12
TUBE, INNER

51110-17G80-000   5111017G80000

5111017G80000

Unit Price

13
CYLINDER

51146-17G20-000   5114617G20000

5114617G20000

Unit Price

13
CYLINDER

51146-17G80-000   5114617G80000

5114617G80000

Unit Price

13
DISCONTINUE
CYLINDER

51146-17G00-000   5114617G00000

5114617G00000
Not available
14
RING, PISTON
RING, PISTON

51196-12C00-000   5119612C00000

5119612C00000

Unit Price

15
SPRING, REBOUND
SPRING, REBOUND

51177-12C00-000   5117712C00000

5117712C00000

Unit Price

15
SPRING REBOUND

51177-17G50-000   5117717G50000

5117717G50000

Unit Price

16
SPRING, FR
SPRING, FRONT

51171-17G00-000   5117117G00000

5117117G00000

Unit Price

16
SPRING, FR
SPRING, FRONT

51171-17G20-000   5117117G20000

5117117G20000

Unit Price

16
SPRING, FRONT

51171-17G80-000   5117117G80000

5117117G80000
Not available
17
JOINT, SPRING
JOINT, SPRING

51192-19C00-000   5119219C00000

5119219C00000

Unit Price

18
COLLAR,SPRING(32.9X34X50)<br />COLLAR, SPRING
COLLAR, SPRING(32.9X34X50)
COLLAR, SPRING

51176-12C10-000   5117612C10000

5117612C10000

Unit Price

18
COLLAR, SPRING

51176-17G50-000   5117617G50000

5117617G50000
Not available
19
BOLT, FORK
BOLT, FORK

51189-12C00-000   5118912C00000

5118912C00000

Unit Price

20
O RING
O RING

51117-12C00-000   5111712C00000

5111712C00000

Unit Price

21
ADJUSTER BOLT, SPRING

51185-17G00-000   5118517G00000

5118517G00000

Unit Price

22
O RING,ROCKER SHAFT<br />O RING (D:1.9,ID:8.6)
O RING, ROCKER SHAFT
O RING (D:1.9, ID:8.6)

09280-09005-000   0928009005000

0928009005000

Unit Price

23
SEAT, SPRING
SEAT, SPRING

51186-12C00-000   5118612C00000

5118612C00000

Unit Price

24
PIN, SEAT SPRING
PIN, SEAT SPRING

51188-32B00-000   5118832B00000

5118832B00000

Unit Price

25
BOLT(8X27)<br />BOLT
BOLT(8X27)
BOLT

51147-48130-000   5114748130000

5114748130000

Unit Price

26
GASKET
GASKET

51148-36011-000   5114836011000

5114836011000

Unit Price

27
BOLT(8X40)
BOLT

51328-03FK0-000   5132803FK0000

5132803FK0000

Unit Price

28
PROTECTOR

51201-32F00-000   5120132F00000

5120132F00000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
