Parts diagram

ANTI POLLUTION SYSTEM

CLUTCH FOR SUZUKI SV 650 2011

TRANSMISSION (SV650L1 E2)

Item numbers

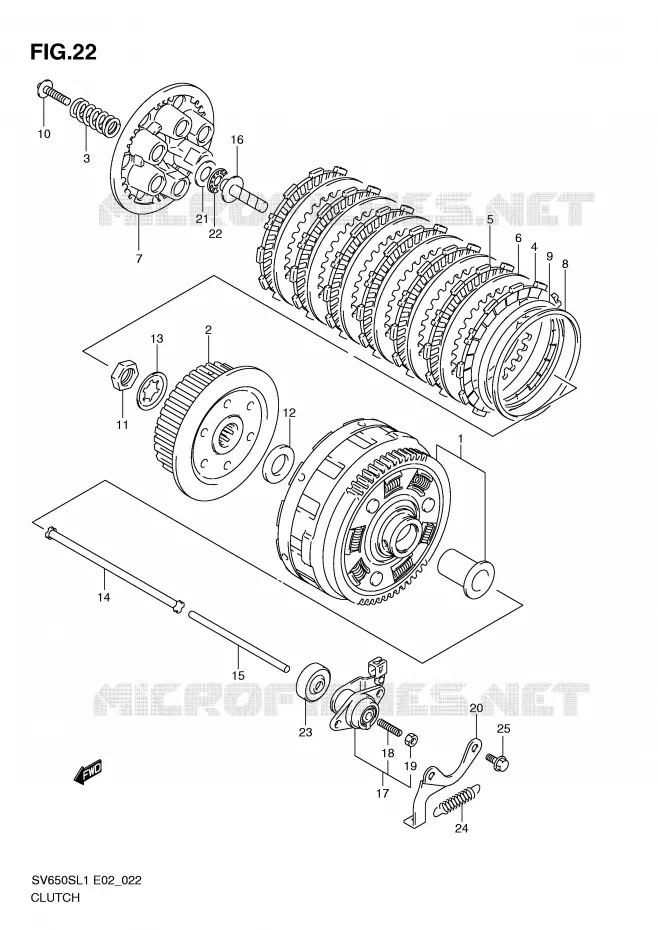

CLUTCH Suzuki MOTO 650 SV 2011 SV650SAL1(E2)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
1
GEAR ASSY, PRI DRIVEN
GEAR ASSY, PRIMARY DRIVEN

21200-17860-000   2120017860000

2120017860000

Unit Price

2
HUB, CLUTCH SLEEVE
HUB, CLUTCH SLEEVE

21411-44101-000   2141144101000

2141144101000

Unit Price

3
SPRING, CLUTCH

21413-17G01-000   2141317G01000

2141317G01000

Unit Price

4
PLATE, CLUTCH DRIVE NO.2

21442-29F00-000   2144229F00000

2144229F00000

Unit Price

5
PLATE, CLUTCH DRIVE

21441-29F20-000   2144129F20000

2144129F20000

Unit Price

6
PLATE, CLUTCH DRIVEN (T:1.6)
PLATE, CLUTCH DRIVEN (T:1.6)

21451-28C31-000   2145128C31000

2145128C31000

Unit Price

7
DISC, CLUTCH PRESSURE
DISC, CLUTCH PRESSURE

21462-14301-000   2146214301000

2146214301000

Unit Price

8
SEAT, WAVE WASHER

21471-17G00-000   2147117G00000

2147117G00000

Unit Price

9
WASHER, CLUTCH PLATE WAVE

21472-17G00-000   2147217G00000

2147217G00000

Unit Price

10
BOLT (6X30)

09116-06203-000   0911606203000

0911606203000

Unit Price

11
DRIVE SPROCKET NUT<br />NUT
DRIVE SPROCKET NUT
NUT

09140-20001-000   0914020001000

0914020001000

Unit Price

12
WASHER (20X36X3)
WASHER (20X36X3)

09160-20067-000   0916020067000

0916020067000

Unit Price

13
WASHER<br />LOCK WASHER
WASHER
LOCK WASHER

09167-20006-000   0916720006000

0916720006000

Unit Price

14
ROD, PUSH RH
ROD, PUSH RH

23110-44111-000   2311044111000

2311044111000

Unit Price

15
ROD,CLUTCH PUSH,L<br />ROD, CLUTCH PUSH LH
ROD, CLUTCH PUSH, L
ROD, CLUTCH PUSH LH

23111-24A01-000   2311124A01000

2311124A01000

Unit Price

16
PIECE, CLUTCH PUSH
PIECE, CLUTCH PUSH

23121-44100-000   2312144100000

2312144100000

Unit Price

17
SCREW ASSY, CLUTCH RELEASE
SCREW ASSY, CLUTCH RELEASE

23200-11D00-000   2320011D00000

2320011D00000

Unit Price

18
SCREW<br />SCREW (6X25)
SCREW
SCREW (6X25)

09134-06010-000   0913406010000

0913406010000

Unit Price

19
NUT
NUT

08310-00067-000   0831000067000

0831000067000

Unit Price

20
SUPPORT,CL RLSE RETURN SPRING<br />SUPPORT, CLUTCH RELEASE
SUPPORT, CL RLSE RETURN SPRING
SUPPORT, CLUTCH RELEASE

23226-19F01-000   2322619F01000

2322619F01000

Unit Price

21
WASHER<br />WASHER (15.5X28X1)
WASHER
WASHER (15.5X28X1)

09160-15045-000   0916015045000

0916015045000

Unit Price

22
BEARING (15X28X2)
BEARING (15X28X2)

09263-15003-000   0926315003000

0926315003000

Unit Price

23
SEAL,OIL 6X34X5.5<br />OIL SEAL (6X34X5.5)
SEAL, OIL 6X34X5.5
OIL SEAL (6X34X5.5)

09285-06015-000   0928506015000

0928506015000

Unit Price

24
CL REL ARM SPRING<br />SPRING
CL REL ARM SPRING
SPRING

09443-08001-000   0944308001000

0944308001000

Unit Price

25
BOLT
BOLT

01500-0616B-000   015000616B000

015000616B000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
