Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

FRONT FORK (SV650SL2 E02)

FRONT FORK (SV650SL2 E24) FOR SUZUKI SV 650 2012

FRONT FORK (SV650SUL2 E24)

Item numbers

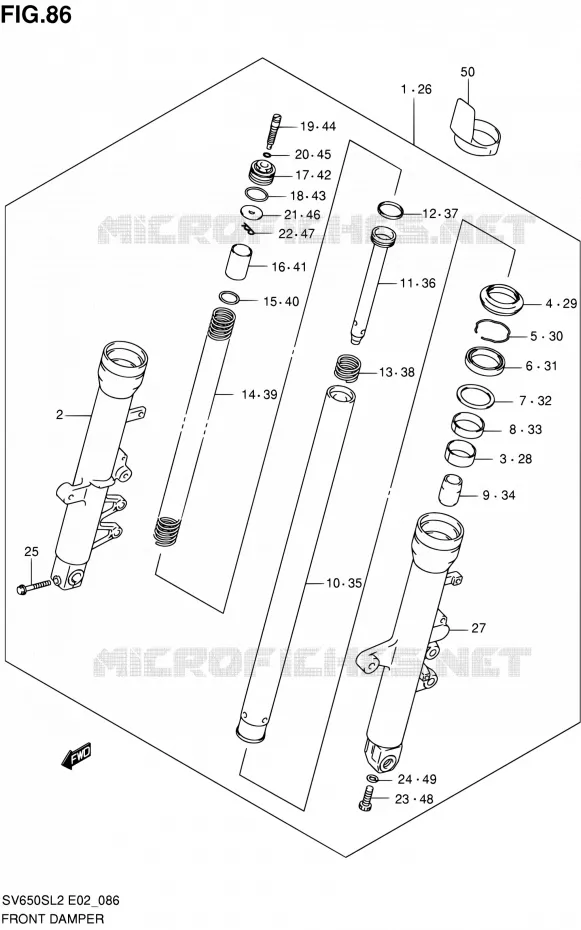

FRONT FORK (SV650SL2 E24) Suzuki MOTO 650 SV 2012 SV650SAL2(E24)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
1
DAMPER ASSY, FRONT FORK RH

51103-17GC0-000   5110317GC0000

5110317GC0000
Not available
2
TUBE, OUTER, R
.TUBE, OUTER RH

51130-17GA0-000   5113017GA0000

5113017GA0000

Unit Price

3
.BUSH, SLIDE

51121-42E00-000   5112142E00000

5112142E00000

Unit Price

4
.SEAL, DUST

51571-47D50-000   5157147D50000

5157147D50000

Unit Price

5
CIRCLIP,FORK OIL SEAL<br />.RING, STOPPER
CIRCLIP, FORK OIL SEAL
.RING, STOPPER

51556-38B00-000   5155638B00000

5155638B00000

Unit Price

6
.SEAL, OIL
.SEAL, OIL

51153-08D00-000   5115308D00000

5115308D00000

Unit Price

7
.SPACER, SEAL
.SPACER, SEAL

51168-38B00-000   5116838B00000

5116838B00000

Unit Price

8
.BUSH, GUIDE

51152-17G00-000   5115217G00000

5115217G00000

Unit Price

9
.PIECE, OIL LOCK
.PIECE, OIL LOCK

51195-48B31-000   5119548B31000

5119548B31000

Unit Price

10
.TUBE, INNER

51110-17G00-000   5111017G00000

5111017G00000

Unit Price

11
.CYLINDER

51146-17G20-000   5114617G20000

5114617G20000

Unit Price

12
.RING, PISTON
.RING, PISTON

51196-12C00-000   5119612C00000

5119612C00000

Unit Price

13
.SPRING, REBOUND

51177-17G50-000   5117717G50000

5117717G50000

Unit Price

14
SPRING, FR
.SPRING, FRONT

51171-17G20-000   5117117G20000

5117117G20000

Unit Price

15
.JOINT, SPRING
.JOINT, SPRING

51192-19C00-000   5119219C00000

5119219C00000

Unit Price

16
DISCONTINUE
.COLLAR, SPRING

51176-17G50-000   5117617G50000

5117617G50000
Not available
17
.BOLT, FORK
.BOLT, FORK

51189-12C00-000   5118912C00000

5118912C00000

Unit Price

18
.O RING
.O RING

51117-12C00-000   5111712C00000

5111712C00000

Unit Price

19
.ADJUSTER BOLT, SPRING

51185-17G00-000   5118517G00000

5118517G00000

Unit Price

20
O RING,ROCKER SHAFT<br />.O RING (D:1.9,ID:8.6)
O RING, ROCKER SHAFT
.O RING (D:1.9, ID:8.6)

09280-09005-000   0928009005000

0928009005000

Unit Price

21
.SEAT, SPRING
.SEAT, SPRING

51186-12C00-000   5118612C00000

5118612C00000

Unit Price

22
.PIN, SEAT SPRING
.PIN, SEAT SPRING

51188-32B00-000   5118832B00000

5118832B00000

Unit Price

23
BOLT(8X27)<br />.BOLT
BOLT(8X27)
.BOLT

51147-48130-000   5114748130000

5114748130000

Unit Price

24
.GASKET
.GASKET

51148-36011-000   5114836011000

5114836011000

Unit Price

25
BOLT(8X40)
.BOLT

51328-03FK0-000   5132803FK0000

5132803FK0000

Unit Price

26
DAMPER ASSY, FRONT FORK LH

51104-17GC0-000   5110417GC0000

5110417GC0000
Not available
27
TUBE, OUTER, L
.TUBE, OUTER LH

51140-17GA0-000   5114017GA0000

5114017GA0000

Unit Price

28
.BUSH, SLIDE

51121-42E00-000   5112142E00000

5112142E00000

Unit Price

29
.SEAL, DUST

51571-47D50-000   5157147D50000

5157147D50000

Unit Price

30
CIRCLIP,FORK OIL SEAL<br />.RING, STOPPER
CIRCLIP, FORK OIL SEAL
.RING, STOPPER

51556-38B00-000   5155638B00000

5155638B00000

Unit Price

31
.SEAL, OIL
.SEAL, OIL

51153-08D00-000   5115308D00000

5115308D00000

Unit Price

32
.SPACER, SEAL
.SPACER, SEAL

51168-38B00-000   5116838B00000

5116838B00000

Unit Price

33
.BUSH, GUIDE

51152-17G00-000   5115217G00000

5115217G00000

Unit Price

34
.PIECE, OIL LOCK
.PIECE, OIL LOCK

51195-48B31-000   5119548B31000

5119548B31000

Unit Price

35
.TUBE, INNER

51110-17G00-000   5111017G00000

5111017G00000

Unit Price

36
.CYLINDER

51146-17G20-000   5114617G20000

5114617G20000

Unit Price

37
.RING, PISTON
.RING, PISTON

51196-12C00-000   5119612C00000

5119612C00000

Unit Price

38
.SPRING, REBOUND

51177-17G50-000   5117717G50000

5117717G50000

Unit Price

39
SPRING, FR
.SPRING, FRONT

51171-17G20-000   5117117G20000

5117117G20000

Unit Price

40
.JOINT, SPRING
.JOINT, SPRING

51192-19C00-000   5119219C00000

5119219C00000

Unit Price

41
DISCONTINUE
.COLLAR, SPRING

51176-17G50-000   5117617G50000

5117617G50000
Not available
42
.BOLT, FORK
.BOLT, FORK

51189-12C00-000   5118912C00000

5118912C00000

Unit Price

43
.O RING
.O RING

51117-12C00-000   5111712C00000

5111712C00000

Unit Price

44
.ADJUSTER BOLT, SPRING

51185-17G00-000   5118517G00000

5118517G00000

Unit Price

45
O RING,ROCKER SHAFT<br />.O RING (D:1.9,ID:8.6)
O RING, ROCKER SHAFT
.O RING (D:1.9, ID:8.6)

09280-09005-000   0928009005000

0928009005000

Unit Price

46
.SEAT, SPRING
.SEAT, SPRING

51186-12C00-000   5118612C00000

5118612C00000

Unit Price

47
.PIN, SEAT SPRING
.PIN, SEAT SPRING

51188-32B00-000   5118832B00000

5118832B00000

Unit Price

48
BOLT(8X27)<br />.BOLT
BOLT(8X27)
.BOLT

51147-48130-000   5114748130000

5114748130000

Unit Price

49
.GASKET
.GASKET

51148-36011-000   5114836011000

5114836011000

Unit Price

50
PROTECTOR

51201-32F00-000   5120132F00000

5120132F00000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
