RADIATOR

RADIATOR HOSE - EXPANSION TANK FOR SUZUKI SV 650 2012

ANTI POLLUTION SYSTEM

Item numbers

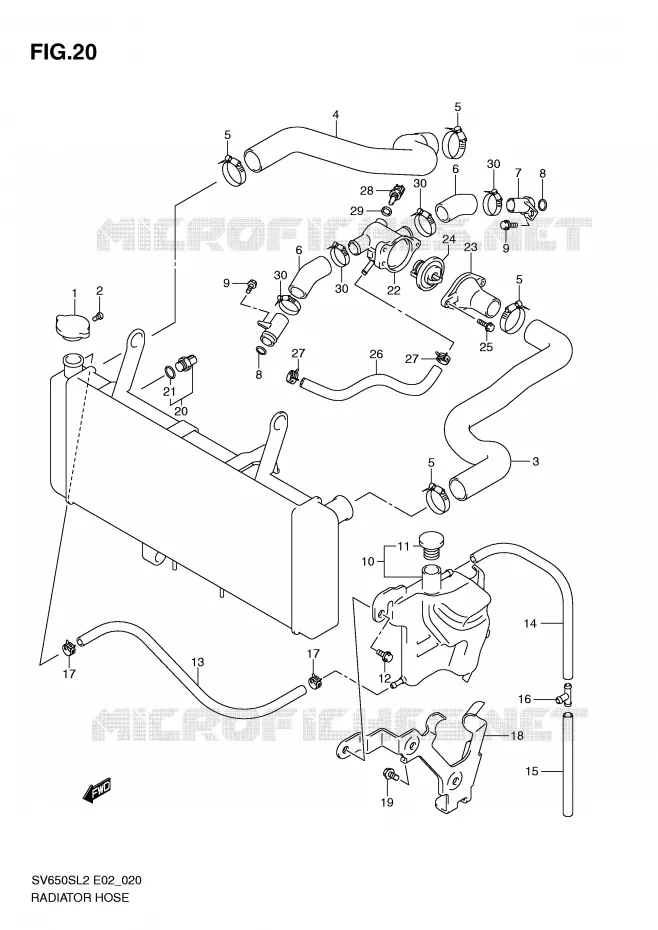

RADIATOR HOSE - EXPANSION TANK Suzuki MOTO 650 SV 2012 SV650SL2(E02)
1
2
3
4
5
5
5
5
6
6
7
8
8
9
9
10
11
12
13
14
15
16
17
17
18
19
20
21
22
23
24
25
26
27
27
28
29
30
30
30
30
1
CAP, RADIATOR (1.1)
CAP, RADIATOR (1.1)

17730-19D11-000   1773019D11000

1773019D11000

Unit Price

2
SCREW, RADIATOR CAP
SCREW, RADIATOR CAP

17733-03D10-000   1773303D10000

1773303D10000

Unit Price

3
HOSE, RADIATOR INLET

17851-17G10-000   1785117G10000

1785117G10000

Unit Price

4
HOSE, RADIATOR OUTLET

17852-17G20-000   1785217G20000

1785217G20000

Unit Price

5
CLAMP

09402-38512-000   0940238512000

0940238512000

Unit Price

6
HOSE, CONNECTOR INLET
HOSE, CONNECTOR INLET

17853-19F00-000   1785319F00000

1785319F00000

Unit Price

7
UNION, CONNECTOR HOSE
UNION, CONNECTOR HOSE

17890-06G20-000   1789006G20000

1789006G20000

Unit Price

8
O RING

09280-18008-000  

09280-18009-000
 0928018008000

Unit Price

9
BOLT

07130-0612A-000   071300612A000

071300612A000

Unit Price

10
TANK ASSY, RESERVOIR

17910-17G10-000   1791017G10000

1791017G10000

Unit Price

11
CAP, RESERVOIR TANK
CAP, RESERVOIR TANK

17931-02FA0-000   1793102FA0000

1793102FA0000

Unit Price

12
BOLT
BOLT (6X12)

09111-06085-000   0911106085000

0911106085000

Unit Price

13
HOSE<br />HOSE (5X9X600)
HOSE
HOSE (5X9X600)

09352-50901-600   0935250901600

0935250901600

Unit Price

14
HOSE<br />HOSE (5X9X600)
HOSE
HOSE (5X9X600)

09352-50901-600   0935250901600

0935250901600

Unit Price

15
HOSE(7X10.2X600)
HOSE(7X10.2X600)

09352-70103-600  

09352-70104-600
 0935270103600

Unit Price

16
3 WAY

09367-08005-000   0936708005000

0936708005000

Unit Price

17
CLIP
CLIP

09401-08411-000  

0940108411000
Not available
18
BRACKET, RESERVOIR TANK

17920-17G10-000   1792017G10000

1792017G10000

Unit Price

19
BOLT
BOLT

01550-0610A-000  

01550-0610B-000
 015500610A000

Unit Price

20
SWITCH COMP, RDTR FAN

17680-50F10-000  

17680-50F11-000
 1768050F10000

Unit Price

21
O RING
O RING

17689-50F00-000   1768950F00000

1768950F00000
Not available
22
CONNECTOR, THERMOSTAT INLET
CONNECTOR, THERMOSTAT INLET

17662-02F11-000   1766202F11000

1766202F11000

Unit Price

23
CAP, THERMOSTAT CONNECTOR
CAP, THERMOSTAT CONNECTOR

17663-17G00-000   1766317G00000

1766317G00000

Unit Price

24
THERMOSTAT COMP, WATER

17670-06G70-000  

17670-06G71-000
 1767006G70000

Unit Price

25
BOLT
BOLT

01550-0616B-000   015500616B000

015500616B000

Unit Price

26
HOSE, CONNECTOR TO WATER PUMP
HOSE, CONNECTOR TO WATER PUMP

17856-19F00-000   1785619F00000

1785619F00000

Unit Price

27
CLIP
CLIP

09401-12409-000  

09401-12414-000
 0940112409000

Unit Price

28
SENSOR, WATER TEMP

13650-57F00-000   1365057F00000

1365057F00000

Unit Price

29
WASHER<br />GASKET (12X17X1)
WASHER
GASKET (12X17X1)

09168-12017-000   0916812017000

0916812017000

Unit Price

30
CLAMP

09402-28513-000   0940228513000

0940228513000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
