TRANSMISSION (SV650SAL2 E24)

GEAR SHIFTING ASSY FOR SUZUKI SV 650 2012

STAND

Item numbers

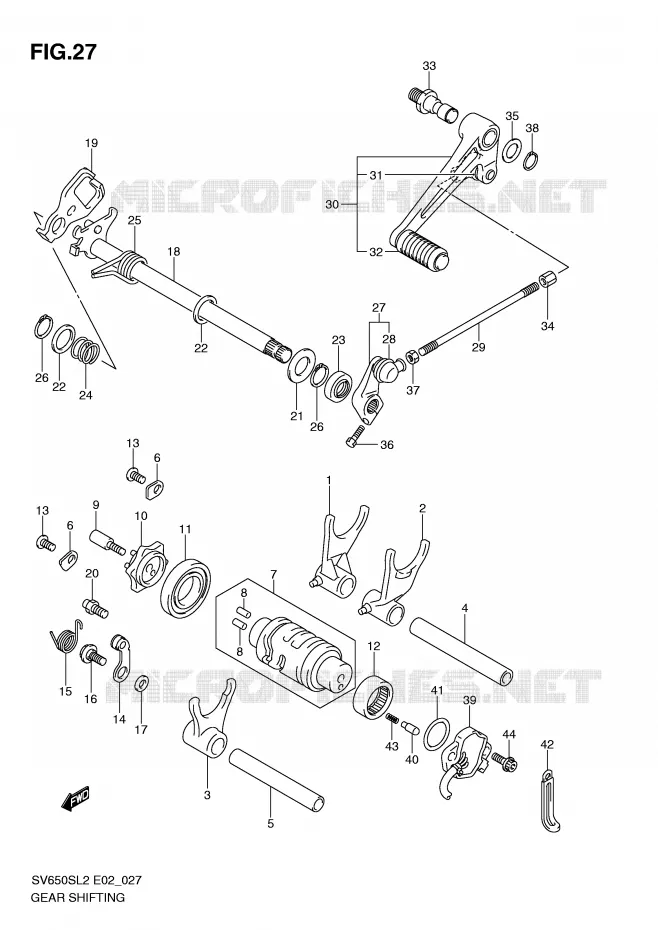

GEAR SHIFTING ASSY Suzuki MOTO 650 SV 2012 SV650SUL2(E02)
1
2
3
4
5
6
6
7
8
8
9
10
11
12
13
13
14
15
16
17
18
19
20
21
22
22
23
24
25
26
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
1
FORK, GEAR SHIFT NO.1
FORK, GEAR SHIFT NO.1

25211-42E10-000   2521142E10000

2521142E10000

Unit Price

2
FORK, GEAR SHIFT NO.2
FORK, GEAR SHIFT NO.2

25221-42E10-000   2522142E10000

2522142E10000

Unit Price

3
FORK, GEAR SHIFT NO.3
FORK, GEAR SHIFT NO.3

25231-42E10-000   2523142E10000

2523142E10000

Unit Price

4
SHAFT,GEAR SHIFT FORK<br />SHAFT, GEAR SHIFT FORK NO.1
SHAFT, GEAR SHIFT FORK
SHAFT, GEAR SHIFT FORK NO.1

25411-26D01-000   2541126D01000

2541126D01000

Unit Price

5
SHAFT,GEAR SHIFT FORK NO.1<br />SHAFT, GEAR SHIFT FORK NO.2
SHAFT, GEAR SHIFT FORK NO.1
SHAFT, GEAR SHIFT FORK NO.2

25411-44B00-000   2541144B00000

2541144B00000

Unit Price

6
RETAINER<br />RETAINER, SHIFT CAM BEARING
RETAINER
RETAINER, SHIFT CAM BEARING

24741-21A00-000   2474121A00000

2474121A00000

Unit Price

7
CAM, GEAR SHIFT

25310-19F00-000   2531019F00000

2531019F00000

Unit Price

8
PIN
PIN

04221-04089-000   0422104089000

0422104089000

Unit Price

9
BOLT, GEAR SHIFT CAM PLATE
PIN, SHIFT CAM DRIVEN GEAR

25312-42F01-000   2531242F01000

2531242F01000

Unit Price

10
PLATE, GEAR SHIFT CAM

25381-19F10-000   2538119F10000

2538119F10000

Unit Price

11
BEARING, ROLLER KOYO<br />BEARING (25X47X8)
BEARING, ROLLER KOYO
BEARING (25X47X8)

09262-25006-000   0926225006000

0926225006000

Unit Price

12
R BEARING 25X32X12<br />BEARING (25X32X12)
R BEARING 25X32X12
BEARING (25X32X12)

09263-25018-000   0926325018000

0926325018000

Unit Price

13
SCREW

02112-0612A-000  

02112-0612B-000
 021120612A000

Unit Price

14
STOPPER,SHIFT CAM
STOPPER, SHIFT CAM

25350-35F00-000  

25350-35F10-000
 2535035F00000

Unit Price

15
SPRING,SHIFT<br />SPRING, GEAR SHIFT STOPPER
SPRING, SHIFT
SPRING, GEAR SHIFT STOPPER

25355-35F01-000   2535535F01000

2535535F01000

Unit Price

16
BOLT<br />BOLT (6X14.3)
BOLT
BOLT (6X14.3)

09111-06041-000   0911106041000

0911106041000

Unit Price

17
THRUST WASHER<br />WASHER
THRUST WASHER
WASHER

08211-06141-000   0821106141000

0821106141000

Unit Price

18
SHAFT, GEAR SHIFT

25510-19F10-000   2551019F10000

2551019F10000

Unit Price

19
PLATE, GEAR SHIFT CAM DRIVE

25512-06G00-000   2551206G00000

2551206G00000

Unit Price

20
STOPPER,GEAR SHIFT ARM<br />STOPPER, RETURN SPRING
STOPPER, GEAR SHIFT ARM
STOPPER, RETURN SPRING

25671-01011-000   2567101011000

2567101011000

Unit Price

21
WASHER (14X29X0.8)
WASHER (14X29X0.8)

09160-14016-000   0916014016000

0916014016000

Unit Price

22
WASHER,GEAR SHIFT SH<br />SHIM (14X22X1)
WASHER, GEAR SHIFT SH
SHIM (14X22X1)

09181-14167-000   0918114167000

0918114167000

Unit Price

23
SEAL, OIL(14X22X7.3)
OIL SEAL (14X22X7.3)

09283-14005-000   0928314005000

0928314005000

Unit Price

24
SPRING
SPRING

09440-17009-000   0944017009000

0944017009000

Unit Price

25
SPRING
SPRING

09444-20001-000   0944420001000

0944420001000

Unit Price

26
CIRCLIP
CIRCLIP

08331-3114A-000   083313114A000

083313114A000

Unit Price

27
ARM, GEAR SHIFT

25520-17G10-000  

25520-17G11-000
 2552017G10000

Unit Price

28
COVER,DUST
COVER, DUST

25526-47000-000  

25526-47001-000
 2552647000000

Unit Price

29
ROD,GEAR SHIFT LINK(L:165)
ROD, GEAR SHIFT LINK(L:165)

25525-21E50-000  

25525-07A10-000
 2552521E50000

Unit Price

30
LEVER ASSY, GEAR SHIFT

25600-17G00-000  

25600-17G02-000
 2560017G00000

Unit Price

31
COVER,DUST
COVER, DUST

25526-47000-000  

25526-47001-000
 2552647000000

Unit Price

32
RUBBER, GEAR SHIFT PEDAL
RUBBER, GEAR SHIFT PEDAL

25652-20C00-000   2565220C00000

2565220C00000

Unit Price

33
SHAFT, GEAR SHIFT LEVER

25617-03F10-000   2561703F10000

2561703F10000

Unit Price

34
NUT
NUT

09140-06025-000   0914006025000

0914006025000

Unit Price

35
SEAL WASHER<br />WASHER (12.5X20X1)
SEAL WASHER
WASHER (12.5X20X1)

09160-12011-000  

0916012011000
Not available
36
BOLT

01500-0620B-000   015000620B000

015000620B000

Unit Price

37
NUT
NUT

08310-00067-000   0831000067000

0831000067000

Unit Price

38
CIRCLIP
CIRCLIP

08331-3112A-000   083313112A000

083313112A000

Unit Price

39
BASE ASSY, GEAR SHIFT TERMINAL

37730-20F00-000   3773020F00000

3773020F00000

Unit Price

40
K S PAWL ROLLER<br />PIN (5X15.5)
K S PAWL ROLLER
PIN (5X15.5)

09209-05011-000   0920905011000

0920905011000

Unit Price

41
O RING<br />O RING (D:2.4,ID:26.2)
O RING
O RING (D:2.4, ID:26.2)

09280-26005-000   0928026005000

0928026005000
Not available
42
CLAMP, L:97
CLAMP (L:80)

09404-08419-000  

0940408419000
Not available
43
K S PAWL SPRING<br />SPRING
K S PAWL SPRING
SPRING

09440-04010-000   0944004010000

0944004010000

Unit Price

44
BOLT
BOLT

07120-0516A-000  

07120-0516B-000
 071200516A000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
