RADIATOR

RADIATOR HOSE FOR SUZUKI SV 650 2017

ANTI POLLUTION SYSTEM

Item numbers

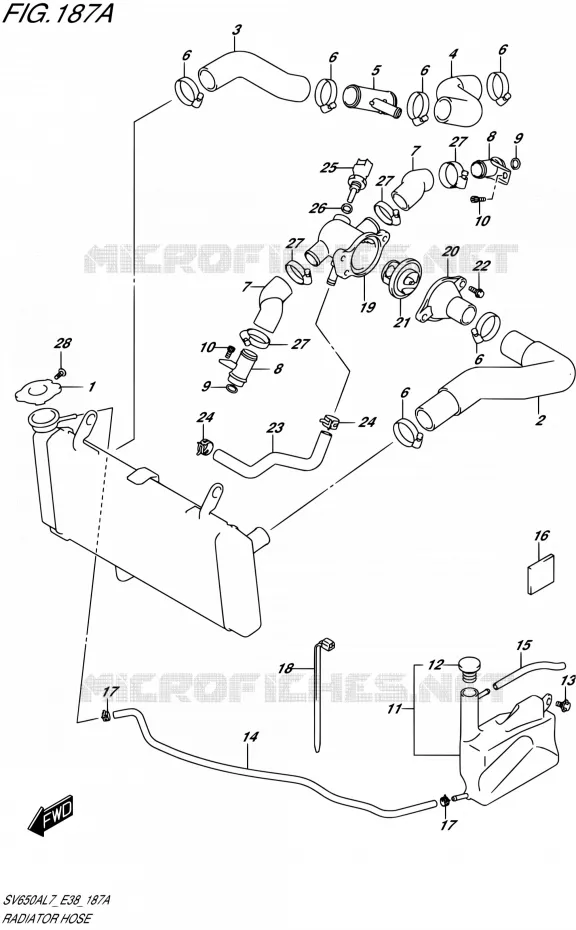

RADIATOR HOSE Suzuki MOTO 650 SV 2017 SV650A L7 (E38)
1
2
3
4
5
6
6
6
6
6
6
7
7
8
8
9
9
10
10
11
12
13
14
15
16
17
17
18
19
20
21
22
23
24
24
25
26
27
27
27
27
28
1
CAP, RADIATOR
CAP, RADIATOR (1.1)

17730-08D10-000   1773008D10000

1773008D10000

Unit Price

2
HOSE, RADIATOR INLET

17851-44H00-000   1785144H00000

1785144H00000

Unit Price

3
HOSE, RADIATOR OUTLET NO.1

17852-44H00-000   1785244H00000

1785244H00000

Unit Price

4
HOSE, RADIATOR OUTLET NO.2

17854-18K00-000   1785418K00000

1785418K00000

Unit Price

5
PIPE, WATER HOSE THREE WAY

17881-18K00-000   1788118K00000

1788118K00000

Unit Price

6
CLAMP, WATER HOSE
CLAMP

09402-35501-000   0940235501000

0940235501000

Unit Price

7
HOSE, CONNECTOR INLET
HOSE, CONNECTOR INLET

17853-19F00-000   1785319F00000

1785319F00000

Unit Price

8
UNION, CONNECTOR HOSE
UNION, CONNECTOR HOSE

17890-06G20-000   1789006G20000

1789006G20000

Unit Price

9
O RING

09280-18008-000  

09280-18009-000
 0928018008000

Unit Price

10
BOLT

07130-0612A-000   071300612A000

071300612A000

Unit Price

11
TANK ASSY, RESERVOIR

17910-18K00-000   1791018K00000

1791018K00000

Unit Price

12
.CAP, RESERVOIR TANK
.CAP, RESERVOIR TANK

17931-02FA0-000   1793102FA0000

1793102FA0000

Unit Price

13
BOLT (6X12)

09111-06083-000   0911106083000

0911106083000

Unit Price

14
HOSE, RESERVOIR TANK INLET

17981-44H00-000   1798144H00000

1798144H00000

Unit Price

15
HOSE<br />HOSE (5X9X600)
HOSE
HOSE (5X9X600)

09352-50901-600   0935250901600

0935250901600

Unit Price

16
CUSHION
CUSHION, RESERVOIR TANK

63191-25C00-000   6319125C00000

6319125C00000

Unit Price

17
CLIP
CLIP

09401-08411-000  

0940108411000
Not available
18
CLAMP,WIRING HARNESS<br />CLAMP (L:165)
CLAMP, WIRING HARNESS
CLAMP (L:165)

09407-18402-000   0940718402000

0940718402000

Unit Price

19
CONNECTOR, THERMOSTAT INLET
CONNECTOR, THERMOSTAT INLET

17662-02F11-000   1766202F11000

1766202F11000

Unit Price

20
CAP, THERMOSTAT CONNECTOR
CAP, THERMOSTAT CONNECTOR

17663-17G00-000   1766317G00000

1766317G00000

Unit Price

21
THERMOSTAT COMP, WATER

17670-06G60-000  

17670-06G61-000
 1767006G60000

Unit Price

22
BOLT

01547-0616A-000   015470616A000

015470616A000

Unit Price

23
HOSE, CONNECTOR TO WATER PUMP

17856-44H00-000   1785644H00000

1785644H00000

Unit Price

24
CLIP
CLIP

09401-12414-000   0940112414000

0940112414000

Unit Price

25
SENSOR, TEMP
SENSOR, WATER TEMPERATURE

13650-49X00-000   1365049X00000

1365049X00000

Unit Price

26
WASHER<br />GASKET (12X17X1)
WASHER
GASKET (12X17X1)

09168-12017-000   0916812017000

0916812017000

Unit Price

27
CLAMP

09402-28513-000   0940228513000

0940228513000

Unit Price

28
SCREW,RADIATOR CAP<br />SCREW
SCREW, RADIATOR CAP
SCREW

17733-03D10-000   1773303D10000

1773303D10000

Unit Price
