Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

RADIATOR

RADIATOR HOSE FOR SUZUKI SV 650 2017

CLUTCH

Item numbers

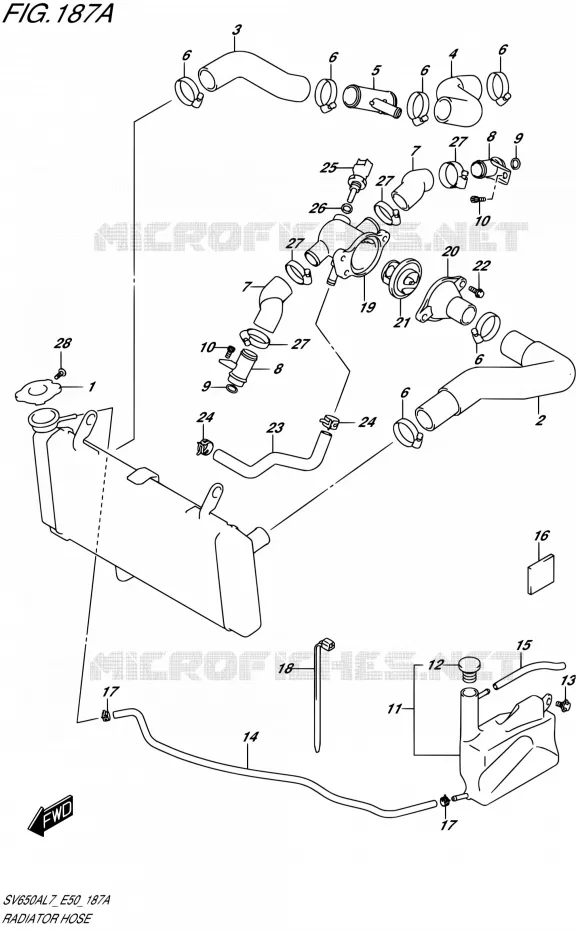

RADIATOR HOSE Suzuki MOTO 650 SV 2017 SV650A L7 (E50)
1
2
3
4
5
6
6
6
6
6
6
7
7
8
8
9
9
10
10
11
12
13
14
15
16
17
17
18
19
20
21
22
23
24
24
25
26
27
27
27
27
28
1
CAP, RADIATOR
CAP, RADIATOR (1.1)

17730-08D10-000   1773008D10000

1773008D10000

Unit Price

2
HOSE, RADIATOR INLET

17851-44H00-000   1785144H00000

1785144H00000

Unit Price

3
HOSE, RADIATOR OUTLET NO.1

17852-44H00-000   1785244H00000

1785244H00000

Unit Price

4
HOSE, RADIATOR OUTLET NO.2

17854-18K00-000   1785418K00000

1785418K00000

Unit Price

5
PIPE, WATER HOSE THREE WAY

17881-18K00-000   1788118K00000

1788118K00000

Unit Price

6
CLAMP, WATER HOSE
CLAMP

09402-35501-000   0940235501000

0940235501000

Unit Price

7
HOSE, CONNECTOR INLET
HOSE, CONNECTOR INLET

17853-19F00-000   1785319F00000

1785319F00000

Unit Price

8
UNION, CONNECTOR HOSE
UNION, CONNECTOR HOSE

17890-06G20-000   1789006G20000

1789006G20000

Unit Price

9
O RING

09280-18008-000  

09280-18009-000
 0928018008000

Unit Price

10
BOLT

07130-0612A-000   071300612A000

071300612A000

Unit Price

11
TANK ASSY, RESERVOIR

17910-18K00-000   1791018K00000

1791018K00000

Unit Price

12
.CAP, RESERVOIR TANK
.CAP, RESERVOIR TANK

17931-02FA0-000   1793102FA0000

1793102FA0000

Unit Price

13
BOLT (6X12)

09111-06083-000   0911106083000

0911106083000

Unit Price

14
HOSE, RESERVOIR TANK INLET

17981-44H00-000   1798144H00000

1798144H00000

Unit Price

15
HOSE<br />HOSE (5X9X600)
HOSE
HOSE (5X9X600)

09352-50901-600   0935250901600

0935250901600

Unit Price

16
CUSHION
CUSHION, RESERVOIR TANK

63191-25C00-000   6319125C00000

6319125C00000

Unit Price

17
CLIP
CLIP

09401-08411-000  

0940108411000
Not available
18
CLAMP,WIRING HARNESS<br />CLAMP (L:165)
CLAMP, WIRING HARNESS
CLAMP (L:165)

09407-18402-000   0940718402000

0940718402000

Unit Price

19
CONNECTOR, THERMOSTAT INLET
CONNECTOR, THERMOSTAT INLET

17662-02F11-000   1766202F11000

1766202F11000

Unit Price

20
CAP, THERMOSTAT CONNECTOR
CAP, THERMOSTAT CONNECTOR

17663-17G00-000   1766317G00000

1766317G00000

Unit Price

21
THERMOSTAT COMP, WATER

17670-06G60-000  

17670-06G61-000
 1767006G60000

Unit Price

22
BOLT

01547-0616A-000   015470616A000

015470616A000

Unit Price

23
HOSE, CONNECTOR TO WATER PUMP

17856-44H00-000   1785644H00000

1785644H00000

Unit Price

24
CLIP
CLIP

09401-12414-000   0940112414000

0940112414000

Unit Price

25
SENSOR, TEMP
SENSOR, WATER TEMPERATURE

13650-49X00-000   1365049X00000

1365049X00000

Unit Price

26
WASHER<br />GASKET (12X17X1)
WASHER
GASKET (12X17X1)

09168-12017-000   0916812017000

0916812017000

Unit Price

27
CLAMP

09402-28513-000   0940228513000

0940228513000

Unit Price

28
SCREW,RADIATOR CAP<br />SCREW
SCREW, RADIATOR CAP
SCREW

17733-03D10-000   1773303D10000

1773303D10000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
