Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

CASING

CASING FOR SUZUKI SV 650 2019

CRANKSHAFT

Item numbers

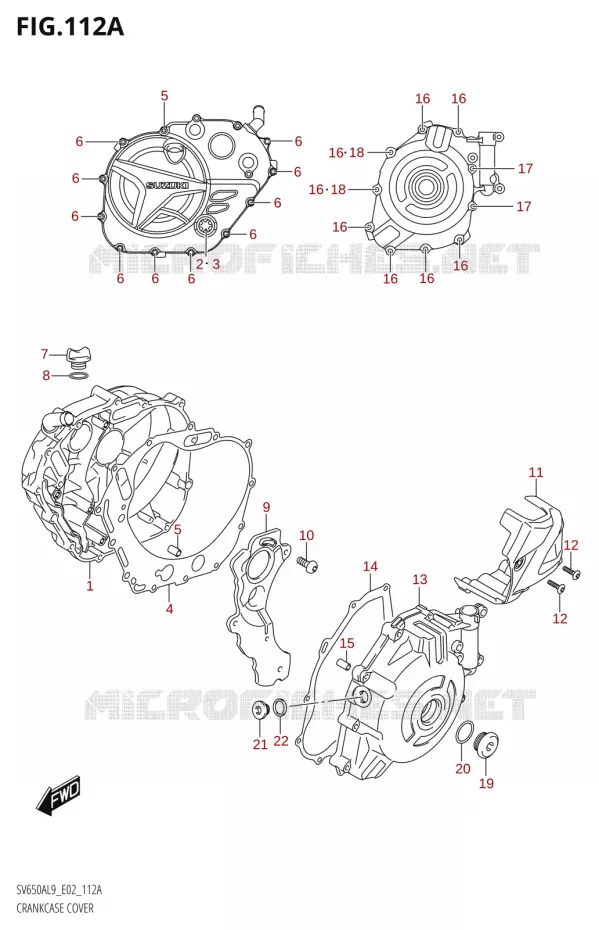

CASING Suzuki MOTO 650 SV 2019 SV650XA L9 (E02)
1
2
3
4
5
5
6
6
6
6
6
6
6
6
6
6
7
8
9
10
11
12
12
13
14
15
16
16
16
16
16
16
16
16
17
17
18
18
19
20
21
22
1
COVER COMP, CLUTCH
COVER, CLUTCH

11340-18K00-000   1134018K00000

1134018K00000

Unit Price

2
.LENS, OIL LEVEL CHECK
.LENS, OIL LEVEL CHECK

11971-33210-000   1197133210000

1197133210000

Unit Price

3
.CIRCLIP
.CIRCLIP

08331-4130A-000   083314130A000

083314130A000

Unit Price

4
GASKET, CLUTCH COVER

11482-44H00-000   1148244H00000

1148244H00000

Unit Price

5
PIN
PIN

04211-09149-000   0421109149000

0421109149000

Unit Price

6
BOLT, CLUTCH COVER(L3
BOLT

09103-06530-000   0910306530000

0910306530000

Unit Price

7
PLUG,ENGINE OIL FILLER<br />PLUG, OIL FILLER
PLUG, ENGINE OIL FILLER
PLUG, OIL FILLER

11971-25D00-000   1197125D00000

1197125D00000

Unit Price

8
O-RING,OIL FILLER<br />O RING (D:3.1,ID:16.8)
O-RING, OIL FILLER
O RING (D:3.1, ID:16.8)

09280-17003-000   0928017003000

0928017003000

Unit Price

9
SEPARATOR, OIL

11343-44H01-000   1134344H01000

1134344H01000

Unit Price

10
BOLT (6X12)

09106-06098-000   0910606098000

0910606098000

Unit Price

11
COVER COMP, ENG SPROCKET
COVER, ENG SPROCKET

11360-18K00-000   1136018K00000

1136018K00000

Unit Price

12
SCREW<br />SCREW (6X25)
SCREW
SCREW (6X25)

09139-06029-000   0913906029000

0913906029000

Unit Price

13
COVER, MAGNETO

11351-44H10-000   1135144H10000

1135144H10000

Unit Price

14
GASKET, MAGNETO COVER
GASKET, MAGNETO COVER

11483-19F00-000   1148319F00000

1148319F00000

Unit Price

15
PIN
PIN

04211-09149-000   0421109149000

0421109149000

Unit Price

16
BOLT, CLUTCH COVER(L3
BOLT (6X35)

09103-06530-000   0910306530000

0910306530000

Unit Price

17
BOLT, MAGNETO COVER(L65)
BOLT (6X65)

09103-06536-000   0910306536000

0910306536000

Unit Price

18
GASKET<br />GASKET (5.8X13X1.2)
GASKET
GASKET (5.8X13X1.2)

09168-06023-000   0916806023000

0916806023000
Not available
19
PLUG
PLUG

09259-26012-000   0925926012000

0925926012000

Unit Price

20
O-RING,CRK HOLE PLUG<br />O RING (D:3.1,ID:22.7)
O-RING, CRK HOLE PLUG
O RING (D:3.1, ID:22.7)

09280-22008-000   0928022008000

0928022008000

Unit Price

21
PLUG,OIL<br />PLUG (16X8)
PLUG, OIL
PLUG (16X8)

09248-16012-000   0924816012000

0924816012000

Unit Price

22
GASKET OIL GALLERY<br />GASKET (16X22X2)
GASKET OIL GALLERY
GASKET (16X22X2)

09168-16002-000   0916816002000

0916816002000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
