FUEL TANK

FRONT FAIRING BRACKET FOR SUZUKI V-STROM 650 2004

FAIRING

Item numbers

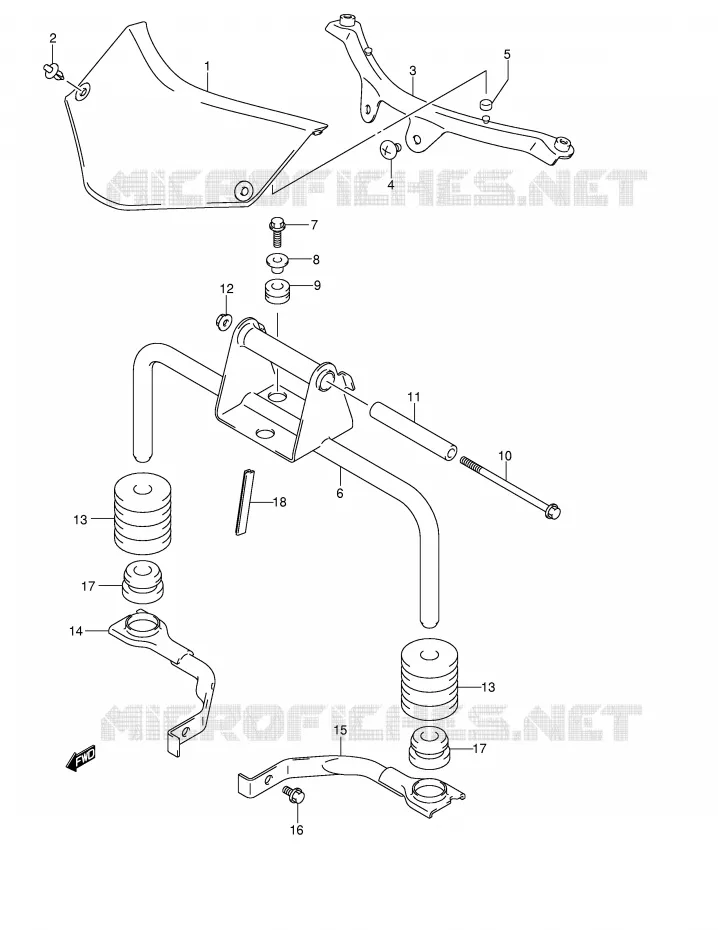

FRONT FAIRING BRACKET Suzuki MOTO 650 V-STROM 2004 DL650K4(E2)

1

COVER, FUEL TANK FR
COVER, FRONT (BLACK)

44171-06G10-291 4417106G10291

$56,97

Unit Price

1

COVER, FRONT (BLACK)

44171-06G00-291 4417106G00291

Not available

2

CLIP (BLACK)

09409-06314-5PK 09409063145PK

$4,97

Unit Price

3

BRACKET, FR COVER
BRACKET, COVER

44160-06G00-000 4416006G00000

$52,97

Unit Price

4

SCREW

02142-06123-000

02142-0612B-000

$2,97

Unit Price

5

CUSHION, FUEL TANK FR COVER
CUSHION, COVER

44164-06G00-000 4416406G00000

$15,97

Unit Price

6

BRACKET, FUEL TANK FR
BRACKET, FRONT

44520-06G00-000 4452006G00000

$76,97

Unit Price

7

BOLT

01550-06203-000

01550-0620B-000

$4,97

Unit Price

8

WASHER
SPACER

09169-06062-000 0916906062000

$4,97

Unit Price

9

09320-08527
CUSHION

09320-08001-000 0932008001000

Not available

10

BOLT

01550-06953-000

01550-0695B-000

$6,97

Unit Price

11

SPACER, FUEL TANK
SPACER

44561-35F00-000 4456135F00000

$20,97

Unit Price

12

NUT

08319-31063-000

08319-3106A-000

$3,97

Unit Price

13

CUSHION, FUEL TANK FR
CUSHION

44511-06G00-000 4451106G00000

$19,97

Unit Price

14

BRACKET, SIDE RH

44560-06G00-000 4456006G00000

Not available

15

BRACKET, SIDE LH

44570-06G00-000 4457006G00000

Not available

16

BOLT

01550-06123-000

01550-0612B-000

$3,97

Unit Price

17

CUSHION

09320-12054-000

Not available

18

MOLDING
MOLDING, COVER

68241-04X50-00B 6824104X5000B

$35,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FRONT FAIRING BRACKET of your Suzuki V-STROM 650 of V-STROM. Let us know if you have any questions.
