FUEL PUMP

OIL COOLER FOR SUZUKI V-STROM 650 2006

WATER PUMP

Item numbers

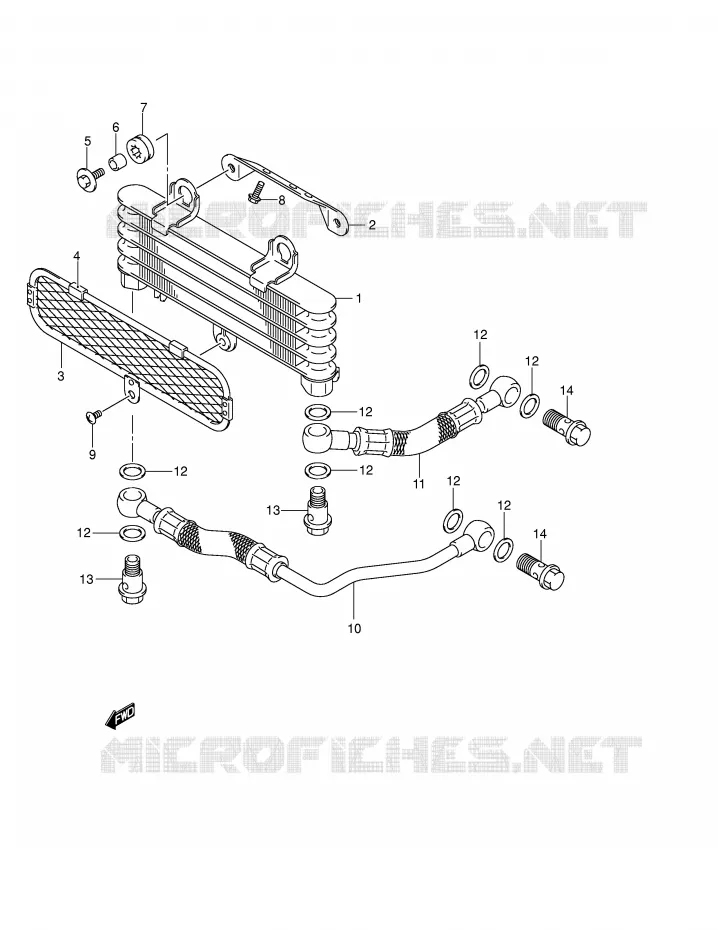

OIL COOLER Suzuki MOTO 650 V-STROM 2006 DL650U3K6(E2)

1

COOLER ASSY, OIL

16600-27G00-000 1660027G00000

$869,97

Unit Price

2

BRACKET, OIL COOLER

16620-27G00-000 1662027G00000

$17,97

Unit Price

3

DISCONTINUE
GUARD COMP, OIL COOLER

16650-27G00-000

Not available

4

PROTECTOR, CTR

17765-09F00-000

17765-09F01-000

$5,97

Unit Price

5

BOLT

09116-06167-000 0911606167000

$3,97

Unit Price

6

SPACER

09180-06310-000 0918006310000

$3,97

Unit Price

7

RR COMB LAMP CUSHION
CUSHION

09320-09009-000 0932009009000

$7,97

Unit Price

8

01550-0616A
BOLT

01550-06163-000

Not available

9

SCREW

02142-05103-000

02142-0510A-000

$2,97

Unit Price

10

HOSE COMP, OIL COOLER

16460-17G00-000

16460-17G01-000

$273,97

Unit Price

11

HOSE, OIL COOLER, L
HOSE, OIL COOLER LH

16470-17G00-000 1647017G00000

$147,97

Unit Price

12

GASKET(14X20X1.5)
GASKET, OIL COOLER HOSE

09168-14015-000

Not available

13

BOLT, OIL HOSE UNION
BOLT

09360-12012-000

Not available

14

BOLT, 14X27
BOLT

09360-14012-000 0936014012000

$17,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the OIL COOLER of your Suzuki of V-STROM. Let us know if you have any questions.
