Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

RADIATOR

RADIATOR HOSE - EXPANSION TANK FOR SUZUKI V-STROM 650 2007

ANTI POLLUTION SYSTEM

Item numbers

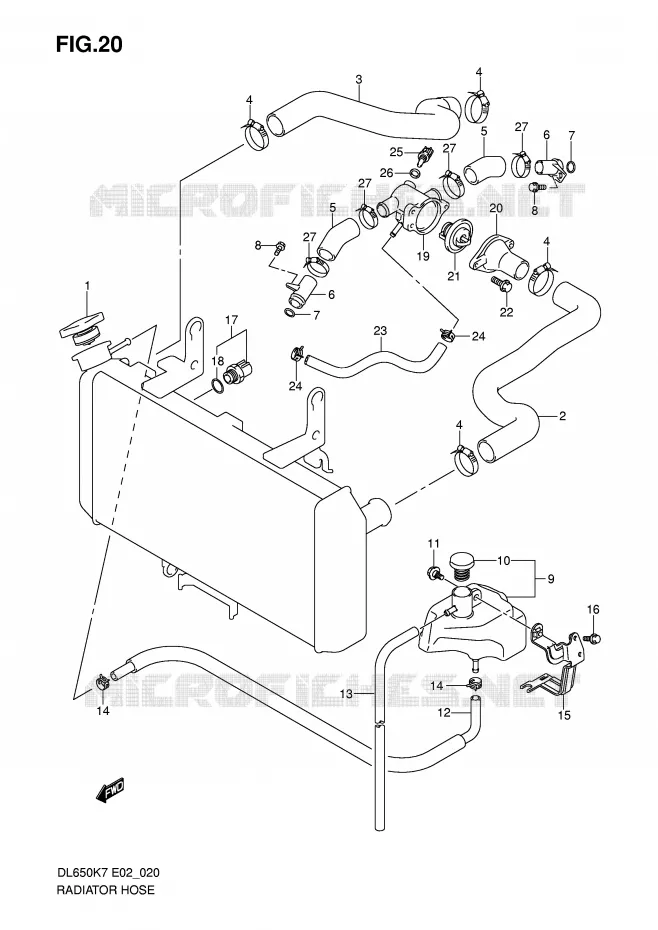

RADIATOR HOSE - EXPANSION TANK Suzuki MOTO 650 V-STROM 2007 DL650AK7(E2)
1
2
3
4
4
4
4
5
5
6
6
7
7
8
9
10
11
12
13
14
14
15
16
17
18
19
20
21
22
23
24
24
25
26
27
27
27
27
1
CAP, RADIATOR

17730-12C20-000  

17730-08J00-000
 1773012C20000

Unit Price

2
HOSE, RADIATOR INLET

17851-27G00-000   1785127G00000

1785127G00000

Unit Price

3
HOSE, RADIATOR OUTLET

17852-27G10-000   1785227G10000

1785227G10000

Unit Price

4
CLAMP

09402-38512-000   0940238512000

0940238512000

Unit Price

5
HOSE, CONNECTOR INLET
HOSE, CONNECTOR INLET

17853-19F00-000   1785319F00000

1785319F00000

Unit Price

6
UNION, CONNECTOR HOSE
UNION, CONNECTOR HOSE

17890-06G20-000   1789006G20000

1789006G20000

Unit Price

7
O RING
O RING

09280-18009-000   0928018009000

0928018009000

Unit Price

8
BOLT

07130-0612A-000   071300612A000

071300612A000

Unit Price

9
TANK ASSY, RESERVOIR

17910-27G10-000   1791027G10000

1791027G10000

Unit Price

10
CAP, RESERVOIR TANK
CAP, RESERVOIR TANK

17931-02FA0-000   1793102FA0000

1793102FA0000

Unit Price

11
BOLT

09111-06085-000   0911106085000

0911106085000

Unit Price

12
HOSE SET, RESERVOIR TANK INLET

17981-27G10-000  

17900-27810-000
 1798127G10000

Unit Price

13
HOSE,RESERVOIR TANK OUTLET<br />HOSE, RESERVOIR TANK OVERFLOW, NO.1
HOSE, RESERVOIR TANK OUTLET
HOSE, RESERVOIR TANK OVERFLOW, NO.1

17982-38810-000   1798238810000

1798238810000

Unit Price

14
CLIP
CLIP

09401-08411-000  

0940108411000
Not available
15
BRACKET, RESERVOIR TANK

17920-27G10-000   1792027G10000

1792027G10000

Unit Price

16
BOLT
BOLT

01550-0610A-000  

01550-0610B-000
 015500610A000

Unit Price

17
SWITCH COMP, RDTR FAN

17680-50F10-000  

17680-50F11-000
 1768050F10000

Unit Price

18
O RING
O RING

17689-50F00-000   1768950F00000

1768950F00000
Not available
19
CONNECTOR, THERMOSTAT INLET
CONNECTOR, THERMOSTAT INLET

17662-02F11-000   1766202F11000

1766202F11000

Unit Price

20
CAP, THERMOSTAT CONNECTOR
CAP, THERMOSTAT CONNECTOR

17663-17G00-000   1766317G00000

1766317G00000

Unit Price

21
THERMOSTAT COMP, WATER

17670-06G50-000  

17670-06G51-000
 1767006G50000

Unit Price

22
BOLT

01550-0616A-000   015500616A000

015500616A000

Unit Price

23
HOSE, CONNECTOR TO WATER PUMP
HOSE, CONNECTOR TO WATER PUMP

17856-19F00-000   1785619F00000

1785619F00000

Unit Price

24
CLIP
CLIP

09401-12409-000  

09401-12414-000
 0940112409000

Unit Price

25
SENSOR, WATER TEMP
SENSOR, WATER TEMPERATURE

13650-57F00-000   1365057F00000

1365057F00000

Unit Price

26
WASHER<br />GASKET
WASHER
GASKET

09168-12017-000   0916812017000

0916812017000

Unit Price

27
CLAMP

09402-28513-000   0940228513000

0940228513000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the RADIATOR HOSE - EXPANSION TANK of your Suzuki V-STROM 650 of V-STROM. Let us know if you have any questions.
