CRANKCASE COVER

CRANKSHAFT FOR SUZUKI V-STROM 650 2009

STARTER MOTOR CLUTCH

Item numbers

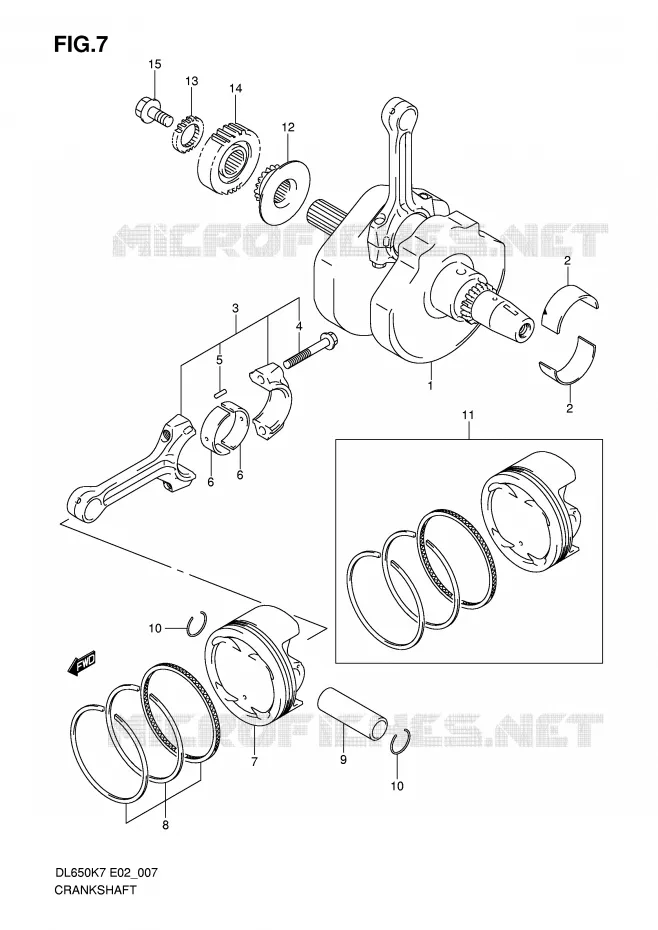

CRANKSHAFT Suzuki MOTO 650 V-STROM 2009 DL650AK9(E2)
1
2
2
2
2
2
2
2
2
2
2
2
2
3
4
5
6
6
6
6
6
6
6
6
7
8
8
9
10
10
11
11
12
13
14
15
1
CRANKSHAFT
CRANKSHAFT SET

12220-17G00-000   1222017G00000

1222017G00000

Unit Price

2
BEARING, CRANKSHAFT (GREEN)
BEARING, CRANKSHAFT (GREEN)

12229-27G00-0A0   1222927G000A0

1222927G000A0

Unit Price

2
BEARING, CRANKSHAFT (BLACK)
BEARING, CRANKSHAFT (BLACK)

12229-27G00-0B0   1222927G000B0

1222927G000B0

Unit Price

2
BEARING, CRANKSHAFT (BROWN)
BEARING, CRANKSHAFT (BROWN)

12229-27G00-0C0   1222927G000C0

1222927G000C0

Unit Price

2
BEARING, CRANKSHAFT

12229-44H00-0A0  

12229-44H10-0A0
 1222944H000A0

Unit Price

2
BEARING, CRANKSHAFT

12229-44H00-0B0  

12229-44H10-0B0
 1222944H000B0

Unit Price

2
BEARING, CRANKSHAFT

12229-44H00-0C0  

12229-44H10-0C0
 1222944H000C0

Unit Price

3
CONNECTING ROD ASSY

12160-17G10-000   1216017G10000

1216017G10000

Unit Price

4
BOLT, CONNECTING ROD

12163-24F10-000   1216324F10000

1216324F10000

Unit Price

5
PIN<br />PIN, CONNECTING ROD
PIN
PIN, CONNECTING ROD

04221-04089-000   0422104089000

0422104089000

Unit Price

6
BEARING,CRANK PIN<br />BEARING, CRANK PIN (GREEN)
BEARING, CRANK PIN
BEARING, CRANK PIN (GREEN)

12164-46E01-0A0   1216446E010A0

1216446E010A0

Unit Price

6
BEARING,CRANK PIN<br />BEARING, CRANK PIN (BLACK)
BEARING, CRANK PIN
BEARING, CRANK PIN (BLACK)

12164-46E01-0B0   1216446E010B0

1216446E010B0

Unit Price

6
BEARING,CRANK PIN<br />BEARING, CRANK PIN (BROWN)
BEARING, CRANK PIN
BEARING, CRANK PIN (BROWN)

12164-46E01-0C0   1216446E010C0

1216446E010C0

Unit Price

6
BEARING,CRANK PIN<br />BEARING, CRANK PIN (YELLOW)
BEARING, CRANK PIN
BEARING, CRANK PIN (YELLOW)

12164-46E01-0D0   1216446E010D0

1216446E010D0

Unit Price

7
PISTON

12111-20F10-0F0   1211120F100F0

1211120F100F0

Unit Price

8
RING SET, PISTON

12140-17G10-000  

12140-17G20-000
 1214017G10000

Unit Price

9
PIN, PISTON
PIN, PISTON

12151-05A00-000   1215105A00000

1215105A00000

Unit Price

10
CIRCLIP PISTON PIN<br />CIRCLIP
CIRCLIP PISTON PIN
CIRCLIP

09381-20004-000   0938120004000

0938120004000

Unit Price

11
PISTON SET (OS:0.5)

12100-17G20-050   1210017G20050

1210017G20050

Unit Price

11
DISCONTINUE
PISTON SET (OS:0.5)

12100-17G10-050   1210017G10050

1210017G10050
Not available
12
SPROCKET, CAM CHAIN DRIVE
SPROCKET, CAM CHAIN DRIVE

12731-19F00-000   1273119F00000

1273119F00000

Unit Price

13
GEAR, WATER PUMP DRIVE
GEAR, WATER PUMP DRIVE

17451-17G00-000   1745117G00000

1745117G00000

Unit Price

14
GEAR, PRIMARY DRIVE

21111-20F10-000   2111120F10000

2111120F10000

Unit Price

15
BOLT(10X19)<br />BOLT, PRIMARY DRIVE GEAR
BOLT(10X19)
BOLT, PRIMARY DRIVE GEAR

09103-10338-000   0910310338000

0910310338000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CRANKSHAFT of your Suzuki V-STROM 650 of V-STROM. Let us know if you have any questions.
