HANDLEBAR

LEVERS - HANDGRIPS (MODEL K7 / K8 / K9) FOR SUZUKI V-STROM 650 2009

LEVERS - HANDGRIPS (MODEL L0)

Item numbers

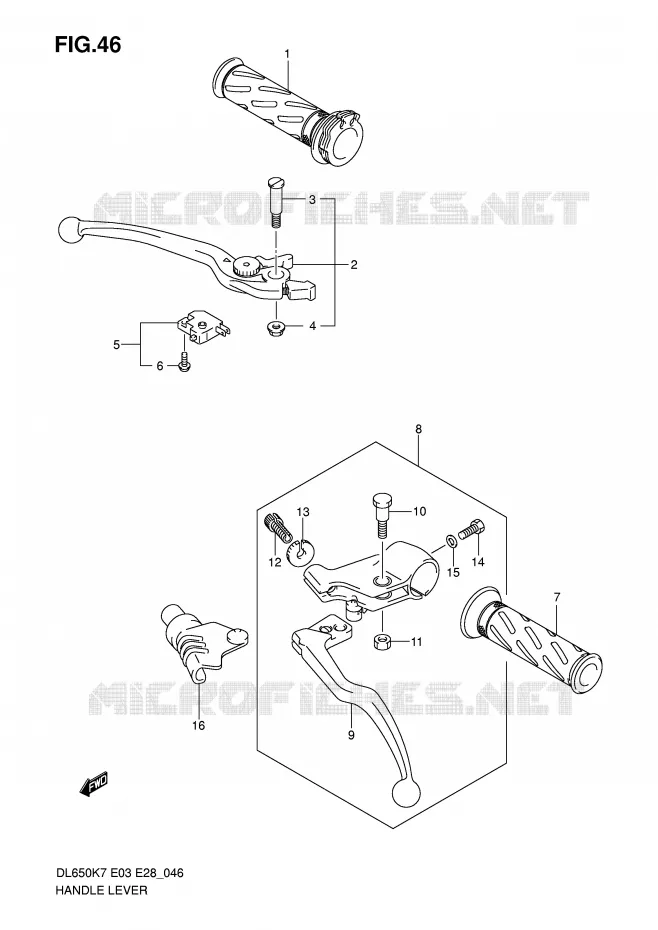

LEVERS - HANDGRIPS (MODEL K7/K8/K9) Suzuki MOTO 650 V-STROM 2009 DL650AK9(E3/E28)

1

GRIP, THROTTLE(BLACK)

57110-29G01-000

57110-29G02-291

$44,97

Unit Price

2

LEVER ASSY, BRAKE

57300-10G20-000

57300-10G32-000

$101,97

Unit Price

2

57300-44G01
LEVER ASSY, BRAKE

57300-44G00-000 5730044G00000

Not available

3

BOLT, LEVER
BOLT

57431-14G00-000 5743114G00000

$24,97

Unit Price

4

NUT

08319-2106A-000 083192106A000

$3,97

Unit Price

5

SWITCH ASSY, STOP

57460-17C11-000

57460-14J02-000

$38,97

Unit Price

6

SCREW, WITH WASHER(4X12)
SCREW

57465-17C00-000 5746517C00000

$2,97

Unit Price

7

GRIP, L(BLACK)

57211-22D01-000

57211-22D02-291

$21,97

Unit Price

8

LEVER ASSY, CLUTCH

57500-10D01-000

57500-10D31-000

$172,97

Unit Price

9

LEVER, CLUTCH
LEVER

57620-27A31-000 5762027A31000

$58,97

Unit Price

10

BOLT, LEVER SET
BOLT, PIVOT

57531-14A00-000 5753114A00000

$16,97

Unit Price

11

NUT

08319-2106B-000 083192106B000

$4,97

Unit Price

12

ADJUSTER, CABLE

57441-11010-000 5744111010000

$11,97

Unit Price

13

NUT, CABLE ADJUSTER
NUT, CABLE

57442-11010-000 5744211010000

$5,97

Unit Price

14

BOLT

01500-0620B-000 015000620B000

$2,97

Unit Price

15

WASHER

08322-0106B-000 083220106B000

$3,97

Unit Price

16

COVER, CLUTCH LEVER

57661-45C00-000

57661-45C01-000

$20,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the LEVERS - HANDGRIPS (MODEL K7/K8/K9) of your Suzuki V-STROM 650 of V-STROM. Let us know if you have any questions.

Genuine parts for Suzuki 650 V-STROM 2009
