CASING

CRANKSHAFT FOR SUZUKI V-STROM 650 2012

STARTER MOTOR CLUTCH

Item numbers

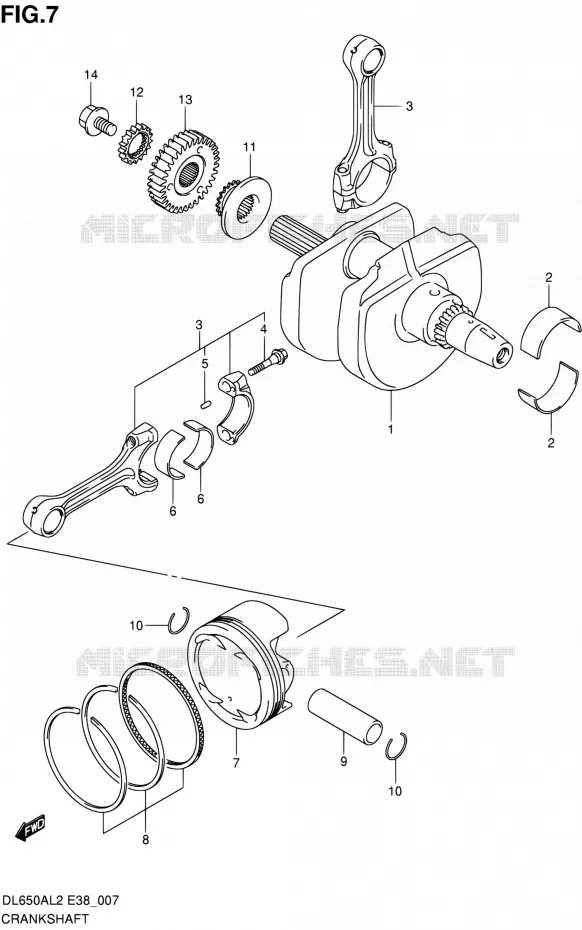

CRANKSHAFT Suzuki MOTO 650 V-STROM 2012 DL650A L2 (E38)
1
2
2
2
2
2
2
3
3
4
5
6
6
6
6
6
6
6
6
7
8
9
10
10
11
12
13
14
1
CRANKSHAFT

12220-44H10-000   1222044H10000

1222044H10000

Unit Price

2
BEARING, CRANKSHAFT

12229-44H00-0A0  

12229-44H10-0A0
 1222944H000A0

Unit Price

2
BEARING, CRANKSHAFT

12229-44H00-0B0  

12229-44H10-0B0
 1222944H000B0

Unit Price

2
BEARING, CRANKSHAFT

12229-44H00-0C0  

12229-44H10-0C0
 1222944H000C0

Unit Price

3
CONNECTING ROD ASSY

12160-17G10-000   1216017G10000

1216017G10000

Unit Price

4
.BOLT, CONNECTING ROD

12163-24F10-000   1216324F10000

1216324F10000

Unit Price

5
.PIN
.PIN

04221-04089-000   0422104089000

0422104089000

Unit Price

6
BEARING,CRANK PIN<br />BEARING, CRANK PIN (GREEN)
BEARING, CRANK PIN
BEARING, CRANK PIN (GREEN)

12164-46E01-0A0   1216446E010A0

1216446E010A0

Unit Price

6
BEARING,CRANK PIN<br />BEARING, CRANK PIN (BLACK)
BEARING, CRANK PIN
BEARING, CRANK PIN (BLACK)

12164-46E01-0B0   1216446E010B0

1216446E010B0

Unit Price

6
BEARING,CRANK PIN<br />BEARING, CRANK PIN (BROWN)
BEARING, CRANK PIN
BEARING, CRANK PIN (BROWN)

12164-46E01-0C0   1216446E010C0

1216446E010C0

Unit Price

6
BEARING,CRANK PIN<br />BEARING, CRANK PIN (YELLOW)
BEARING, CRANK PIN
BEARING, CRANK PIN (YELLOW)

12164-46E01-0D0   1216446E010D0

1216446E010D0

Unit Price

7
PISTON

12111-44H10-0F0   1211144H100F0

1211144H100F0
Not available
8
RING SET, PISTON

12140-15H00-000   1214015H00000

1214015H00000

Unit Price

9
PIN, PISTON
PIN, PISTON

12151-05A00-000   1215105A00000

1215105A00000

Unit Price

10
CIRCLIP PISTON PIN<br />CIRCLIP
CIRCLIP PISTON PIN
CIRCLIP

09381-20004-000   0938120004000

0938120004000

Unit Price

11
SPROCKET, CAM CHAIN DRIVE
SPROCKET, CAM CHAIN DRIVE

12731-19F00-000   1273119F00000

1273119F00000

Unit Price

12
GEAR, WATER PUMP DRIVE
GEAR, WATER PUMP DRIVE

17451-17G00-000   1745117G00000

1745117G00000

Unit Price

13
GEAR ASSY, PRIMARY DRIVE
GEAR, PRIMARY DRIVE

21100-44H00-000   2110044H00000

2110044H00000

Unit Price

14
BOLT (10X19)
BOLT (10X19)

09103-10338-000   0910310338000

0910310338000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CRANKSHAFT of your Suzuki V-STROM 650 of V-STROM. Let us know if you have any questions.
