Finish line

Parts catalogue

Parts diagram

LEVERS - HANDGRIPS

FRONT FORK FOR SUZUKI V-STROM 650 2012

STEERING COLUMN

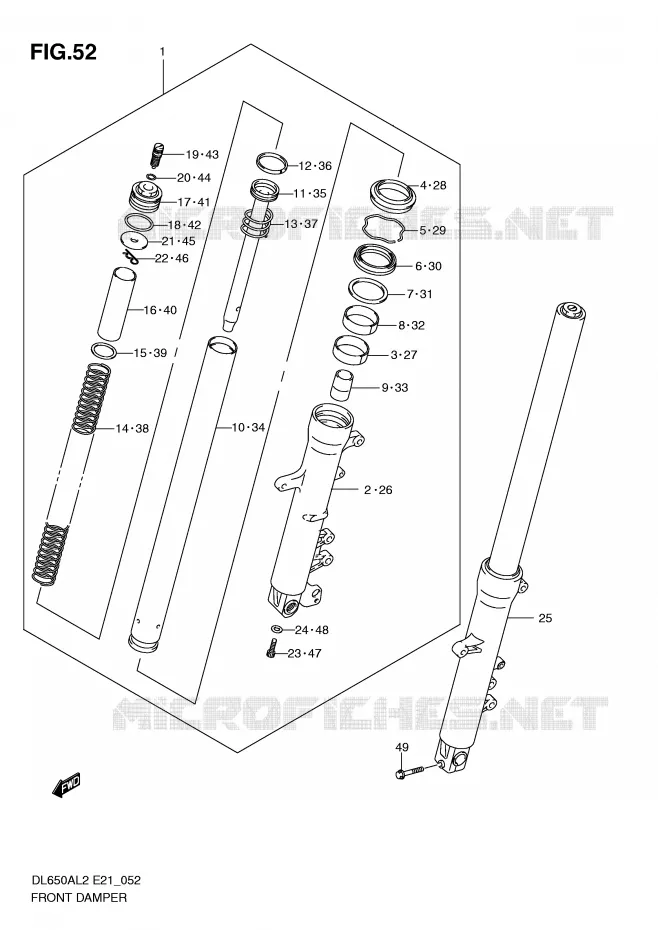

FRONT FORK Suzuki MOTO 650 V-STROM 2012 DL650AL2(E21)
1
DAMPER ASSY, FR FORK, R
DAMPER ASSY, FRONT FORK RH

51103-11J00-000   5110311J00000

5110311J00000

Unit Price

2
TUBE, OUTER, R
TUBE, OUTER RH

51131-11J00-000   5113111J00000

5113111J00000

Unit Price

3
BUSH, SLIDE

51121-11J00-000  

51121-11J10-000
 5112111J00000

Unit Price

4
SEAL, DUST

51173-27G00-000   5117327G00000

5117327G00000

Unit Price

5
CIRCLIP,FORK OIL SEAL<br />RING, STOPPER
CIRCLIP, FORK OIL SEAL
RING, STOPPER

51556-38B00-000   5155638B00000

5155638B00000

Unit Price

6
SEAL, OIL

51553-47H00-000  

51153-47H00-000
 5155347H00000

Unit Price

7
SPACER, SEAL
SPACER, SEAL

51168-17C00-000   5116817C00000

5116817C00000

Unit Price

8
BUSH, GUIDE

51152-47H00-000   5115247H00000

5115247H00000

Unit Price

9
PIECE, OIL LOCK

51195-27G00-000   5119527G00000

5119527G00000

Unit Price

10
PIPE, FORK

51110-11J00-000   5111011J00000

5111011J00000

Unit Price

11
PIPE SEAT

51146-11J00-000   5114611J00000

5114611J00000

Unit Price

12
RING, PISTON

51196-27G00-000   5119627G00000

5119627G00000

Unit Price

13
SPRING, REBOUND

51177-14D00-000   5117714D00000

5117714D00000

Unit Price

14
SPRING, FR
SPRING, FRONT

51171-11J00-000   5117111J00000

5117111J00000

Unit Price

15
SEAT,SPRING LWR<br />SEAT, SPRING, LOWER
SEAT, SPRING LWR
SEAT, SPRING, LOWER

51186-17C00-000   5118617C00000

5118617C00000

Unit Price

16
COLLAR, SPRING

51176-19C00-000   5117619C00000

5117619C00000

Unit Price

17
BOLT, FORK

51189-27G00-000   5118927G00000

5118927G00000

Unit Price

18
O RING
O RING

51117-17C00-000   5111717C00000

5111717C00000

Unit Price

19
ADJUSTER BOLT, SPRING

51185-27G00-000   5118527G00000

5118527G00000

Unit Price

20
O RING

51187-14D00-000   5118714D00000

5118714D00000

Unit Price

21
SEAT, SPRING
SEAT, SPRING

51186-12C00-000   5118612C00000

5118612C00000

Unit Price

22
PIN, SEAT SPRING
PIN, SEAT SPRING

51188-32B00-000   5118832B00000

5118832B00000

Unit Price

23
BOLT(8X27)<br />BOLT
BOLT(8X27)
BOLT

51147-48130-000   5114748130000

5114748130000

Unit Price

24
GASKET

51148-31030-000  

51148-36011-000
 5114831030000

Unit Price

25
DAMPER ASSY, FR FORK, L
DAMPER ASSY, FRONT FORK LH

51104-11J00-000   5110411J00000

5110411J00000

Unit Price

26
TUBE, OUTER, L
TUBE, OUTER LH

51141-11J00-000   5114111J00000

5114111J00000

Unit Price

27
BUSH, SLIDE

51121-11J00-000  

51121-11J10-000
 5112111J00000

Unit Price

28
SEAL, DUST

51173-27G00-000   5117327G00000

5117327G00000

Unit Price

29
CIRCLIP,FORK OIL SEAL<br />RING, STOPPER
CIRCLIP, FORK OIL SEAL
RING, STOPPER

51556-38B00-000   5155638B00000

5155638B00000

Unit Price

30
SEAL, OIL

51553-47H00-000  

51153-47H00-000
 5155347H00000

Unit Price

31
SPACER, SEAL
SPACER, SEAL

51168-17C00-000   5116817C00000

5116817C00000

Unit Price

32
BUSH, GUIDE

51152-47H00-000   5115247H00000

5115247H00000

Unit Price

33
PIECE, OIL LOCK

51195-27G00-000   5119527G00000

5119527G00000

Unit Price

34
PIPE, FORK

51110-11J00-000   5111011J00000

5111011J00000

Unit Price

35
PIPE SEAT

51146-11J00-000   5114611J00000

5114611J00000

Unit Price

36
RING, PISTON

51196-27G00-000   5119627G00000

5119627G00000

Unit Price

37
SPRING, REBOUND

51177-14D00-000   5117714D00000

5117714D00000

Unit Price

38
SPRING, FR
SPRING, FRONT

51171-11J00-000   5117111J00000

5117111J00000

Unit Price

39
SEAT,SPRING LWR<br />SEAT, SPRING, LOWER
SEAT, SPRING LWR
SEAT, SPRING, LOWER

51186-17C00-000   5118617C00000

5118617C00000

Unit Price

40
COLLAR, SPRING

51176-19C00-000   5117619C00000

5117619C00000

Unit Price

41
BOLT, FORK

51189-27G00-000   5118927G00000

5118927G00000

Unit Price

42
O RING
O RING

51117-17C00-000   5111717C00000

5111717C00000

Unit Price

43
ADJUSTER BOLT, SPRING

51185-27G00-000   5118527G00000

5118527G00000

Unit Price

44
O RING

51187-14D00-000   5118714D00000

5118714D00000

Unit Price

45
SEAT, SPRING
SEAT, SPRING

51186-12C00-000   5118612C00000

5118612C00000

Unit Price

46
PIN, SEAT SPRING
PIN, SEAT SPRING

51188-32B00-000   5118832B00000

5118832B00000

Unit Price

47
BOLT(8X27)<br />BOLT
BOLT(8X27)
BOLT

51147-48130-000   5114748130000

5114748130000

Unit Price

48
GASKET

51148-31030-000  

51148-36011-000
 5114831030000

Unit Price

49
BOLT, HOLDER AXLE(8X40)
BOLT

51328-27E30-000   5132827E30000

5132827E30000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FRONT FORK of your Suzuki V-STROM 650 of V-STROM. Let us know if you have any questions.
