FUEL TANK - COVERS

FRAME FOR SUZUKI V-STROM 650 2015

BATTERY BOX - TOOLS

Item numbers

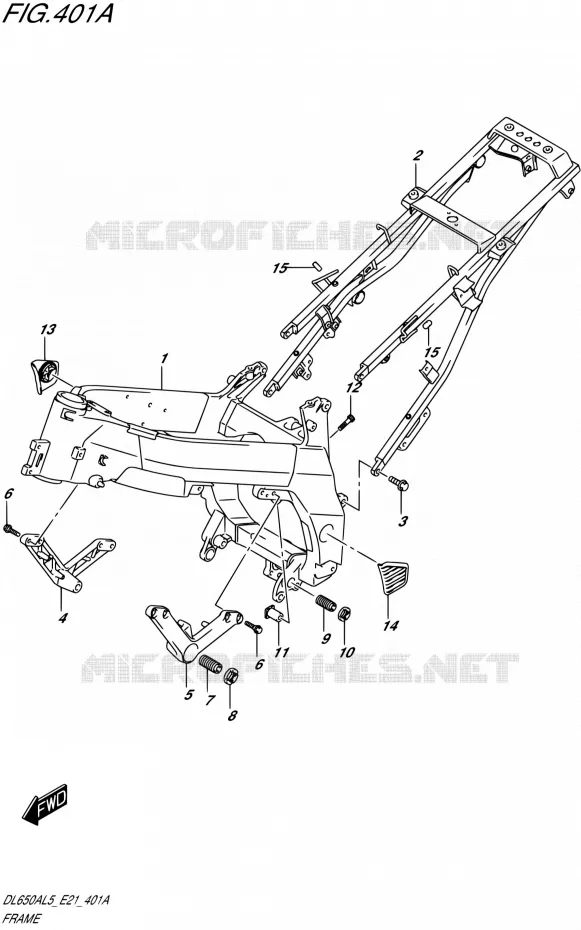

FRAME Suzuki MOTO 650 V-STROM 2015 DL650AUE L5 (E21)

1

FRAME (BLACK)

41100-27G50-YAP 4110027G50YAP

$5 383,97

Unit Price

2

RAIL, SEAT

41200-11J00-000

41200-11J02-000

$1 205,97

Unit Price

3

BOLT, CALIPER
BOLT (10X30)

09103-10379-000 0910310379000

$6,97

Unit Price

4

BRACKET, ENGINE MOUNTING, R
BRACKET, MOUNT RH (BLACK)

41911-06G90-YAP 4191106G90YAP

$489,97

Unit Price

5

BRACKET, ENGINE MOUNTING, L
BRACKET, MOUNT LH (BLACK)

41912-06G90-YAP 4191206G90YAP

$489,97

Unit Price

6

BOLT
BOLT (8X30)

09106-08121-000 0910608121000

$4,97

Unit Price

7

BOLT, CRANK CASE ADJUST CTR
BOLT, ADJUSTER CENTER

41923-16G00-000 4192316G00000

$27,97

Unit Price

8

NUT, CRANK CASE ADJUST CTR
NUT, ADJUSTER CENTER

41922-19F20-000 4192219F20000

$16,97

Unit Price

9

BOLT, CRANK CASE ADJUST LWR

41921-16G00-000

41921-16G01-000

$22,97

Unit Price

10

NUT, CRANK CASE ADJUST LWR
NUT, ADJUSTER LOWER

41922-33E20-000 4192233E20000

$19,97

Unit Price

11

SPACER, MOUNTING RR UPR RH
SPACER, ADJUSTER UPPER

41941-19F01-000 4194119F01000

$35,97

Unit Price

12

BOLT (8X38)

09106-08168-000 0910608168000

$5,97

Unit Price

13

COVER, PIVOT RH

43585-27G10-000 4358527G10000

$20,97

Unit Price

14

COVER, PIVOT LH

43595-27G00-000 4359527G00000

$21,97

Unit Price

15

CAP

09251-04003-000 0925104003000

$4,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FRAME of your Suzuki V-STROM 650 of V-STROM. Let us know if you have any questions.
