Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

RADIATOR HOSE

CLUTCH FOR SUZUKI V-STROM 650 2016

TRANSMISSION

Item numbers

GEAR ASSY, PRI DRIVEN
GEAR ASSY, PRIMARY DRIVEN (NT:71)

21200-44860-000 2120044860000

$317,97

Unit Price

HUB, CLUTCH SLEEVE

21411-44101-000 2141144101000

$68,97

Unit Price

SPRING, CLUTCH

21413-17G10-000 2141317G10000

$10,97

Unit Price

WASHER
WASHER, CLUTCH SPRING

21414-29F00-000 2141429F00000

$9,97

Unit Price

PLATE, CLUTCH DRIVE NO.2
PLATE, CLUTCH DRIVE NO.2 (T:3.0)

21442-29F10-000 2144229F10000

$30,97

Unit Price

PLATE, CLUTCH DRIVE
PLATE, CLUTCH DRIVE (T:3.0)

21441-29F30-000 2144129F30000

$25,97

Unit Price

PLATE, CLUTCH DRIVEN (T:1.6)

21451-28C31-000 2145128C31000

$15,97

Unit Price

DISC, CLUTCH PRESSURE

21462-14301-000 2146214301000

$72,97

Unit Price

SEAT, WAVE WASHER

21471-17G00-000 2147117G00000

$14,97

Unit Price

WASHER, CLUTCH PLATE WAVE

21472-17G00-000 2147217G00000

$20,97

Unit Price

BOLT, CLUTCH SPRING

21482-41G10-000 2148241G10000

$5,97

Unit Price

DRIVE SPROCKET NUT
NUT

09140-20001-000 0914020001000

$5,97

Unit Price

WASHER (20X36X3)

09160-20067-000 0916020067000

$13,97

Unit Price

WASHER
LOCK WASHER

09167-20006-000 0916720006000

$3,97

Unit Price

ROD, PUSH RH
ROD, CLUTCH PUSH RH

23110-44111-000 2311044111000

$19,97

Unit Price

ROD, CLUTCH PUSH LH

23111-15501-000 2311115501000

$18,97

Unit Price

PIECE, CLUTCH PUSH

23121-44H00-000 2312144H00000

$49,97

Unit Price

CAMSHAFT, CLUTCH RELEASE

23122-44H00-000 2312244H00000

$60,97

Unit Price

CAP, CLUTCH PUSH ROD

23123-41G00-000 2312341G00000

$16,97

Unit Price

SPRING, CLUTCH RELEASE RETURN

23125-11J00-000 2312511J00000

$4,97

Unit Price

ARM, CLUTCH RELEASE

23271-44H10-000 2327144H10000

$60,97

Unit Price

SCREW, CLUTCH PUSH RO
SCREW (6X73)

09134-06015-000 0913406015000

$11,97

Unit Price

WASHER (10.5X24X1)

09160-10020-000 0916010020000

$3,97

Unit Price

WASHER
WASHER (15.5X28X1)

09160-15045-000 0916015045000

$6,97

Unit Price

BEARING (10X14X10)

09263-10014-000 0926310014000

$20,97

Unit Price

BEARING, CL RLSE
BEARING (12X18X12)

09263-12027-000 0926312027000

$10,97

Unit Price

BEARING (15X28X2)

09263-15003-000 0926315003000

$12,97

Unit Price

OIL SEAL (10X20X6)

09282-10012-000 0928210012000

$12,97

Unit Price

SEAL, CLUTCH PUSH ROD
OIL SEAL (6X34X10.5)

09283-06008-000 0928306008000

$29,97

Unit Price

OIL SEAL
OIL SEAL (10X17X5)

09285-10004-000 0928510004000

$5,97

Unit Price

BOLT

01547-0620A-000 015470620A000

$3,97

Unit Price

NUT

08310-0006A-000

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.

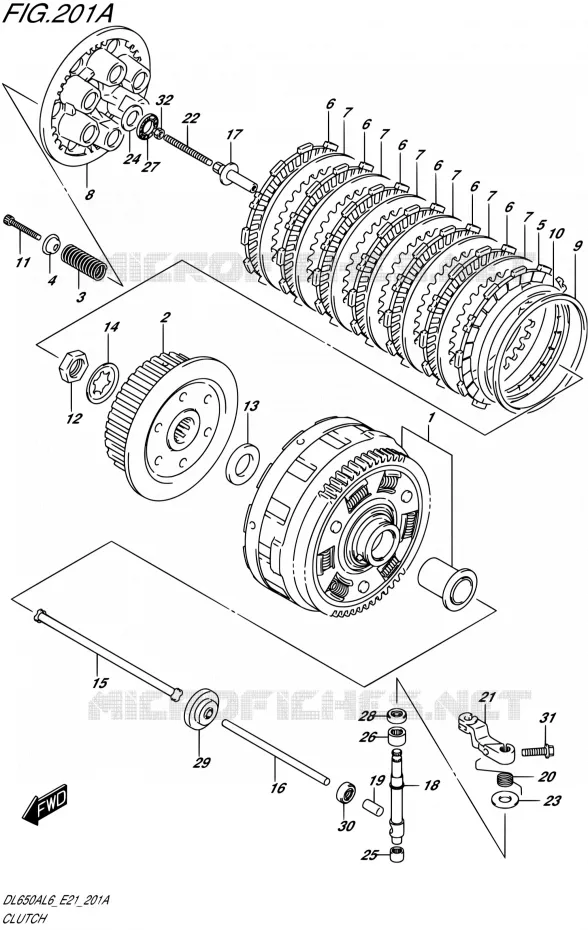

Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CLUTCH of your Suzuki V-STROM 650 XT ABS of V-STROM. Let us know if you have any questions.
