GEAR SHIFTING ASSY

STAND FOR SUZUKI V-STROM 650 2016

HANDLEBAR

Item numbers

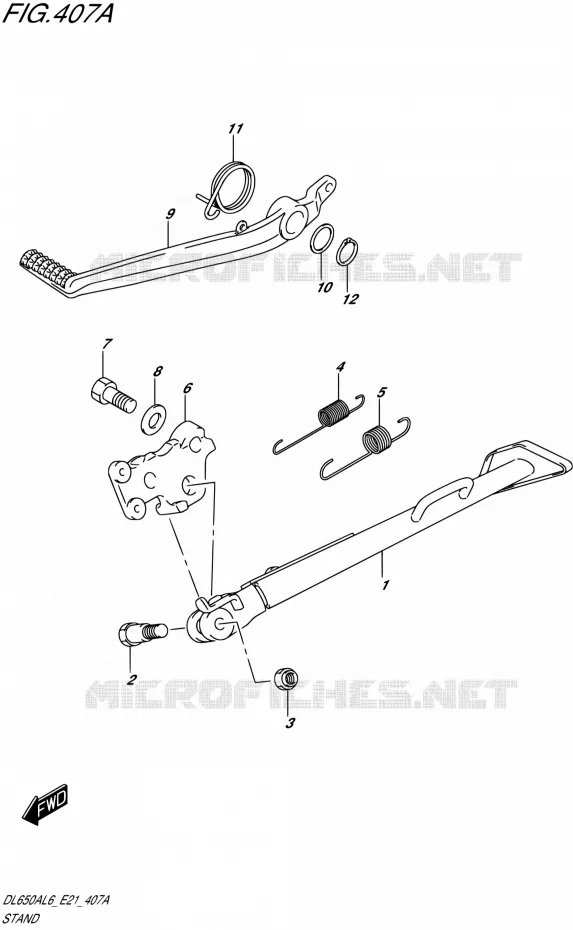

STAND Suzuki MOTO 650 V-STROM 2016 DL650XAUE L6 (E21)

1

STAND, PROP

42310-06G60-000 4231006G60000

$126,97

Unit Price

2

BOLT (10X37.5)

09111-10058-000 0911110058000

$10,97

Unit Price

3

NUT, PROP STAND
NUT

42321-03FK0-000 4232103FK0000

$8,97

Unit Price

4

SPRING

09443-14058-000 0944314058000

$10,97

Unit Price

5

SPRING

09443-19011-000 0944319011000

$9,97

Unit Price

6

BRACKET, PROP STAND

42330-06G60-000 4233006G60000

$108,97

Unit Price

7

BOLT
BOLT (12X30)

09100-12084-000 0910012084000

$8,97

Unit Price

8

WASHER
WASHER (12.5X24X2.6)

09160-12061-000 0916012061000

$2,97

Unit Price

9

PEDAL, BRAKE

43111-27G00-000 4311127G00000

$117,97

Unit Price

10

WASHER
WASHER (18X24X1)

09160-18022-000 0916018022000

$5,97

Unit Price

11

SPRING

09448-41005-000 0944841005000

$6,97

Unit Price

12

CIRCLIP

08331-3118A-000 083313118A000

$3,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the STAND of your Suzuki V-STROM 650 XT ABS 35kW of V-STROM. Let us know if you have any questions.

Genuine parts for Suzuki 650 V-STROM 2016
