Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

CASING

CASING FOR SUZUKI V-STROM 650 2017

CRANKSHAFT

Item numbers

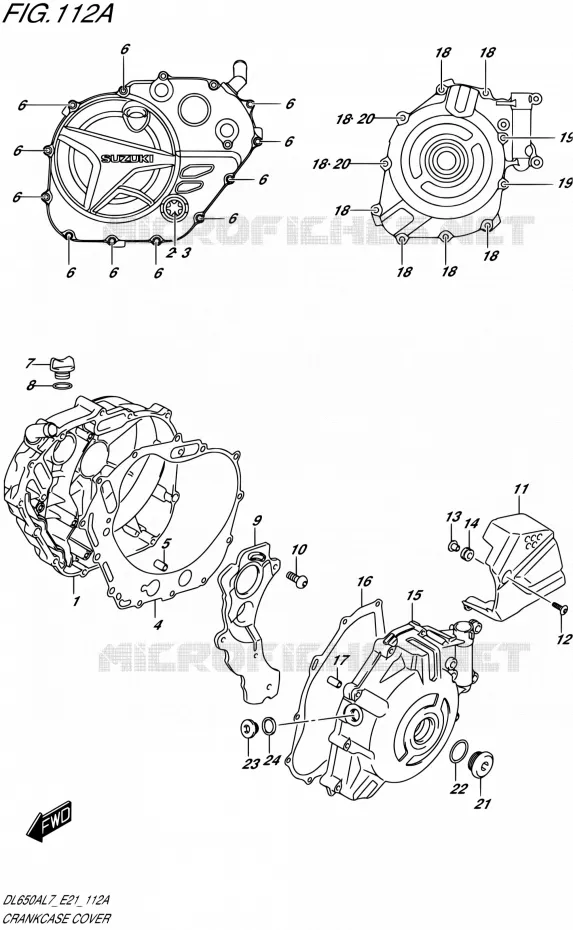

CASING Suzuki MOTO 650 V-STROM 2017 DL650XAL7 E21
1
2
3
4
5
6
6
6
6
6
6
6
6
6
6
6
7
8
9
10
11
12
13
14
15
16
17
18
18
18
18
18
18
18
18
19
19
20
20
21
22
23
24
1
COVER COMP, CLUTCH
COVER, CLUTCH

11340-18K10-000   1134018K10000

1134018K10000

Unit Price

2
.LENS, OIL LEVEL CHECK
.LENS, OIL LEVEL CHECK

11971-33210-000   1197133210000

1197133210000

Unit Price

3
.CIRCLIP
.CIRCLIP

08331-4130A-000   083314130A000

083314130A000

Unit Price

4
GASKET, CLUTCH COVER

11482-44H00-000   1148244H00000

1148244H00000

Unit Price

5
PIN
PIN

04211-09149-000   0421109149000

0421109149000

Unit Price

6
BOLT, ST CL COV/ST ID
BOLT (6X35)

09103-06214-000   0910306214000

0910306214000

Unit Price

7
PLUG,ENGINE OIL FILLER<br />PLUG, OIL FILLER
PLUG, ENGINE OIL FILLER
PLUG, OIL FILLER

11971-25D00-000   1197125D00000

1197125D00000

Unit Price

8
O-RING,OIL FILLER<br />O RING (D:3.1,ID:16.8)
O-RING, OIL FILLER
O RING (D:3.1, ID:16.8)

09280-17003-000   0928017003000

0928017003000

Unit Price

9
SEPARATOR, OIL

11343-44H01-000   1134344H01000

1134344H01000

Unit Price

10
BOLT (6X12)

09106-06098-000   0910606098000

0910606098000

Unit Price

11
COVER, ENG SPROCKET

11361-28K00-000   1136128K00000

1136128K00000

Unit Price

12
SCREW (6X20)
SCREW (6X20)

09139-06028-000   0913906028000

0913906028000

Unit Price

13
WASHER
WASHER

09169-06062-000   0916906062000

0916906062000

Unit Price

14
CUSHION
CUSHION

09320-09016-000   0932009016000

0932009016000

Unit Price

15
COVER, MAGNETO

11351-44H20-000   1135144H20000

1135144H20000

Unit Price

16
GASKET, MAGNETO COVER
GASKET, MAGNETO COVER

11483-19F00-000   1148319F00000

1148319F00000

Unit Price

17
PIN
PIN

04211-09149-000   0421109149000

0421109149000

Unit Price

18
BOLT, ST CL COV/ST ID
BOLT (6X35)

09103-06214-000   0910306214000

0910306214000

Unit Price

19
BOLT
BOLT (6X65)

09103-06239-000   0910306239000

0910306239000

Unit Price

20
GASKET<br />GASKET (5.8X13X1.2)
GASKET
GASKET (5.8X13X1.2)

09168-06023-000   0916806023000

0916806023000
Not available
21
PLUG
PLUG (26X9)

09259-26011-000   0925926011000

0925926011000

Unit Price

22
O-RING,CRK HOLE PLUG<br />O RING (D:3.1,ID:22.7)
O-RING, CRK HOLE PLUG
O RING (D:3.1, ID:22.7)

09280-22008-000   0928022008000

0928022008000

Unit Price

23
PLUG,OIL<br />PLUG (16X8)
PLUG, OIL
PLUG (16X8)

09248-16012-000   0924816012000

0924816012000

Unit Price

24
GASKET OIL GALLERY<br />GASKET (16X22X2)
GASKET OIL GALLERY
GASKET (16X22X2)

09168-16002-000   0916816002000

0916816002000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CASING of your Suzuki V-STROM 650 XT ABS of V-STROM. Let us know if you have any questions.
