TAIL LIGHT ASSY FOR SUZUKI V-STROM 650 2018

WIRING HARNESS

Item numbers

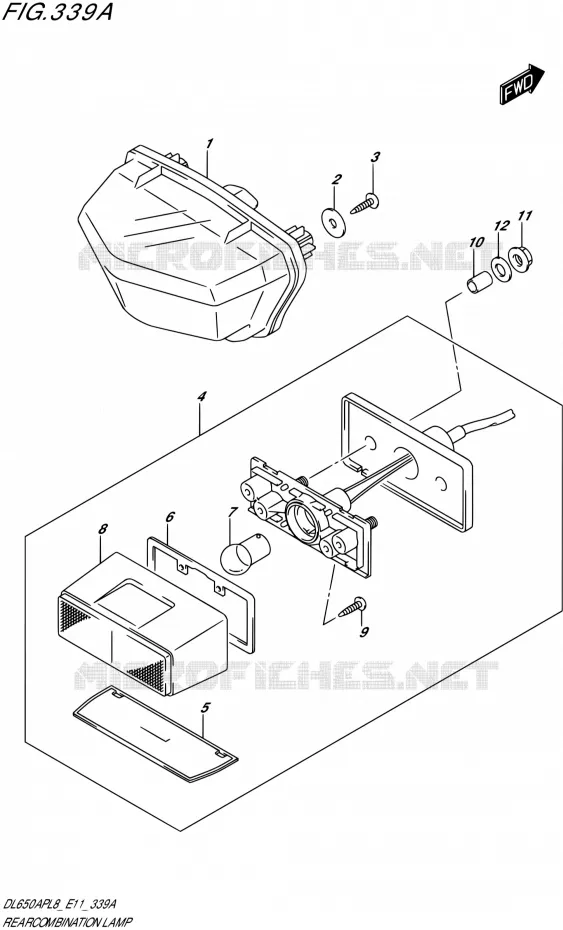

TAIL LIGHT ASSY Suzuki MOTO 650 V-STROM 2018 DL650AP L8 (E11)

1

LAMP ASSY, RR COMB

35710-31J01-000 3571031J01000

$187,97

Unit Price

2

WASHER
WASHER (5.5X20X1.2)

09160-05501-000 0916005501000

$3,97

Unit Price

3

SCREW

03541-0516A-000 035410516A000

$2,97

Unit Price

4

LAMP ASSY, LICENSE

35910-41GB2-000 3591041GB2000

Not available

5

LENS, LICENSE LAMP
.LENS, LICENSE

35912-41G01-000 3591241G01000

$33,97

Unit Price

6

.GASKET

35913-41G00-000 3591341G00000

$23,97

Unit Price

7

BULB(12V10W)
.BULB (12V5W)

09471-12140-000

Not available

8

.COVER, LICENSE LAMP

35917-41G00-000 3591741G00000

$42,97

Unit Price

9

.SCREW

03211-0416A-000 032110416A000

$2,97

Unit Price

10

SPACER (6.1X8X9.5)

09180-06248-000 0918006248000

$3,97

Unit Price

11

NUT

08316-1006A-000 083161006A000

$3,97

Unit Price

12

WASHER 6.5X10X1.2
WASHER (6.5X20X1.2)

09160-06077-000 0916006077000

$3,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the TAIL LIGHT ASSY of your Suzuki V-STROM 650 ABS of V-STROM. Let us know if you have any questions.
