FRONT FORK FOR SUZUKI V-STROM 650 2018

STEERING COLUMN

Item numbers

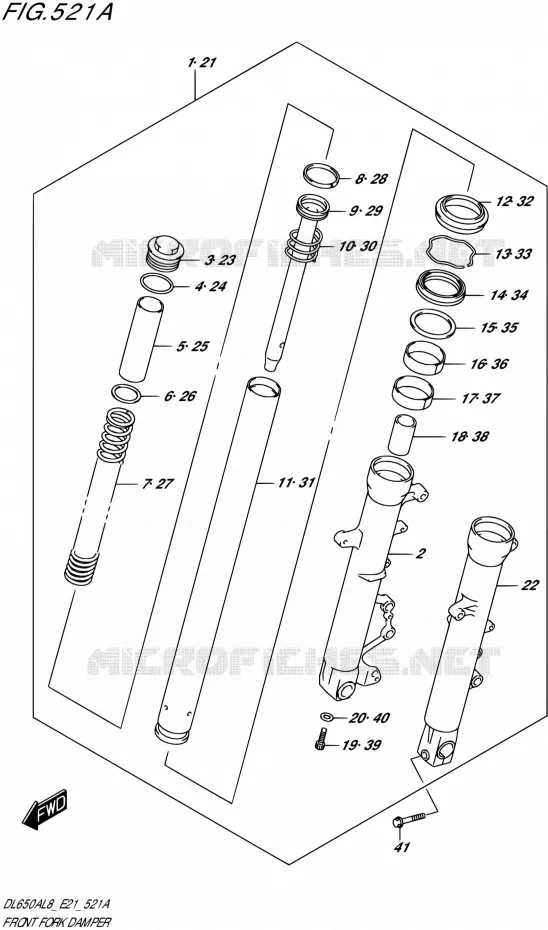

FRONT FORK Suzuki MOTO 650 V-STROM 2018 DL650XAL8 E21
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
1
DAMPER ASSY, FR FORK RH (BLACK)

51103-28K10-291   5110328K10291

5110328K10291

Unit Price

2
TUBE, OUTER, R
TUBE, OUTER RH (BLACK)

51131-28K00-291   5113128K00291

5113128K00291

Unit Price

3
BOLT, FORK

51189-28K00-000   5118928K00000

5118928K00000

Unit Price

4
O RING
O RING

51117-17C00-000   5111717C00000

5111717C00000

Unit Price

5
COLLAR, SPRING

51176-19C00-000   5117619C00000

5117619C00000

Unit Price

6
SEAT,SPRING LWR<br />SEAT,SPRING,LOWER
SEAT, SPRING LWR
SEAT, SPRING, LOWER

51186-17C00-000   5118617C00000

5118617C00000

Unit Price

7
SPRING, FR

51171-28K10-000   5117128K10000

5117128K10000

Unit Price

8
RING, PISTON

51196-27G00-000   5119627G00000

5119627G00000

Unit Price

9
PIPE SEAT

51146-11J00-000   5114611J00000

5114611J00000

Unit Price

10
SPRING, REBOUND

51177-14D00-000   5117714D00000

5117714D00000

Unit Price

11
PIPE, FORK

51110-28K10-000   5111028K10000

5111028K10000

Unit Price

12
SEAL, DUST

51173-27G00-000   5117327G00000

5117327G00000

Unit Price

13
CIRCLIP,FORK OIL SEAL<br />RING,STOPPER
CIRCLIP, FORK OIL SEAL
RING, STOPPER

51556-38B00-000   5155638B00000

5155638B00000

Unit Price

14
SEAL, OIL

51553-47H00-000  

51153-47H00-000
 5155347H00000

Unit Price

15
SPACER,SEAL
SPACER, SEAL

51168-17C00-000   5116817C00000

5116817C00000

Unit Price

16
BUSH, GUIDE

51152-47H00-000   5115247H00000

5115247H00000

Unit Price

17
BUSH, SLIDE

51121-11J00-000  

51121-11J10-000
 5112111J00000

Unit Price

18
PIECE, OIL LOCK

51195-27G00-000   5119527G00000

5119527G00000

Unit Price

19
BOLT
BOLT (8X18)

51147-06F10-000   5114706F10000

5114706F10000

Unit Price

20
GASKET

51148-31030-000  

51148-36011-000
 5114831030000

Unit Price

21
DAMPER ASSY, FR FORK LH (BLACK)

51104-28K10-291   5110428K10291

5110428K10291

Unit Price

22
TUBE, OUTER, L
TUBE, OUTER LH (BLACK)

51141-28K00-291   5114128K00291

5114128K00291

Unit Price

23
BOLT, FORK

51189-28K00-000   5118928K00000

5118928K00000

Unit Price

24
O RING
O RING

51117-17C00-000   5111717C00000

5111717C00000

Unit Price

25
COLLAR, SPRING

51176-19C00-000   5117619C00000

5117619C00000

Unit Price

26
SEAT,SPRING LWR<br />SEAT,SPRING,LOWER
SEAT, SPRING LWR
SEAT, SPRING, LOWER

51186-17C00-000   5118617C00000

5118617C00000

Unit Price

27
SPRING, FR

51171-28K10-000   5117128K10000

5117128K10000

Unit Price

28
RING, PISTON

51196-27G00-000   5119627G00000

5119627G00000

Unit Price

29
PIPE SEAT

51146-11J00-000   5114611J00000

5114611J00000

Unit Price

30
SPRING, REBOUND

51177-14D00-000   5117714D00000

5117714D00000

Unit Price

31
PIPE, FORK

51110-28K10-000   5111028K10000

5111028K10000

Unit Price

32
SEAL, DUST

51173-27G00-000   5117327G00000

5117327G00000

Unit Price

33
CIRCLIP,FORK OIL SEAL<br />RING,STOPPER
CIRCLIP, FORK OIL SEAL
RING, STOPPER

51556-38B00-000   5155638B00000

5155638B00000

Unit Price

34
SEAL, OIL

51553-47H00-000  

51153-47H00-000
 5155347H00000

Unit Price

35
SPACER,SEAL
SPACER, SEAL

51168-17C00-000   5116817C00000

5116817C00000

Unit Price

36
BUSH, GUIDE

51152-47H00-000   5115247H00000

5115247H00000

Unit Price

37
BUSH, SLIDE

51121-11J00-000  

51121-11J10-000
 5112111J00000

Unit Price

38
PIECE, OIL LOCK

51195-27G00-000   5119527G00000

5119527G00000

Unit Price

39
BOLT
BOLT (8X18)

51147-06F10-000   5114706F10000

5114706F10000

Unit Price

40
GASKET

51148-31030-000  

51148-36011-000
 5114831030000

Unit Price

41
BOLT, HOLDER AXLE (8X40)

51328-27E30-000   5132827E30000

5132827E30000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FRONT FORK of your Suzuki V-STROM 650 XT ABS of V-STROM. Let us know if you have any questions.
