REAR CALIPER

REAR MASTER CYLINDER FOR SUZUKI V-STROM 650 2020

OPTIONS

Item numbers

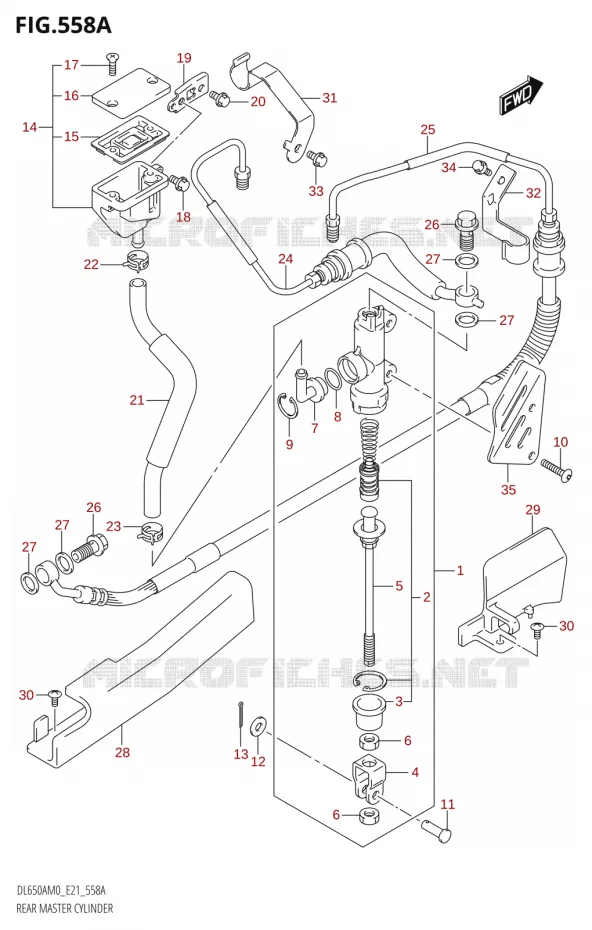

REAR MASTER CYLINDER Suzuki MOTO 650 V-STROM 2020 DL650A M0 (E21)
1
2
3
4
5
6
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
26
27
27
27
27
28
29
30
30
31
32
33
34
35
1
CYLINDER ASSY, REAR M
CYLINDER ASSY, REAR MASTER

69600-06G00-000   6960006G00000

6960006G00000

Unit Price

2
PISTON/CUP SET

69600-34820-000  

69600-34821-000
 6960034820000

Unit Price

3
..BOOT
..BOOT

69691-00A00-000   6969100A00000

6969100A00000

Unit Price

4
.YOKE
.YOKE

69692-19A00-000   6969219A00000

6969219A00000

Unit Price

5
.ROD, PUSH

69670-03G00-000   6967003G00000

6967003G00000

Unit Price

6
.NUT
.NUT

69693-05A00-000   6969305A00000

6969305A00000

Unit Price

7
.CONNECTOR
.CONNECTOR

69672-00B20-000   6967200B20000

6967200B20000

Unit Price

8
O RING CONECTOR<br />.O-RING
O RING CONECTOR
.O-RING

69686-34200-000   6968634200000

6968634200000

Unit Price

9
.CIRCLIP
.CIRCLIP

69674-00B20-000   6967400B20000

6967400B20000

Unit Price

10
SCREW (6X25)

09139-06192-000   0913906192000

0913906192000

Unit Price

11
PIN<br />PIN (6X18.2)
PIN
PIN (6X18.2)

09200-06068-000   0920006068000

0920006068000

Unit Price

12
WASHER
WASHER

08322-0106A-000   083220106A000

083220106A000

Unit Price

13
PIN
PIN

04111-2015A-000   041112015A000

041112015A000

Unit Price

14
TANK ASSY,RR RESERVOIR<br />TANK ASSY,REAR RESERVOIR
TANK ASSY, RR RESERVOIR
TANK ASSY, REAR RESERVOIR

69740-01D02-000   6974001D02000

6974001D02000

Unit Price

15
.DIAPHRAGM
.DIAPHRAGM

59667-04700-000   5966704700000

5966704700000

Unit Price

16
.CAP
.CAP

59669-05D00-000   5966905D00000

5966905D00000

Unit Price

17
.SCREW
.SCREW

69689-04A00-000   6968904A00000

6968904A00000

Unit Price

18
BOLT

01547-0612A-000   015470612A000

015470612A000

Unit Price

19
BRACKET COMP, RR RESERVOIR TANK
BRACKET, RR RESERVOIR TANK

69750-28K00-000   6975028K00000

6975028K00000

Unit Price

20
BOLT

01547-0612A-000   015470612A000

015470612A000

Unit Price

21
HOSE COMP, RR RESERVOIR TANK
HOSE, RR RESERVOIR TANK

69730-28K00-000   6973028K00000

6973028K00000

Unit Price

22
CLIP<br />CLIP (ID:13.2)
CLIP
CLIP (ID:13.2)

09401-13417-000   0940113417000

0940113417000

Unit Price

23
CLIP
CLIP (ID:12)

09401-12404-000   0940112404000

0940112404000

Unit Price

24
HOSE ASSY, RR BK MASTER TO HU

69200-28K01-000   6920028K01000

6920028K01000

Unit Price

25
HOSE ASSY, RR BRAKE NO.2

69400-11J01-000   6940011J01000

6940011J01000

Unit Price

26
BOLT, BRAKE FLUID<br />UNION (10X1.25X22)
BOLT, BRAKE FLUID
UNION (10X1.25X22)

09360-10062-000   0936010062000

0936010062000

Unit Price

27
WASHER<br />WASHER (10X15X1.5)
WASHER
WASHER (10X15X1.5)

09161-10009-000   0916110009000

0916110009000

Unit Price

28
61196-27G30

61196-27G10-000  

6119627G10000
Not available
29
GUIDE, RR BRAKE HOSE FR

61196-06G00-000   6119606G00000

6119606G00000

Unit Price

30
SCREW
SCREW

02142-0510A-000   021420510A000

021420510A000

Unit Price

31
CLAMP, RR BRAKE HOSE

69260-11J00-000   6926011J00000

6926011J00000

Unit Price

32
CLAMP, RR BRAKE HOSE NO.2

69266-27G00-000   6926627G00000

6926627G00000

Unit Price

33
BOLT

01547-0610B-000   015470610B000

015470610B000

Unit Price

34
BOLT

01547-0612A-000   015470612A000

015470612A000

Unit Price

35
COVER, RR MASTER CYLINDER
COVER, REAR MASTER CYLINDER

69641-06G00-000   6964106G00000

6964106G00000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the REAR MASTER CYLINDER of your Suzuki V-STROM 650 ABS of V-STROM. Let us know if you have any questions.
