FRONT MASTER CYLINDER

SWINGARM FOR SUZUKI V-STROM 650 2022

SHOCK ABSORBER LINKAGE

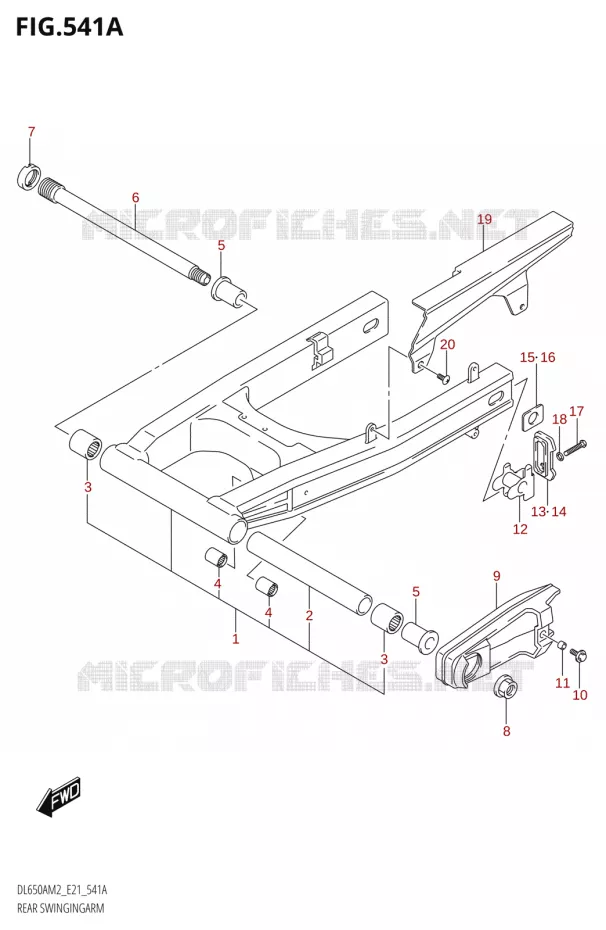

SWINGARM Suzuki MOTO 650 V-STROM 2022 DL650XA M2 (E21)
1
SWINGINGARM ASSY, REAR
SWINGINGARM ASSY, REAR (BLACK)

61000-27G31-YAP   6100027G31YAP

6100027G31YAP

Unit Price

2
SPACER, RR SWGARM PIV
.SPACER (20.8X27.2X196.7)

09180-20118-000   0918020118000

0918020118000

Unit Price

3
BEARING
.BEARING (25X33X35)

09263-25073-000   0926325073000

0926325073000

Unit Price

4
BEARING
.BEARING (17X24X25)

09263-17053-000   0926317053000

0926317053000

Unit Price

5
SPACER,PIVOT BEARING<br />SPACER, RR SWGARM PIVOT BRG
SPACER, PIVOT BEARING
SPACER, RR SWGARM PIVOT BRG

61251-31E00-000   6125131E00000

6125131E00000

Unit Price

6
SHAFT, RR SWINGINGARM PIVOT
SHAFT, RR SWGARM PIVOT

61211-06G00-000   6121106G00000

6121106G00000

Unit Price

7
NUT, RR SWGARM PIVOT BOLT
NUT, RR SWGARM PIVOT BOLT

61214-19F10-000   6121419F10000

6121419F10000

Unit Price

8
NUT
NUT

08319-3118A-000   083193118A000

083193118A000

Unit Price

9
BUFFER, CHAIN TOUCH DEFENSE

61273-27G01-000   6127327G01000

6127327G01000

Unit Price

10
BOLT

09116-06111-000  

09116-06152-000
 0911606111000

Unit Price

11
SPACER (6.5X10X7)
SPACER (6.5X10X7)

09180-06283-000   0918006283000

0918006283000

Unit Price

12
ADJUSTER, CHAIN

61410-03F00-000   6141003F00000

6141003F00000

Unit Price

13
PLATE, CHAIN ADJUSTER GUIDE RH
PLATE, CHAIN ADJUSTER GUIDE RH

61421-33D01-000   6142133D01000

6142133D01000

Unit Price

14
PLATE, CHAIN ADJUSTER GUIDE LH
PLATE, CHAIN ADJUSTER GUIDE LH

61422-33D01-000   6142233D01000

6142233D01000

Unit Price

15
WASHER, CHAIN ADJUSTER RH

64712-03F01-000   6471203F01000

6471203F01000

Unit Price

16
WASHER, CHAIN ADJUSTER LH

64713-03F01-000   6471303F01000

6471303F01000

Unit Price

17
BOLT (8X50)
BOLT (8X50)

09106-08119-000   0910608119000

0910608119000

Unit Price

18
WASHER HANDLEBAR<br />WASHER
WASHER HANDLEBAR
WASHER

09164-08015-000   0916408015000

0916408015000

Unit Price

19
CASE, CHAIN

61310-16G00-000   6131016G00000

6131016G00000

Unit Price

20
BOLT, CHAIN CASE
SCREW

09139-06225-000   0913906225000

0913906225000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the SWINGARM of your Suzuki V-STROM 650 XT ABS (ROUE A RAYON,SABOT,PARE MAINS) of V-STROM. Let us know if you have any questions.

Genuine parts for Suzuki 650 V-STROM 2022

BODY/FRAME ELECTRICAL ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS OPTIONS

Suzuki 650 V-STROM 2022

Select your Suzuki 2022 model

650 V-STROM 2022 DL650XA M2 (E21)

V-STROM 650 XT ABS (ROUE A RAYON,SABOT,PARE MAINS)

Suzuki V-STROM

Displacement: 650 cc
Year: 2022
Model code DL650XA M2 (E21)
