WATER PUMP (MODEL K5)

RADIATOR FOR SUZUKI BURGMAN 650 2003

RADIATOR HOSE - EXPANSION TANK

Item numbers

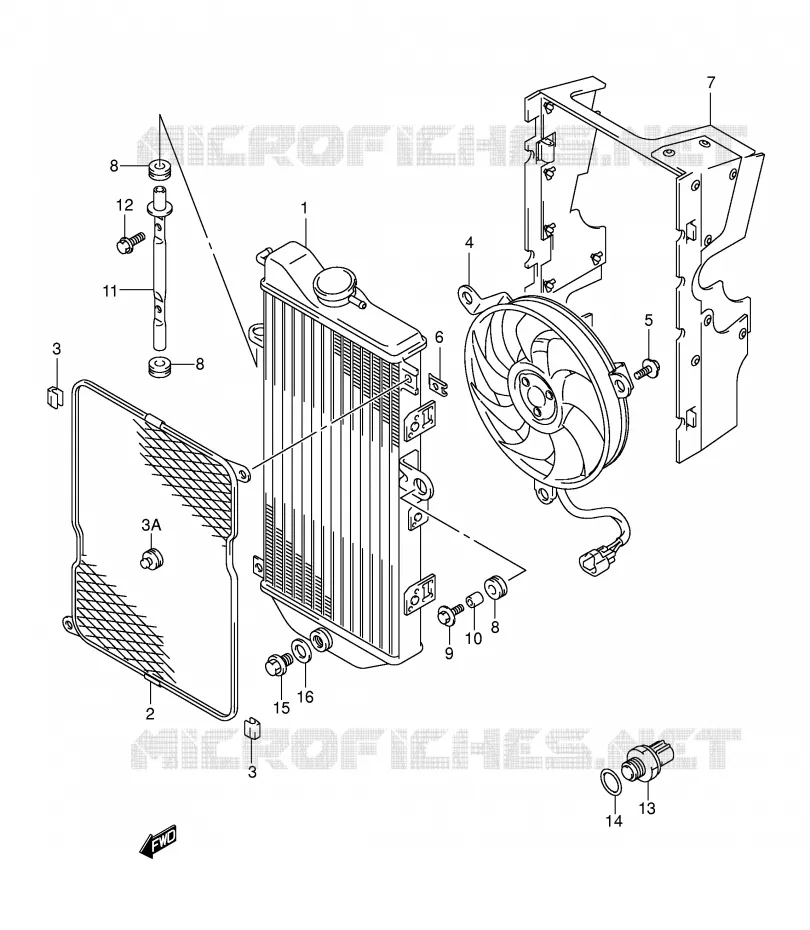

RADIATOR Suzuki SCOOTER 650 BURGMAN 2003 AN650LK3(E2)

1

RADIATOR ASSY, WATER

17710-10G00-000 1771010G00000

$1 513,97

Unit Price

2

DISCONTINUE
GUARD, RADIATOR

17750-10G00-000

Not available

3

PROTECTOR, CTR

17765-09F00-000

17765-09F01-000

$5,97

Unit Price

3A

CUSHION, RADIATOR COVER UPPER
CUSHION, RADIATOR GUARD

17768-33410-000 1776833410000

$4,97

Unit Price

4

FAN ASSY, RADIATOR

17800-10G00-000 1780010G00000

$884,97

Unit Price

5

BOLT, FAN ASSY
BOLT

17711-40F00-000 1771140F00000

$6,97

Unit Price

6

NUT, FAN ASSY
NUT

17712-40F00-000 1771240F00000

$6,97

Unit Price

7

SHIELD, RADIATOR HEAT

17760-10G00-000

17760-26J00-000

$137,97

Unit Price

8

CUSHION

09320-10015-000 0932010015000

$3,97

Unit Price

9

BOLT

09116-06167-000 0911606167000

$3,97

Unit Price

10

SPACER

09180-06310-000 0918006310000

$3,97

Unit Price

11

BRACKET, RADIATOR

17740-10G00-000 1774010G00000

$39,97

Unit Price

12

BOLT

01550-06103-000

01550-0610B-000

$3,97

Unit Price

13

SWITCH COMP, RDTR FAN

17680-50F10-000

17680-50F11-000

$100,97

Unit Price

14

O RING

17689-50F00-000 1768950F00000

Not available

15

BOLT

01550-06103-000

01550-0610B-000

$3,97

Unit Price

16

GASKET(6.4X11.5X0.84)
GASKET, DRAIN BOLT

09168-06026-000 0916806026000

$4,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the RADIATOR of your Suzuki BURGMAN 650 of BURGMAN. Let us know if you have any questions.
