CLUTCH (MODEL K3) REFER TO FIG.23A(D- 7) FOR MODEL K4/K5

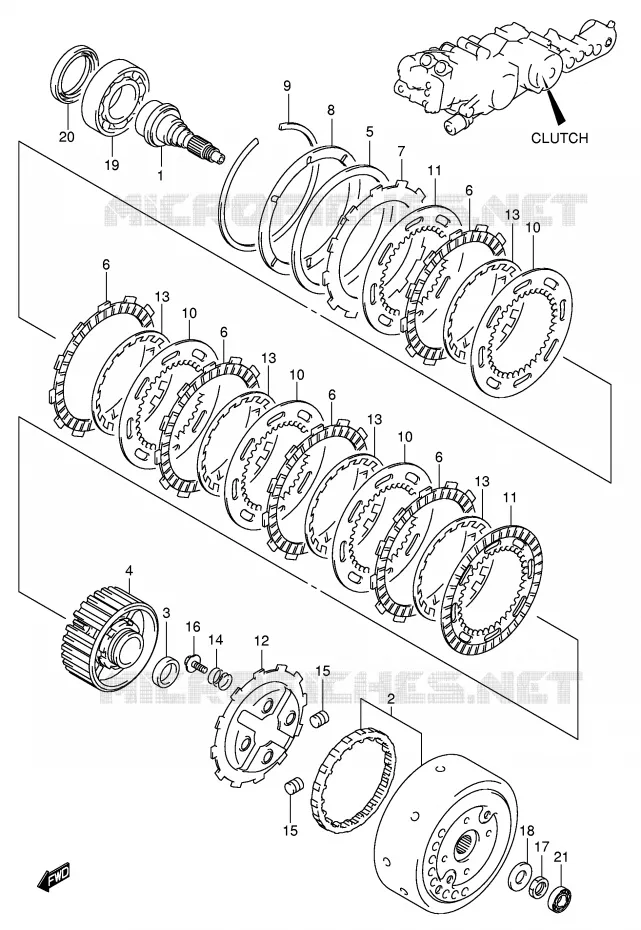

CLUTCH (MODEL K4 / K5) FOR SUZUKI BURGMAN 650 2005

PRIMARY CLUTCH

Item numbers

SHAFT, CLUTCH(NT:42)
SHAFT, CLUTCH

21421-10G00-000 2142110G00000

$196,97

Unit Price

HOUSING SET, CLUTCH

21221-10830-000 2122110830000

$440,97

Unit Price

DISCONTINUE
HOUSING SET, CLUTCH

21221-10820-000 2122110820000

Not available

SPACER, CLUTCH HOUSING

21222-10G00-000 2122210G00000

$19,97

Unit Price

GEAR SET, HUB CLUTCH

21321-10810-000 2132110810000

Not available

DISCONTINUE
GEAR SET, HUB CLUTCH

21321-10811-000 2132110811000

Not available

WASHER, CLUTCH SPRING WAVE

21412-10G00-000 2141210G00000

$62,97

Unit Price

PLATE, CLUTCH DRIVE NO.1
PLATE, CLUTCH DRIVE

21441-24F00-000

Not available

PLATE, CLUTCH DRIVE OUTER

21443-10G00-000 2144310G00000

$42,97

Unit Price

SEAT, CLUTCH SPRING

21446-10G00-000 2144610G00000

$47,97

Unit Price

CIRCLIP, CLUTCH OUTER PLATE
CIRCLIP, CLUTCH OUTER

21447-10G00-000 2144710G00000

$16,97

Unit Price

PLATE, CLUTCH DRIVEN NO.1
PLATE, CLUTCH DRIVEN

21451-10G10-000 2145110G10000

$21,97

Unit Price

PLATE, CLUTCH DRIVEN NO.2
PLATE, CLUTCH DRIVEN

21452-10G10-000 2145210G10000

$48,97

Unit Price

PLATE, CLUTCH INNER

21465-10G00-000 2146510G00000

$80,97

Unit Price

WASHER, CLUTCH PLATE

21472-10G10-000 2147210G10000

$20,97

Unit Price

SPRING, CLUTCH REACTION

21512-10G00-000 2151210G00000

$12,97

Unit Price

ROLLER, CLUTCH

21650-10G00-000 2165010G00000

$20,97

Unit Price

BOLT, 5X16
BOLT, CLUTCH REACTION (5X16)

09116-05020-000 0911605020000

$3,97

Unit Price

NUT
NUT, CLUTCH HOUSING

09140-18016-000 0914018016000

$10,97

Unit Price

WASHER, SHOE CLUTCH
WASHER, CLUTCH HOUSING

09160-18033-000 0916018033000

$5,97

Unit Price

BEARING, 50X72X12
BEARING, CLUTCH SHAFT RH

09262-50003-000 0926250003000

$157,97

Unit Price

SEAL, 50X64X7
SEAL, CLUTCH SHAFT

09283-50009-000 0928350009000

$24,97

Unit Price

BEARING, REAR HUB, L

08123-63017-000

08123-6301B-000

$20,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CLUTCH (MODEL K4/K5) of your Suzuki BURGMAN 650 of BURGMAN. Let us know if you have any questions.
