LEVERS - HANDGRIPS (AN650AL1 E33)

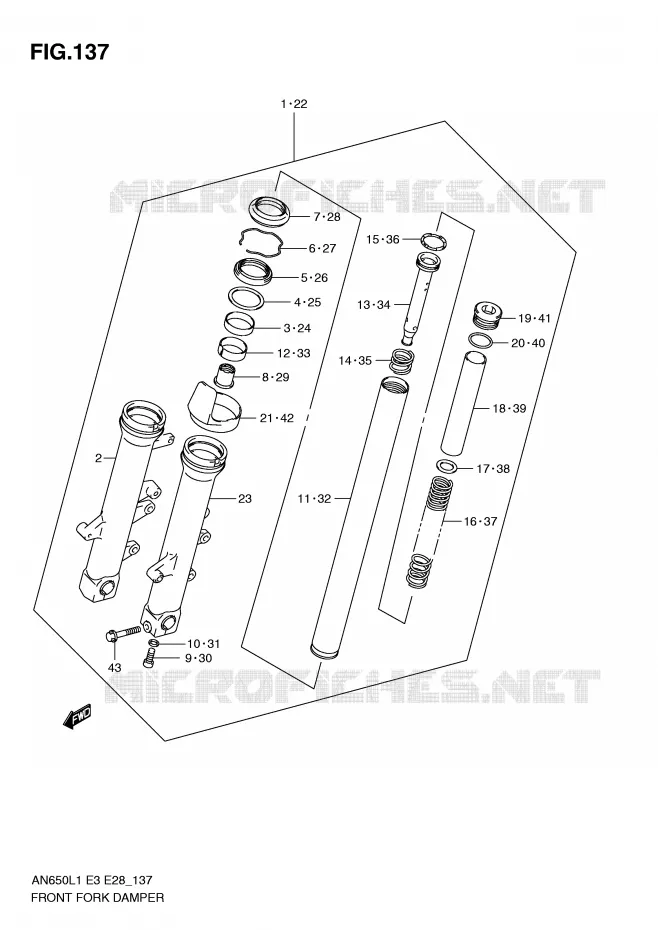

FRONT FORK FOR SUZUKI BURGMAN 650 2011

STEERING COLUMN

51103-10G51
DAMPER ASSY, FRONT FORK RH

51103-10G50-000 5110310G50000

Not available

DISCONTINUE
TUBE, OUTER RH

51130-10G10-000 5113010G10000

Not available

METAL, SLIDE

51167-26E10-000 5116726E10000

$28,97

Unit Price

WASHER

51158-05A00-000 5115805A00000

$8,97

Unit Price

SEAL, OIL

51153-10G50-000 5115310G50000

$20,97

Unit Price

RING, OIL SEAL STOPPER
RING, SNAP

51156-49440-000 5115649440000

$7,97

Unit Price

SEAL, DUST

51173-14F00-000 5117314F00000

$22,97

Unit Price

PIECE, OIL LOCK

51195-33D10-000 5119533D10000

$27,97

Unit Price

BOLT, FORK CYLINDER(10X25)
BOLT (10X25)

51147-16510-000 5114716510000

$6,97

Unit Price

GASKET

51148-41310-000 5114841310000

$3,97

Unit Price

TUBE, INNER

51110-10G00-000 5111010G00000

$524,97

Unit Price

PISTON

51121-33D10-000 5112133D10000

$20,97

Unit Price

CYLINDER

51146-10G10-000 5114610G10000

$99,97

Unit Price

SPRING, REBOUND

51177-10G10-000 5117710G10000

Not available

RING, PISTON

51196-31F00-000 5119631F00000

$13,97

Unit Price

SPRING, FR
SPRING, FRONT

51171-10G10-000 5117110G10000

Not available

WASHER(22.5X35.9X1.6)
WASHER

51356-10D03-000 5135610D03000

$9,97

Unit Price

SPACER, SPRING
SPACER

51176-10G10-000 5117610G10000

$16,97

Unit Price

CAP, FORK
CAP

51351-10G10-000 5135110G10000

$60,97

Unit Price

O RING
O RING (D:3.5, ID:31.7)

09280-32001-000 0928032001000

$3,97

Unit Price

PROTECTOR

51201-31F00-000 5120131F00000

$24,97

Unit Price

DISCONTINUE
DAMPER ASSY, FRONT FORK LH

51104-10G50-000 5110410G50000

Not available

TUBE, OUTER, L
TUBE, OUTER LH

51140-10G10-000 5114010G10000

$573,97

Unit Price

METAL, SLIDE

51167-26E10-000 5116726E10000

$28,97

Unit Price

WASHER

51158-05A00-000 5115805A00000

$8,97

Unit Price

SEAL, OIL

51153-10G50-000 5115310G50000

$20,97

Unit Price

RING, OIL SEAL STOPPER
RING, SNAP

51156-49440-000 5115649440000

$7,97

Unit Price

SEAL, DUST

51173-14F00-000 5117314F00000

$22,97

Unit Price

PIECE, OIL LOCK

51195-33D10-000 5119533D10000

$27,97

Unit Price

BOLT, FORK CYLINDER(10X25)
BOLT (10X25)

51147-16510-000 5114716510000

$6,97

Unit Price

GASKET

51148-41310-000 5114841310000

$3,97

Unit Price

TUBE, INNER

51110-10G00-000 5111010G00000

$524,97

Unit Price

PISTON

51121-33D10-000 5112133D10000

$20,97

Unit Price

CYLINDER

51146-10G10-000 5114610G10000

$99,97

Unit Price

SPRING, REBOUND

51177-10G10-000 5117710G10000

Not available

RING, PISTON

51196-31F00-000 5119631F00000

$13,97

Unit Price

SPRING, FR
SPRING, FRONT

51171-10G10-000 5117110G10000

Not available

WASHER(22.5X35.9X1.6)
WASHER

51356-10D03-000 5135610D03000

$9,97

Unit Price

SPACER, SPRING
SPACER

51176-10G10-000 5117610G10000

$16,97

Unit Price

CAP, FORK
CAP

51351-10G10-000 5135110G10000

$60,97

Unit Price

O RING
O RING (D:3.5, ID:31.7)

09280-32001-000 0928032001000

$3,97

Unit Price

PROTECTOR

51201-31F00-000 5120131F00000

$24,97

Unit Price

BOLT, AXLE STOPPER

51166-10G00-000

51166-10G10-000

$4,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FRONT FORK of your Suzuki of BURGMAN. Let us know if you have any questions.
