HANDGRIPS - LEVERS FOR SUZUKI BURGMAN 650 2012

FRONT WHEEL

Item numbers

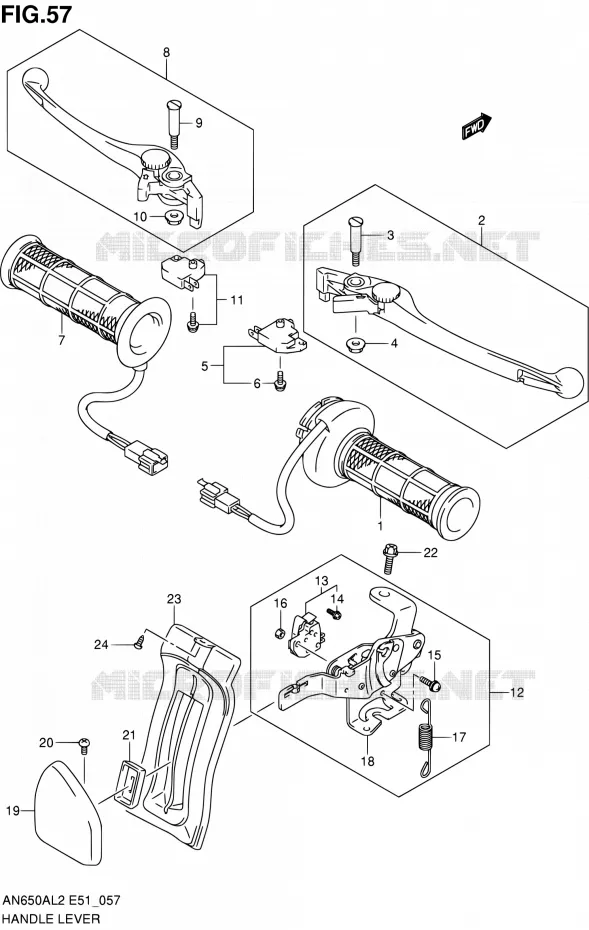

HANDGRIPS - LEVERS Suzuki SCOOTER 650 BURGMAN 2012 AN650AL2(E51)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
1
HEATER ASSY, THROTTLE GRIP

57110-10G10-000   5711010G10000

5711010G10000

Unit Price

2
LEVER ASSY, BRAKE
LEVER ASSY, FRONT BRAKE

57300-10G32-000   5730010G32000

5730010G32000

Unit Price

3
BOLT, LEVER PIVOT
.BOLT, PIVOT

57431-17H02-000   5743117H02000

5743117H02000

Unit Price

4
.NUT
.NUT

08319-2106A-000   083192106A000

083192106A000

Unit Price

5
SWITCH ASSY,STOP
SWITCH ASSY, STOP

57460-14J01-000  

57460-14J02-000
 5746014J01000

Unit Price

6
SCREW,WITH WASHER(4X12)<br />.SCREW
SCREW, WITH WASHER(4X12)
.SCREW

57465-17C00-000   5746517C00000

5746517C00000

Unit Price

7
HEATER ASSY, GRIP, L
HEATER ASSY, GRIP LH

57210-05H10-000   5721005H10000

5721005H10000

Unit Price

8
LEVER ASSY, RR BRAKE
LEVER ASSY, REAR BRAKE

57500-10G32-000   5750010G32000

5750010G32000

Unit Price

9
BOLT, LEVER PIVOT
.BOLT, PIVOT

57431-17H02-000   5743117H02000

5743117H02000

Unit Price

10
.NUT
.NUT

08319-2106A-000   083192106A000

083192106A000

Unit Price

11
SWITCH ASSY, RR BRAKE

57560-14J01-000  

57560-14J02-000
 5756014J01000

Unit Price

12
LEVER ASSY, BRAKE LOCK

57800-10G01-000   5780010G01000

5780010G01000

Unit Price

13
SWITCH ASSY, STOP

57460-17C11-000  

57460-14J02-000
 5746017C11000

Unit Price

14
SCREW,WITH WASHER(4X12)<br />..SCREW
SCREW, WITH WASHER(4X12)
..SCREW

57465-17C00-000   5746517C00000

5746517C00000

Unit Price

15
SCREW, BRAKE LOCK SWITCH
.SCREW

57852-10G00-000   5785210G00000

5785210G00000

Unit Price

16
DISCONTINUE
.NUT

57853-10G00-000   5785310G00000

5785310G00000
Not available
17
DISCONTINUE
.SPRING, RETURN

57804-10G00-000   5780410G00000

5780410G00000
Not available
18
.LEVER, BRAKE LOCK

57810-10G00-000   5781010G00000

5781010G00000

Unit Price

19
KNOB, BRAKE LOCK

57820-10G00-000   5782010G00000

5782010G00000

Unit Price

20
SCREW
SCREW

02112-0408B-000   021120408B000

021120408B000

Unit Price

21
COVER, BRAKE LOCK KNOB
COVER, KNOB

57831-10G00-000   5783110G00000

5783110G00000

Unit Price

22
BOLT
BOLT

01550-0612B-000   015500612B000

015500612B000

Unit Price

23
DISCONTINUE
PLATE, LEVER SEAL

57950-10G00-000   5795010G00000

5795010G00000
Not available
24
SCREW

03511-0512A-000  

03511-0512B-000
 035110512A000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the HANDGRIPS - LEVERS of your Suzuki of BURGMAN. Let us know if you have any questions.

Genuine parts for Suzuki 650 BURGMAN 2012
