OIL COOLER

WATER PUMP FOR SUZUKI BURGMAN 650 2013

RADIATOR

Item numbers

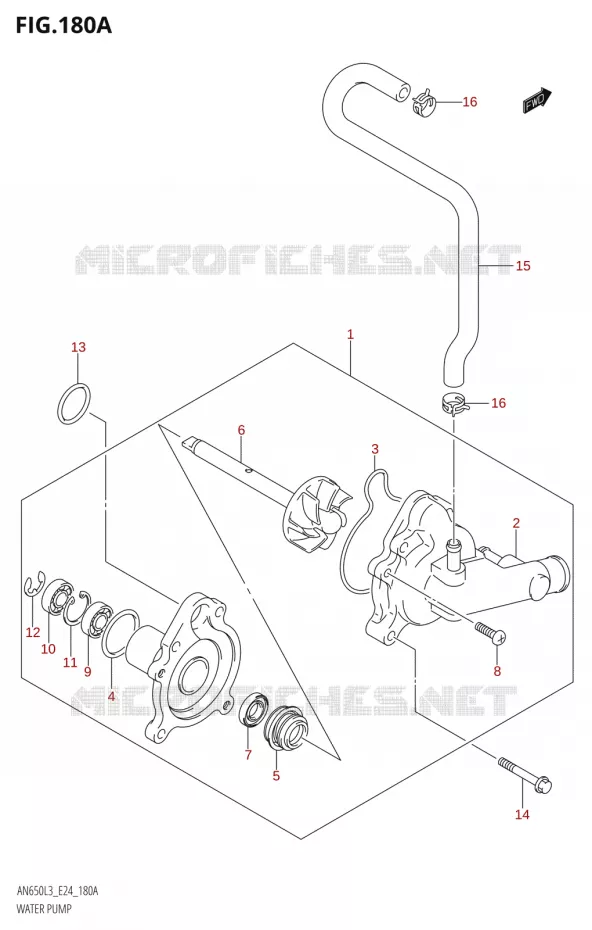

WATER PUMP Suzuki SCOOTER 650 BURGMAN 2013 AN650 L3 (E24)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
16
1
PUMP ASSY, WATER

17400-10G10-000  

17400-10G11-000
 1740010G10000

Unit Price

2
.COVER

17411-10G10-000   1741110G10000

1741110G10000

Unit Price

3
.O-RING

17418-10G10-000   1741810G10000

1741810G10000

Unit Price

4
O RING,WATER PUMP HOLDER<br />.O-RING
O RING, WATER PUMP HOLDER
.O-RING

17435-33400-000   1743533400000

1743533400000

Unit Price

5
SEAL,MECHANICAL
SEAL, MECHANICAL

17470-02F10-000  

17470-02F11-000
 1747002F10000

Unit Price

6
IMPELLER
.IMPELLER COMP

17491-10G10-000   1749110G10000

1749110G10000

Unit Price

7
OIL SEAL, WATER PUMP<br />.SEAL,OIL(10X21X5)
OIL SEAL, WATER PUMP
.SEAL, OIL(10X21X5)

09283-10004-000   0928310004000

0928310004000

Unit Price

8
.SCREW
.SCREW

02112-0616B-000   021120616B000

021120616B000

Unit Price

9
.BEARING

08110-68000-000   0811068000000

0811068000000

Unit Price

10
.BEARING
.BEARING

08110-69000-000   0811069000000

0811069000000

Unit Price

11
CIRCLIP
.CIRCLIP, CNTR, R, OIL SEAL

08331-41209-000   0833141209000

0833141209000

Unit Price

12
.E RING
.E RING

08332-1108A-000   083321108A000

083321108A000

Unit Price

13
OIL PLUG O RING<br />O RING(D:2.4,ID:21.8)
OIL PLUG O RING
O RING(D:2.4, ID:21.8)

09280-22001-000   0928022001000

0928022001000

Unit Price

14
BOLT

01547-0635A-000   015470635A000

015470635A000

Unit Price

15
HOSE, WATER BYPASS

17856-10G00-000   1785610G00000

1785610G00000

Unit Price

16
CLIP
CLIP

09401-12409-000  

09401-12414-000
 0940112409000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the WATER PUMP of your Suzuki BURGMAN 650 of BURGMAN. Let us know if you have any questions.

Genuine parts for Suzuki 650 BURGMAN 2013

BODY/FRAME ELECTRICAL ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS OPTIONS

Suzuki 650 BURGMAN 2013

Select your Suzuki 2013 model

650 BURGMAN 2013 AN650 L3 (E24)

BURGMAN 650

Suzuki BURGMAN

Displacement: 650 cc
Year: 2013
Model code AN650 L3 (E24)
