Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

SPEEDOMETER PANEL (AN650ZL5 E19)

WINDSCREEN FOR SUZUKI BURGMAN 650 2015

TRUNK

Item numbers

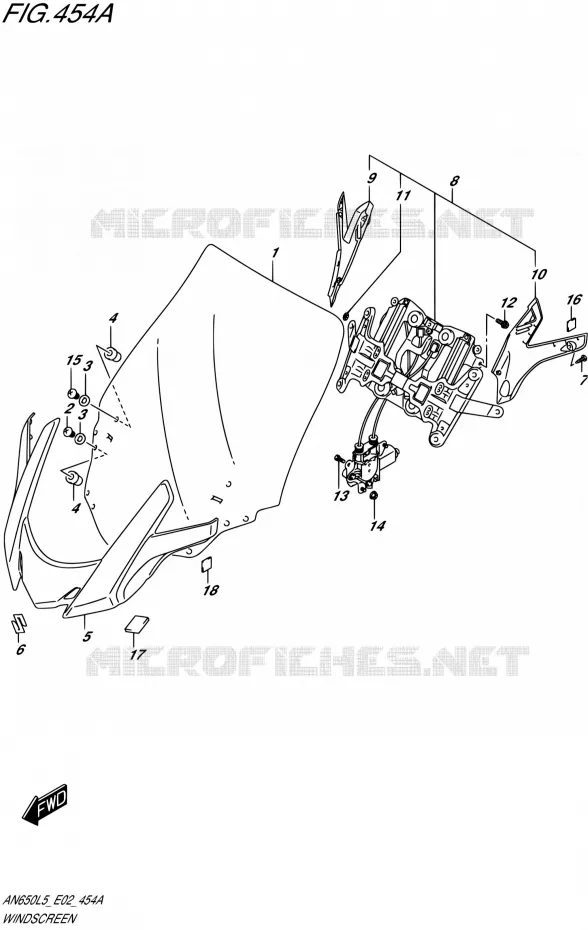

WINDSCREEN Suzuki SCOOTER 650 BURGMAN 2015 AN650Z L5 (E19)
1
2
3
3
4
4
5
7
8
9
10
11
12
13
14
15
16
17
18
1
WINDSCREEN

94611-26J00-000   9461126J00000

9461126J00000

Unit Price

2
SCREW

02142-0516A-000  

02142-0516B-000
 021420516A000

Unit Price

3
WASHER
WASHER (5.2X14X1.5)

09161-05017-000   0916105017000

0916105017000

Unit Price

4
NUT,WINDSCREEN<br />NUT
NUT, WINDSCREEN
NUT

09159-05048-000   0915905048000

0915905048000

Unit Price

5
COVER, WINDSCREEN

94641-26J01-291  

94641-26J50-000
 9464126J01291

Unit Price

7
BOLT
SCREW (5X16)

09132-05053-000   0913205053000

0913205053000

Unit Price

8
94600-26J51
REGULATOR ASSY, WINDSCREEN (BLACK)

94600-26J00-291  

9460026J00291
Not available
9
.COVER, RH (BLACK)

94651-26J00-291   9465126J00291

9465126J00291
Not available
10
.COVER, LH (BLACK)

94661-26J00-291   9466126J00291

9466126J00291
Not available
11
.NUT

09148-03010-000   0914803010000

0914803010000

Unit Price

12
BOLT

07120-0612A-000  

07120-0612B-000
 071200612A000

Unit Price

13
BOLT (6X8)

09100-06157-000   0910006157000

0910006157000

Unit Price

14
NUT

08316-1006A-000   083161006A000

083161006A000

Unit Price

15
SCREW

02142-0520A-000   021420520A000

021420520A000

Unit Price

16
CUSHION, RADIATOR COVER INNER
CUSHION, WINDSCREEN COVER

17798-39G00-000   1779839G00000

1779839G00000

Unit Price

17
CUSHION, RADIATOR COVER INNER
CUSHION, WINDSCREEN COVER

17798-39G00-000   1779839G00000

1779839G00000

Unit Price

18
CUSHION, BATTERY(80X27X3)
CUSHION, WINDSCREEN COVER NO.2

33652-19B00-000   3365219B00000

3365219B00000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the WINDSCREEN of your Suzuki BURGMAN 650 of BURGMAN. Let us know if you have any questions.
