Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

FRONT WHEEL

SWINGARM FOR SUZUKI BURGMAN 650 2017

FRONT FORK

Item numbers

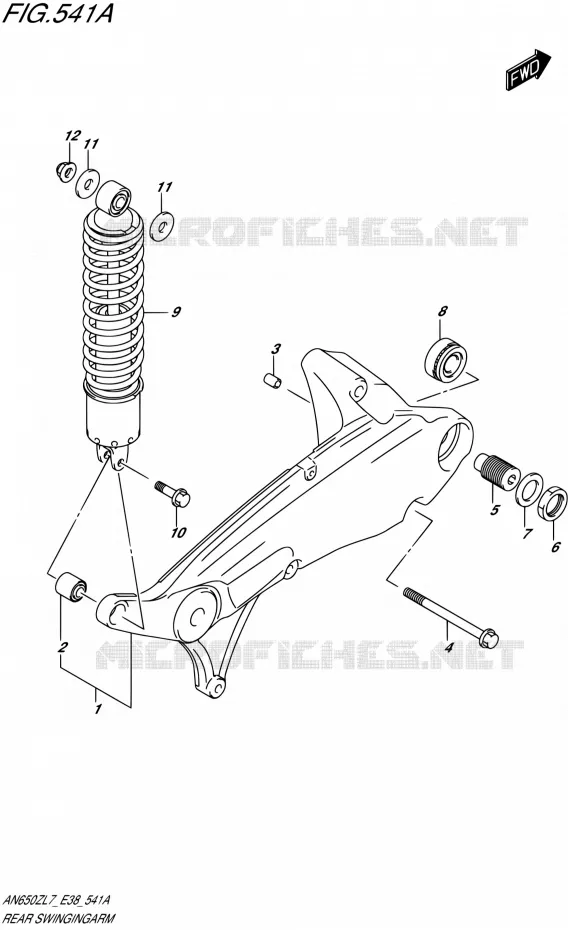

SWINGARM Suzuki SCOOTER 650 BURGMAN 2017 AN650Z L7 (E38)
1
2
3
4
5
6
7
8
9
10
11
11
12
1
SWINGINGARM ASSY, RR
SWINGING ARM ASSY, REAR (SILVER)

61000-10G20-YD8   6100010G20YD8

6100010G20YD8

Unit Price

2
.BUSH (10.2X22.3X20)

09319-10032-000   0931910032000

0931910032000

Unit Price

3
PIN, CRANKCASE
PIN, CRANKCASE

11319-33E50-000   1131933E50000

1131933E50000

Unit Price

4
BOLT (10X95)

09103-10299-000   0910310299000

0910310299000

Unit Price

5
BOLT, RR SWGARM PIVOT
BOLT, PIVOT RH

61213-24A00-000   6121324A00000

6121324A00000

Unit Price

6
NUT
NUT

09140-24007-000   0914024007000

0914024007000

Unit Price

7
WASHER (24X42X1.2)

09160-24034-000   0916024034000

0916024034000
Not available
8
SWING PIVOT BEA *S1
BEARING (17X40X13.25)

09265-17012-000   0926517012000

0926517012000

Unit Price

9
ABSORBER ASSY, RR SHOCK(BLACK)
ABSORBER ASSY, REAR SHOCK (BLACK)

62100-10G21-019   6210010G21019

6210010G21019

Unit Price

10
BOLT, RR SHOCK ABSORBER LWR
BOLT, LOWER

62313-40B00-000   6231340B00000

6231340B00000

Unit Price

11
WASHER<br />WASHER (10.5X30X2.3)
WASHER
WASHER (10.5X30X2.3)

09160-10501-000   0916010501000

0916010501000

Unit Price

12
NUT
NUT

08319-3110A-000   083193110A000

083193110A000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the SWINGARM of your Suzuki BURGMAN 650 EXECUTIVE of BURGMAN. Let us know if you have any questions.
