Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

IGNITION

ELECTRICAL FOR SUZUKI DR-Z 70 2010

WIRING HARNESS

Item numbers

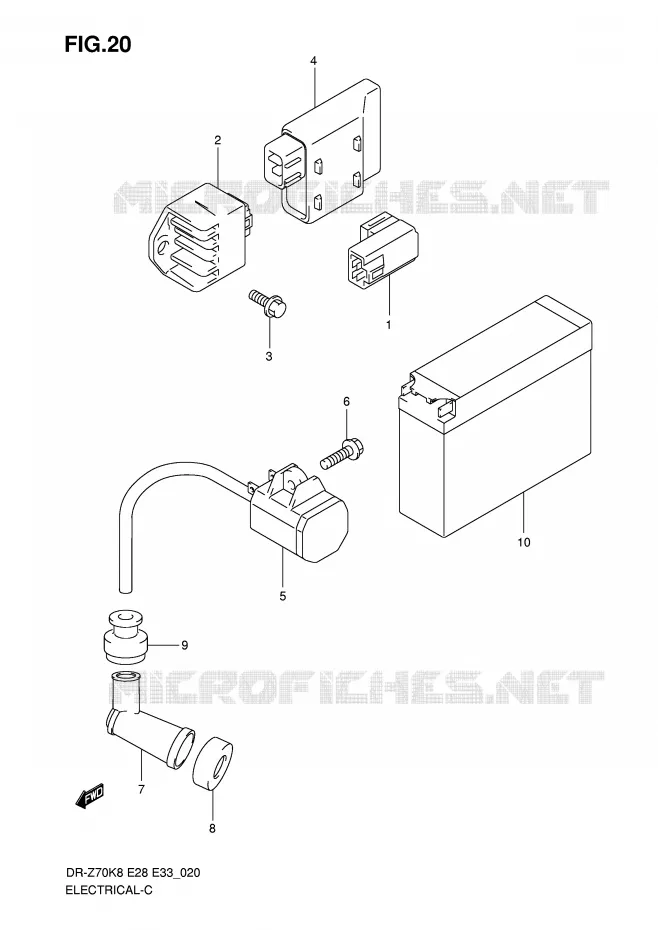

ELECTRICAL Suzuki MOTO 70 DR-Z 2010 DR-Z70L0(E28/E33)
1
2
3
4
5
6
7
8
9
10
1
RELAY ASSY, STARTING MOTOR

31800-14H00-000  

31800-14H01-000
 3180014H00000

Unit Price

2
RECTIFIER ASSY

32800-47E00-000  

32800-41H01-000
 3280047E00000

Unit Price

3
SCREW
SCREW, RECTIFIER

02162-0616A-000   021620616A000

021620616A000

Unit Price

4
CDI UNIT

32900-14H00-000   3290014H00000

3290014H00000

Unit Price

5
COIL ASSY, IGNITION

33410-14H00-000   3341014H00000

3341014H00000

Unit Price

6
SCREW

02162-0620B-000  

02162-0620C-000
 021620620B000

Unit Price

7
CAP, SPARK PLUG

33510-22010-000   3351022010000

3351022010000
Not available
8
SEAL, SPARK PLUG

33541-38210-000  

33541-47D00-000
 3354138210000

Unit Price

9
SEAL, HIGH TENSION CORD
SEAL, HIGH TENSION CORD

33542-38B00-000   3354238B00000

3354238B00000

Unit Price

10
BATTERY ASSY(YT4B-BS, 12V2.4AH)
BATTERY ASSY

33610-39C20-000   3361039C20000

3361039C20000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!

Genuine parts for Suzuki 70 DR-Z 2010

BODY/FRAME ELECTRICAL INFORMATION ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS OPTIONS

Suzuki 70 DR-Z 2010

Choose your Suzuki 70 2010 DR-Z model

70 DR-Z 2010 DR-Z70L0(E28/E33)

Suzuki DR-Z

Displacement: 70 cc
Year: 2010
Model code DR-Z70L0(E28 / E33)
