MUFFLER

OIL PUMP FOR SUZUKI DR-Z 70 2010

CLUTCH

Item numbers

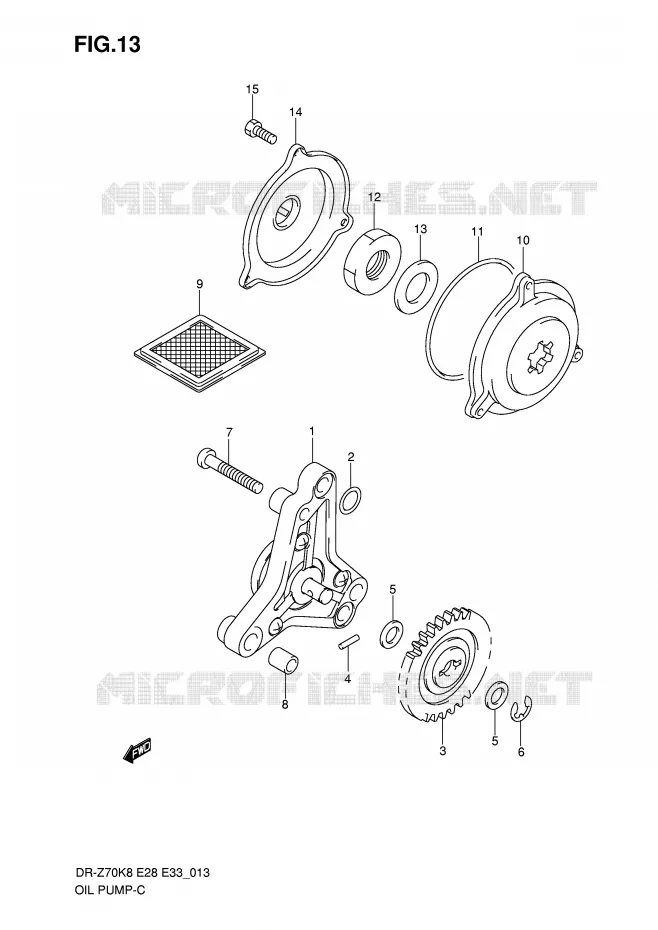

OIL PUMP Suzuki MOTO 70 DR-Z 2010 DR-Z70L0(E28/E33)
1
2
3
3
4
4
5
5
6
7
8
9
10
11
12
13
14
15
1
PUMP ASSY, ENGINE OIL

16400-09403-000   1640009403000

1640009403000

Unit Price

2
O RING (D:1.9, ID:9.8)

09280-10016-000   0928010016000

0928010016000

Unit Price

3
GEAR, OIL PUMP DRIVEN (NT:31)

16331-09440-000   1633109440000

1633109440000

Unit Price

3
GEAR, OIL PUMP DRIVEN (NT:31)

16331-09420-000   1633109420000

1633109420000
Not available
4
CLUTCH SPRING PIN<br />PIN (L:19.8)
CLUTCH SPRING PIN
PIN (L:19.8)

09261-02001-000   0926102001000

0926102001000

Unit Price

4
ROTOR DRIVEN PIN**S1
PIN (L:11.8)

09261-02008-000   0926102008000

0926102008000

Unit Price

5
SHIM, 8.8X14X1.0
WASHER

09181-08139-000   0918108139000

0918108139000

Unit Price

6
E RING
E RING

08332-1106A-000  

08332-1106B-000
 083321106A000

Unit Price

7
SCREW

02112-0635A-000   021120635A000

021120635A000

Unit Price

8
9 X 12 DOWEL PIN<br />PIN
9 X 12 DOWEL PIN
PIN

04211-09129-000   0421109129000

0421109129000

Unit Price

9
STRAINER, ENGINE OIL

16520-09402-000  

16520-09403-000
 1652009402000

Unit Price

10
CASE, ENGINE OIL FILTER

16530-09411-000   1653009411000

1653009411000

Unit Price

11
O-RING,OIL STR CAP<br />O RING (D:2.4,ID:60.5)
O-RING, OIL STR CAP
O RING (D:2.4, ID:60.5)

09280-60005-000   0928060005000

0928060005000

Unit Price

12
NUT

09140-16025-000   0914016025000

0914016025000

Unit Price

13
WASHER

09164-16004-000  

09164-16001-000
 0916416004000

Unit Price

14
COVER, ENGINE OIL FILTER
COVER, OIL FILTER

16540-09D00-000   1654009D00000

1654009D00000

Unit Price

15
BOLT (5X10)

09100-05019-000   0910005019000

0910005019000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!

Genuine parts for Suzuki 70 DR-Z 2010
