CAMSHAFT - VALVES FOR SUZUKI DR-Z 70 2012

TIMING

Item numbers

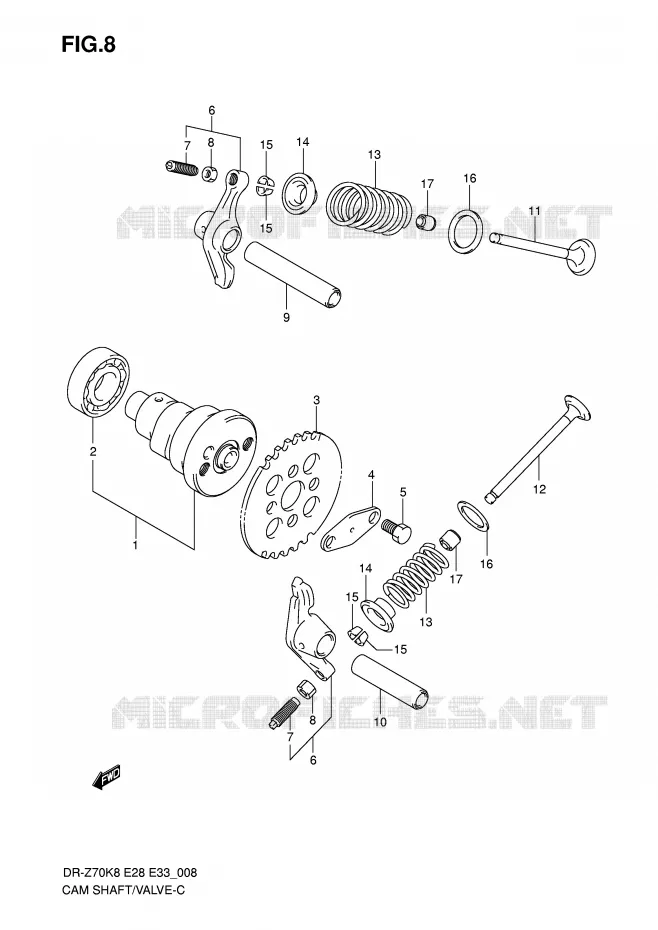

CAMSHAFT - VALVES Suzuki MOTO 70 DR-Z 2012 DR-Z70L0(E28/E33)
1
2
3
4
5
6
6
7
7
8
8
9
10
11
12
13
13
14
14
15
15
15
15
16
16
17
17
1
CAMSHAFT ASSY

12710-02A10-000   1271002A10000

1271002A10000

Unit Price

2
BEARING(15X32X9)
BEARING

09262-15013-000   0926215013000

0926215013000

Unit Price

3
SPROCKET, CAMSHAFT

12741-09405-000   1274109405000

1274109405000

Unit Price

4
WASHER, SPROCKET

12714-09401-000   1271409401000

1271409401000

Unit Price

5
BOLT, SPROCKET
BOLT

09111-06032-000   0911106032000

0911106032000

Unit Price

6
ARM, VALVE ROCKER
ARM, VALVE LOCKER

12840-30A11-000   1284030A11000

1284030A11000

Unit Price

7
SCREW,TAPPET ADJUSTING<br />SCREW
SCREW, TAPPET ADJUSTING
SCREW

12842-49201-000   1284249201000

1284249201000

Unit Price

8
NUT,TAPPET ADJUSTING<br />NUT
NUT, TAPPET ADJUSTING
NUT

12843-27A00-000   1284327A00000

1284327A00000

Unit Price

9
SHAFT, VALVE ROCKER ARM INTAKE
SHAFT, VALVE LOCKER ARM, IN

12861-09401-000   1286109401000

1286109401000

Unit Price

10
SHAFT, VALVE ROCKER ARM EXHAUST
SHAFT, VALVE LOCKER ARM, EX

12871-09401-000   1287109401000

1287109401000

Unit Price

11
VALVE, INTAKE

12911-09D00-000   1291109D00000

1291109D00000

Unit Price

12
VALVE, EXHAUST

12912-02A00-000   1291202A00000

1291202A00000

Unit Price

13
SPRING SET, VALVE
SPRING, VALVE

12921-36G00-000   1292136G00000

1292136G00000

Unit Price

14
RETAINER, VALVE SPRING

12931-09420-000   1293109420000

1293109420000
Not available
15
COTTER, VALVE
COTTER, VALVE

12932-27A00-000   1293227A00000

1293227A00000

Unit Price

16
SEAT, VALVE SPRING OUTER
SEAT, SPRING

12934-09400-000   1293409400000

1293409400000

Unit Price

17
OIL SEAL, VALVE STEM
OIL SEAL

09289-05008-000   0928905008000

0928905008000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!

Genuine parts for Suzuki 70 DR-Z 2012

BODY/FRAME ELECTRICAL INFORMATION ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS OPTIONS

Suzuki 70 DR-Z 2012

Choose your Suzuki 70 2012 DR-Z model

70 DR-Z 2012 DR-Z70L0(E28/E33)

Suzuki DR-Z

Displacement: 70 cc
Year: 2012
Model code DR-Z70L0(E28 / E33)
