REAR SHOCK ABSORBER

REAR WHEEL FOR SUZUKI DR-Z 70 2012

OPTIONS

Item numbers

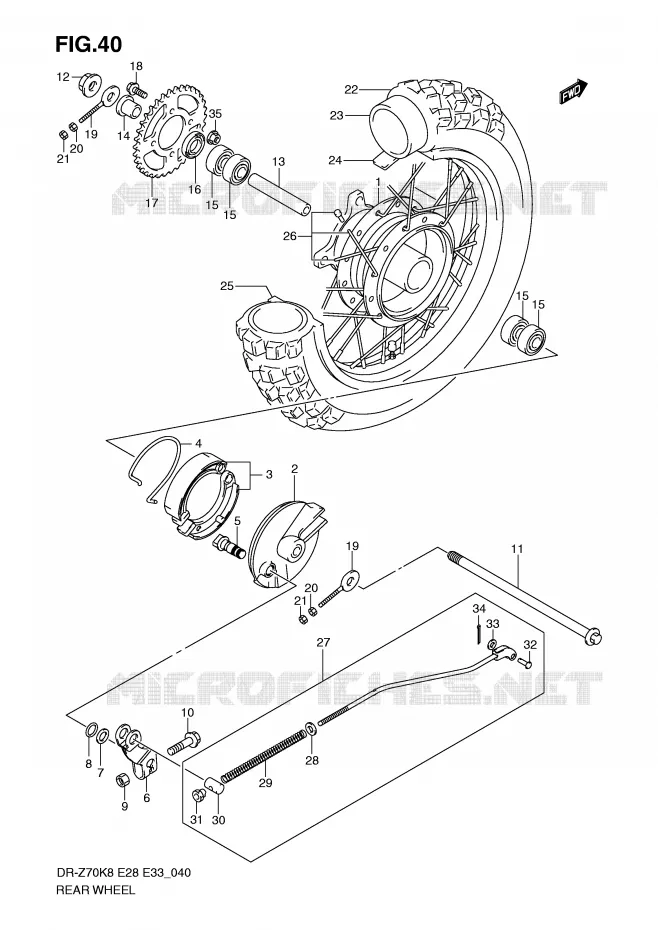

REAR WHEEL Suzuki MOTO 70 DR-Z 2012 DR-Z70L0(E28/E33)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
15
15
15
16
17
18
19
19
20
20
21
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
1
HUB, RR WHEEL
DRUM, REAR HUB

64110-14H00-000   6411014H00000

6411014H00000

Unit Price

2
PANEL, FR BRAKE ANCHOR
PANEL, REAR BRAKE ANCHOR

54210-14H00-000   5421014H00000

5421014H00000

Unit Price

3
SHOE SET, BRAKE

54400-14870-000   5440014870000

5440014870000

Unit Price

4
SPRING, BRAKE SHOE
SPRING

54424-14H00-000   5442414H00000

5442414H00000

Unit Price

5
CAM, BRAKE
SHAFT, BRAKE CAM

54440-14H00-000   5444014H00000

5444014H00000

Unit Price

6
LEVER, BRAKE CAM
LEVER, REAR BRAKE CAM

54451-14H00-000   5445114H00000

5445114H00000

Unit Price

7
WASHER, 10.5X18X1
WASHER

09160-10121-000   0916010121000

0916010121000

Unit Price

8
O RING D:2.4 ID:9.6

09280-10006-000  

09280-10013-000
 0928010006000

Unit Price

9
08310-0005A

08310-0005A-000  

083100005A000
Not available
10
BOLT<br />BOLT, BRAKE CAM LEVER
BOLT
BOLT, BRAKE CAM LEVER

01550-0525A-000   015500525A000

015500525A000

Unit Price

11
AXLE, RR
AXLE, REAR

64711-14H00-000   6471114H00000

6471114H00000

Unit Price

12
NUT
NUT

08319-3112A-000   083193112A000

083193112A000

Unit Price

13
SPACER(12.5X19X105.5)
SPACER, HUB

64731-14H00-000   6473114H00000

6473114H00000

Unit Price

14
SPACER, RR AXLE, L
SPACER, REAR AXLE LH

64751-14H00-000   6475114H00000

6475114H00000

Unit Price

15
B. BEARING 12X32X10
BEARING, REAR HUB

08133-62017-000   0813362017000

0813362017000

Unit Price

16
SEAL, OIL
SEAL, REAR HUB

09282-20008-000   0928220008000

0928220008000

Unit Price

17
SPROCKET, RR(33T-428)
SPROCKET, REAR (NT:33)

64511-14H00-000   6451114H00000

6451114H00000

Unit Price

18
BOLT,FRONT CALIPER<br />BOLT (8X28)
BOLT, FRONT CALIPER
BOLT (8X28)

09103-08359-000   0910308359000

0910308359000

Unit Price

19
ADJUSTER, CHAIN

61411-14H00-000   6141114H00000

6141114H00000

Unit Price

20
NUT

09140-06030-000   0914006030000

0914006030000

Unit Price

21
NUT
NUT

08310-0006A-000  

083100006A000
Not available
22
TIRE(2.50 10)
TIRE, REAR

55100-14H00-000   5510014H00000

5510014H00000

Unit Price

23
TUBE ASSY, WHEEL INNER

55200-14H00-000  

55200-14H01-000
 5520014H00000

Unit Price

24
PROTECTOR, INNER TUBE

55261-14H00-000   5526114H00000

5526114H00000
Not available
25
RIM, WHEEL (10X1.40)

55311-14H00-000   5531114H00000

5531114H00000

Unit Price

26
SPOKE SET, WHEEL
SPOKE SET, REAR WHEEL

55320-14H00-000   5532014H00000

5532014H00000

Unit Price

27
ROD ASSY, RR BRAKE
ROD ASSY, REAR BRAKE

43300-14H00-000   4330014H00000

4330014H00000

Unit Price

28
WASHER
WASHER

08322-0106A-000   083220106A000

083220106A000

Unit Price

29
BRK ROD ADJ SPRING<br />SPRING
BRK ROD ADJ SPRING
SPRING

09440-09004-000   0944009004000

0944009004000

Unit Price

30
BRAKE CAM LEVER PIN<br />PIN
BRAKE CAM LEVER PIN
PIN

09209-11002-000   0920911002000

0920911002000

Unit Price

31
NUT
NUT

09150-06010-000  

0915006010000
Not available
32
FR BRAKE CABLE PIN
PIN

09200-06013-000   0920006013000

0920006013000

Unit Price

33
WASHER
WASHER

08322-0106A-000   083220106A000

083220106A000

Unit Price

34
PIN<br />COTTER PIN
PIN
COTTER PIN

04111-2020A-000   041112020A000

041112020A000

Unit Price

35
NUT
NUT

08319-3108A-000   083193108A000

083193108A000

Unit Price
