ELECTRICAL

WIRING HARNESS FOR SUZUKI DR-Z 70 2012

* CATALOG PREFACE *

Item numbers

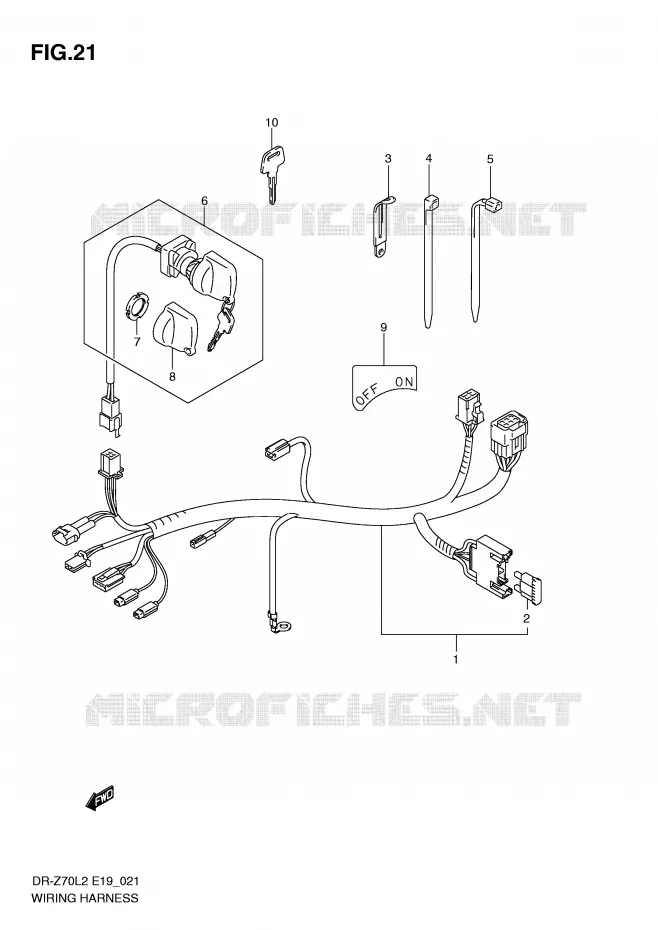

WIRING HARNESS Suzuki MOTO 70 DR-Z 2012 DR-Z70L2(E19)
1
2
3
4
5
6
7
8
9
10
10
10
10
1
HARNESS, WIRING

36610-14H00-000  

36610-14H01-000
 3661014H00000

Unit Price

2
FUSE (10A)
FUSE (10A)

09481-10101-000   0948110101000

0948110101000

Unit Price

3
CLAMP(L:65)
CLAMP(L:65)

09404-06429-000  

09404-06039-000
 0940406429000

Unit Price

4
CLAMP<br />CLAMP (L:45)
CLAMP
CLAMP (L:45)

09407-14407-000   0940714407000

0940714407000

Unit Price

5
CLAMP<br />CLAMP (L:235)
CLAMP
CLAMP (L:235)

09407-25401-000   0940725401000

0940725401000

Unit Price

6
SWITCH ASSY, IGNITION

37110-14H00-000  

37110-14H01-000
 3711014H00000

Unit Price

7
NUT, IGNITION SWITCH
NUT

37112-24500-000   3711224500000

3711224500000

Unit Price

8
MASCOT, KEY

37142-19B00-000  

37142-19B01-000
 3714219B00000

Unit Price

9
PLATE, CONTROL IDENTIFICATION

37139-09D30-000  

37139-09D31-000
 3713909D30000

Unit Price

10
KEY, BLANK (TYPE:C)

37146-09D00-000   3714609D00000

3714609D00000

Unit Price

10
KEY, BLANK (TYPE:D)

37146-09D10-000   3714609D10000

3714609D10000

Unit Price

10
KEY, BLANK (TYPE:F)

37146-09D30-000   3714609D30000

3714609D30000

Unit Price

10
DISCONTINUE
KEY, BLANK (TYPE:E)

37146-09D20-000   3714609D20000

3714609D20000
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
