CARBURETOR FOR SUZUKI DR-Z 70 2012

AIR FILTER

Item numbers

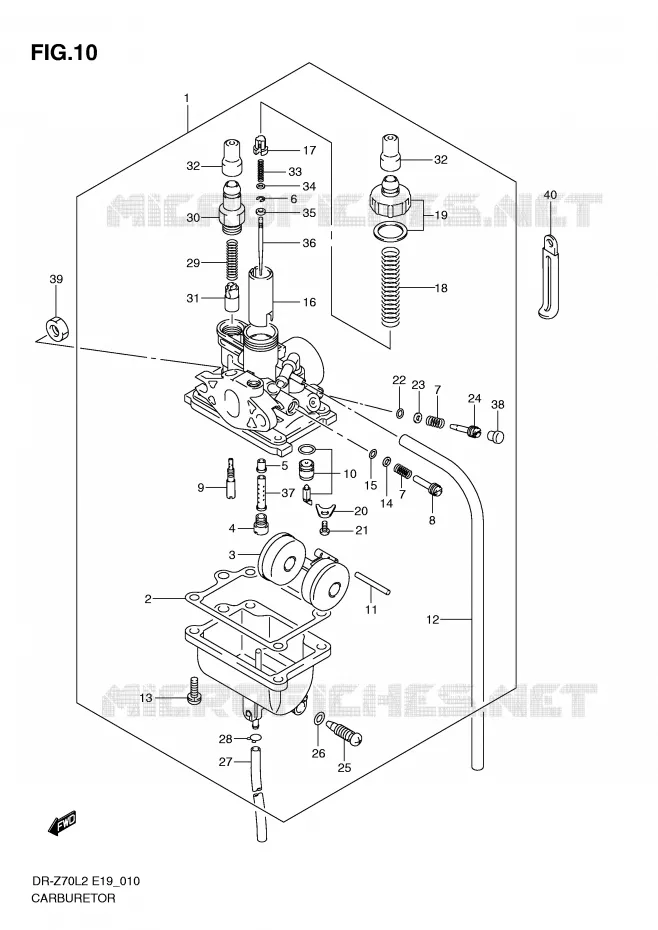

CARBURETOR Suzuki MOTO 70 DR-Z 2012 DR-Z70L2(E19)
1
2
3
4
5
6
7
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
32
33
34
35
36
37
38
39
40
1
CARBURETOR ASSY

13200-14H01-000  

13200-14H02-000
 1320014H01000

Unit Price

2
GASKET

13251-02410-000   1325102410000

1325102410000

Unit Price

3
FLOAT

13250-02500-000   1325002500000

1325002500000

Unit Price

4
JET, MAIN (57.5)
JET, MAIN (55)

09491-57005-000   0949157005000

0949157005000

Unit Price

5
JET, NEEDLE
JET, NEEDLE (E-5M)

13341-14H00-000   1334114H00000

1334114H00000

Unit Price

6
E RING

13533-98410-000   1353398410000

1353398410000

Unit Price

7
SPRING
SPRING

13268-35010-000   1326835010000

1326835010000

Unit Price

8
SCREW,THROTTLE STOP<br />SCREW
SCREW, THROTTLE STOP
SCREW

13483-16A01-000   1348316A01000

1348316A01000

Unit Price

9
JET, PILOT (17.5)

09492-17012-000   0949217012000

0949217012000

Unit Price

10
VALVE ASSY, NEEDLE

13370-36G00-000   1337036G00000

1337036G00000

Unit Price

11
PIN, FLOAT

13254-20010-000   1325420010000

1325420010000

Unit Price

12
HOSE(5X9X600)
HOSE(5X9X600)

09352-50903-600  

09352-50006-600
 0935250903600

Unit Price

13
SCREW
SCREW

13601-04148-000   1360104148000

1360104148000

Unit Price

14
WASHER
WASHER

13291-35010-000   1329135010000

1329135010000

Unit Price

15
O RING
O RING

13295-33010-000   1329533010000

1329533010000

Unit Price

16
VALVE, PISTON

13551-36G00-000   1355136G00000

1355136G00000

Unit Price

17
HOLDER

13418-12F40-000   1341812F40000

1341812F40000

Unit Price

18
SPRING

13268-36G00-000   1326836G00000

1326836G00000

Unit Price

19
CAP

13261-36G00-000   1326136G00000

1326136G00000

Unit Price

20
PLATE, NEEDLE VALVE FITTING
PLATE

13373-46710-000   1337346710000

1337346710000

Unit Price

21
SCREW
SCREW

02112-0306B-000   021120306B000

021120306B000

Unit Price

22
O RING,PILOT AIR SCREW
O RING, PILOT AIR SCREW

13295-29900-000  

13295-29901-000
 1329529900000

Unit Price

23
WASHER
WASHER

13291-29900-000   1329129900000

1329129900000

Unit Price

24
ADJUSTER
ADJUSTER (2, 0)

13269-43G00-000   1326943G00000

1326943G00000

Unit Price

25
SCREW, DRAIN
PLUG, DRAIN

13247-09G10-000   1324709G10000

1324709G10000

Unit Price

26
O RING
O RING

13278-02330-000   1327802330000

1327802330000

Unit Price

27
HOSE (7.4X3.2X135)

09355-30705-600  

09355-30001-600
 0935530705600

Unit Price

28
DISCONTINUE
CLIP

13529-98010-000   1352998010000

1352998010000
Not available
29
SPRING
SPRING

13417-37200-000   1341737200000

1341737200000

Unit Price

30
HOLDER, GUIDE
CAP, STARTER

13418-14H00-000   1341814H00000

1341814H00000

Unit Price

31
PLUNGER, STARTER

13411-22G00-000   1341122G00000

1341122G00000

Unit Price

32
CAP

13416-26F00-000   1341626F00000

1341626F00000

Unit Price

33
SPRING

13481-23F00-000   1348123F00000

1348123F00000

Unit Price

34
WASHER

13382-23F00-000   1338223F00000

1338223F00000

Unit Price

35
RING

13387-23F00-000   1338723F00000

1338723F00000

Unit Price

36
NEEDLE, JET

13383-14H00-000   1338314H00000

1338314H00000

Unit Price

37
PIPE

13385-14H10-000   1338514H10000

1338514H10000
Not available
38
PLUG
PLUG

13281-05A00-000   1328105A00000

1328105A00000

Unit Price

39
NUT
NUT

09140-06027-000   0914006027000

0914006027000

Unit Price

40
CLAMP(L:80)

09404-06433-000  

09404-06036-000
 0940406433000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
