CRANKSHAFT

STARTER MOTOR CLUTCH FOR SUZUKI DR-Z 70 2015

CAMSHAFT - VALVES

Item numbers

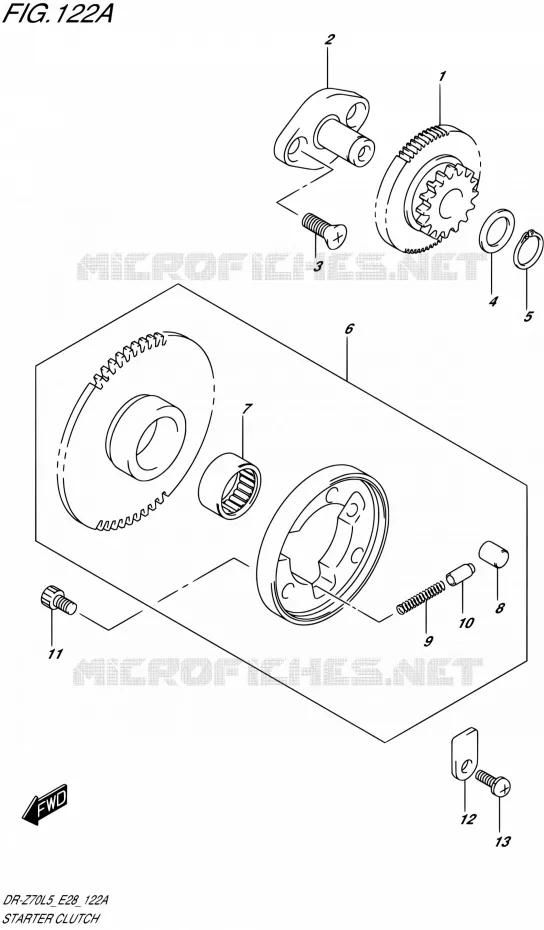

STARTER MOTOR CLUTCH Suzuki MOTO 70 DR-Z 2015 DR-Z70 L5 (E03,E28,E33)
1
2
3
4
5
6
7
8
9
10
11
12
13
1
GEAR, STARTER IDLE(NT:68/16)
GEAR, STARTER IDLE (NT:16/68)

12611-09410-000   1261109410000

1261109410000

Unit Price

2
SHAFT, STARTER IDLE GEAR

12612-23F01-000   1261223F01000

1261223F01000

Unit Price

3
SCREW

02122-0616A-000  

02122-0616B-000
 021220616A000

Unit Price

4
WASHER (13X20X1)

09160-13010-000   0916013010000

0916013010000

Unit Price

5
CIRCLIP

08331-31139-000  

08331-31138-000
 0833131139000

Unit Price

6
CLUTCH SET, STARTER
CLUTCH SET, STARTER (NT:49)

12600-09855-000   1260009855000

1260009855000

Unit Price

7
.BEARING (17X25X15)

09263-17025-000   0926317025000

0926317025000

Unit Price

8
.PIN (9X10)

09261-09002-000   0926109002000

0926109002000

Unit Price

9
.SPRING

09440-03004-000   0944003004000

0944003004000

Unit Price

10
PIECE, STARTER CLUTCH PUSH
.PIECE

12633-05300-000   1263305300000

1263305300000

Unit Price

11
BOLT (6X12)
BOLT (6X12)

09106-06075-000   0910606075000

0910606075000

Unit Price

12
PLATE, STARTER CLUTCH GEAR
PLATE

12629-09410-000   1262909410000

1262909410000

Unit Price

13
SCREW
SCREW

02112-3612A-000   021123612A000

021123612A000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!

Genuine parts for Suzuki 70 DR-Z 2015
