CASING

CASING FOR SUZUKI DR-Z 70 2017

CRANKSHAFT

Item numbers

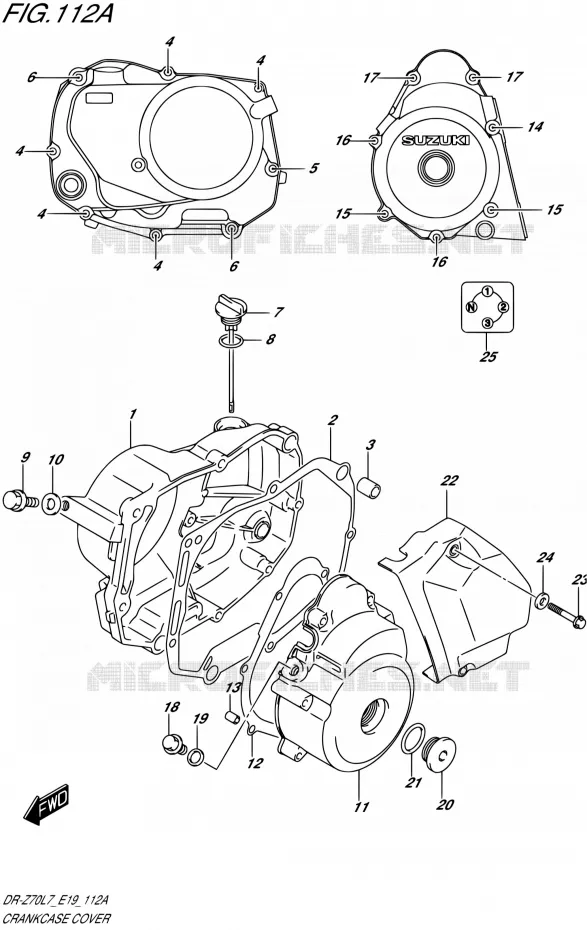

CASING Suzuki MOTO 70 DR-Z 2017 DR-Z70 L7 (E19)
1
2
3
4
4
4
4
4
5
6
6
7
8
9
10
11
12
13
14
15
15
16
16
17
17
18
19
20
21
22
23
24
25
1
COVER, CLUTCH

11341-14H00-000   1134114H00000

1134114H00000

Unit Price

2
GASKET, CLUTCH COVER

11482-09420-000   1148209420000

1148209420000

Unit Price

3
PIN
PIN

04211-13189-000   0421113189000

0421113189000

Unit Price

4
BOLT

01547-0625A-000  

01547-0625B-000
 015470625A000

Unit Price

5
BOLT

01547-0635A-000   015470635A000

015470635A000

Unit Price

6
BOLT
BOLT

01547-0650A-000   015470650A000

015470650A000

Unit Price

7
GAUGE, OIL LEVEL

11971-055A0-000   11971055A0000

11971055A0000

Unit Price

8
O RING
O RING (D:3.2, ID:15.8)

09280-16008-000   0928016008000

0928016008000

Unit Price

9
BOLT
BOLT

01550-0812A-000  

01550-0812B-000
 015500812A000

Unit Price

10
GASKET (8.2X14X1.6)
GASKET (8.2X14X1.6)

09168-08015-000   0916808015000

0916808015000

Unit Price

11
COVER, MAGNETO

11351-14H00-000   1135114H00000

1135114H00000

Unit Price

12
GASKET, MAGNETO COVER

11483-09440-000   1148309440000

1148309440000

Unit Price

13
9 X 12 DOWEL PIN<br />PIN
9 X 12 DOWEL PIN
PIN

04211-09129-000   0421109129000

0421109129000

Unit Price

14
BOLT

01547-0630A-000   015470630A000

015470630A000

Unit Price

15
BOLT
BOLT

01547-0640A-000   015470640A000

015470640A000

Unit Price

16
BOLT
BOLT

01547-0650A-000   015470650A000

015470650A000

Unit Price

17
BOLT

01547-0690A-000   015470690A000

015470690A000

Unit Price

18
PLUG
PLUG (12X10)

09247-12006-000   0924712006000

0924712006000

Unit Price

19
GASKET OIL GALLERY<br />GASKET (12.1X16.2X3.7)
GASKET OIL GALLERY
GASKET (12.1X16.2X3.7)

09168-12002-000   0916812002000

0916812002000
Not available
20
PLUG
PLUG (26X9)

09259-26011-000   0925926011000

0925926011000

Unit Price

21
O-RING,CRK HOLE PLUG<br />O RING (D:3.1,ID:22.7)
O-RING, CRK HOLE PLUG
O RING (D:3.1, ID:22.7)

09280-22008-000   0928022008000

0928022008000

Unit Price

22
COVER, ENGINE SPROCKET

11360-14H00-000   1136014H00000

1136014H00000

Unit Price

23
BOLT
BOLT

01547-0640A-000   015470640A000

015470640A000

Unit Price

24
WASHER
WASHER

08322-0106A-000   083220106A000

083220106A000

Unit Price

25
LABEL, GEAR SHIFT PATTERN

28117-14H00-000   2811714H00000

2811714H00000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
