TAIL LIGHT (E24)

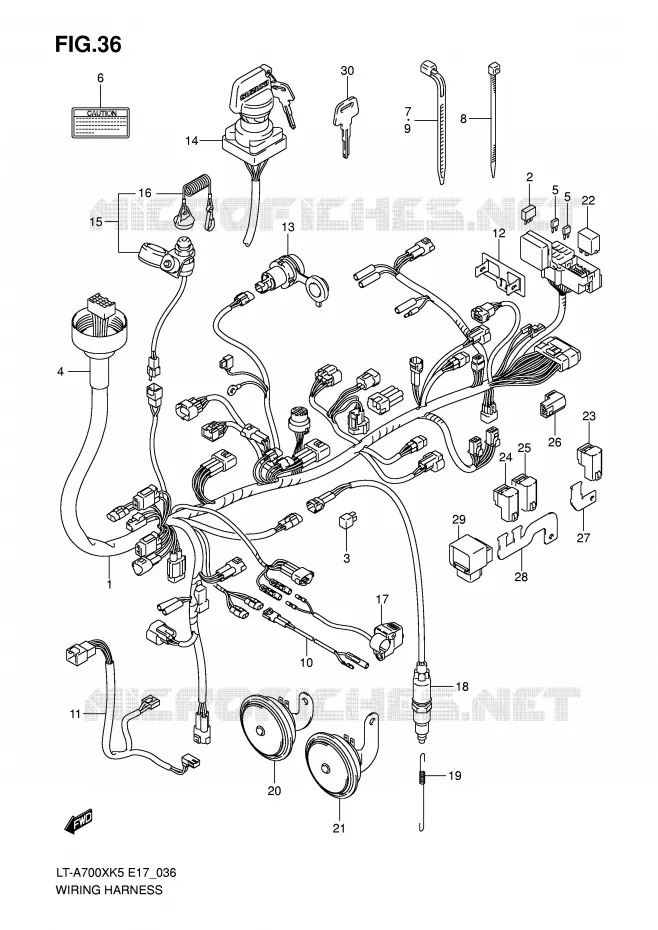

WIRING HARNESS FOR SUZUKI KINGQUAD 700 2005

* CATALOG PREFACE *

Item numbers

HARNESS, WIRING

36610-31G10-000 3661031G10000

Not available

HARNESS, WIRING

36610-31G20-000 3661031G20000

Not available

DIODE

36611-38A00-000

36611-38A10-000

$19,97

Unit Price

RECTIFIER ASSY

32800-16A00-000 3280016A00000

$27,97

Unit Price

DISCONTINUE
COVER

36618-31G00-000 3661831G00000

Not available

FUSE (15A)

09481-15501-000 0948115501000

$3,97

Unit Price

FUSE (10A)

09481-10501-000

Not available

LABEL, CAUTION MAX AMP

38852-09F30-000 3885209F30000

$10,97

Unit Price

BAND, WIRING HARNESS

09407-11401-000

09407-14403-000

$3,97

Unit Price

CLAMP, WIRING HARNESS
CLAMP (L:165)

09407-18402-000 0940718402000

$3,97

Unit Price

CLAMP
CLAMP (L:145)

09407-14407-000 0940714407000

$5,97

Unit Price

CLAMP

09407-19401-000

09407-22403-000

$3,97

Unit Price

WIRE, HORN LEAD

36852-31G00-000 3685231G00000

Not available

DISCONTINUE
WIRE, FRONT BRAKE SW LEAD

36854-03G00-000 3685403G00000

Not available

DISCONTINUE
BRACKET, FUSE

36744-31G00-000 3674431G00000

Not available

TERMINAL, POWER SOURCE

38850-03G00-000 3885003G00000

$94,97

Unit Price

SWITCH ASSY, IGNITION

37110-31G00-000

37110-31G20-000

$161,97

Unit Price

SWITCH ASSY, EMERGENCY

37820-19B00-000 3782019B00000

Not available

WIRE, EMERGENCY SWITCH

37825-24500-000 3782524500000

Not available

SWITCH ASSY, HORN

37830-18A00-000

37830-27H00-000

$48,97

Unit Price

SWITCH ASSY, STOP LAMP

37740-38F00-000

37740-38F01-000

$109,97

Unit Price

SPRING
SPRING, STOP LAMP

09443-06080-000 0944306080000

$10,97

Unit Price

HORN ASSY

38500-31G00-000 3850031G00000

Not available

HORN ASSY

38500-31G10-000 3850031G10000

Not available

RELAY, NEUTRAL START

38730-09F00-000 3873009F00000

$44,97

Unit Price

RELAY ASSY, SIDE STAND

38740-26E00-000

38740-26E01-000

$37,97

Unit Price

RELAY ASSY, SIDE STAND

38740-26E00-000

38740-26E01-000

$37,97

Unit Price

RELAY ASSY, SIDE STAND

38740-26E00-000

38740-26E01-000

$37,97

Unit Price

RELAY ASSY, DEF LOCK

38740-31G00-000

38740-31G02-000

$57,97

Unit Price

BRACKET, SIDE STAND RELAY
BRACKET, BACK UP LAMP RELAY

38741-05300-000 3874105300000

$8,97

Unit Price

DISCONTINUE
BRACKET, RELAY

38741-31G00-000 3874131G00000

Not available

RELAY ASSY, DRIVE

38750-31G00-000 3875031G00000

$160,97

Unit Price

KEY, BLANK(TYPE:C)
KEY, BLANK TYPE (C)

37146-19B00-000 3714619B00000

$12,97

Unit Price

KEY, BLANK(TYPE:D)
KEY, BLANK TYPE (D)

37146-19B10-000 3714619B10000

$12,97

Unit Price

KEY, BLANK(TYPE:E)
KEY, BLANK TYPE (E)

37146-19B20-000 3714619B20000

$12,97

Unit Price

KEY, BLANK(TYPE:F)
KEY, BLANK TYPE (F)

37146-19B30-000 3714619B30000

$12,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the WIRING HARNESS of your Suzuki of KINGQUAD. Let us know if you have any questions.
